121 Key Industrial Membrane Keyboard with laser trackball panel mount keyboard with numeric keys

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 121 Key Industrial Membrane Keyboard with laser trackball panel mount keyboard with numeric keys from wholesalers

    Buy cheap 121 Key Industrial Membrane Keyboard with laser trackball panel mount keyboard with numeric keys from wholesalers
    • Buy cheap 121 Key Industrial Membrane Keyboard with laser trackball panel mount keyboard with numeric keys from wholesalers

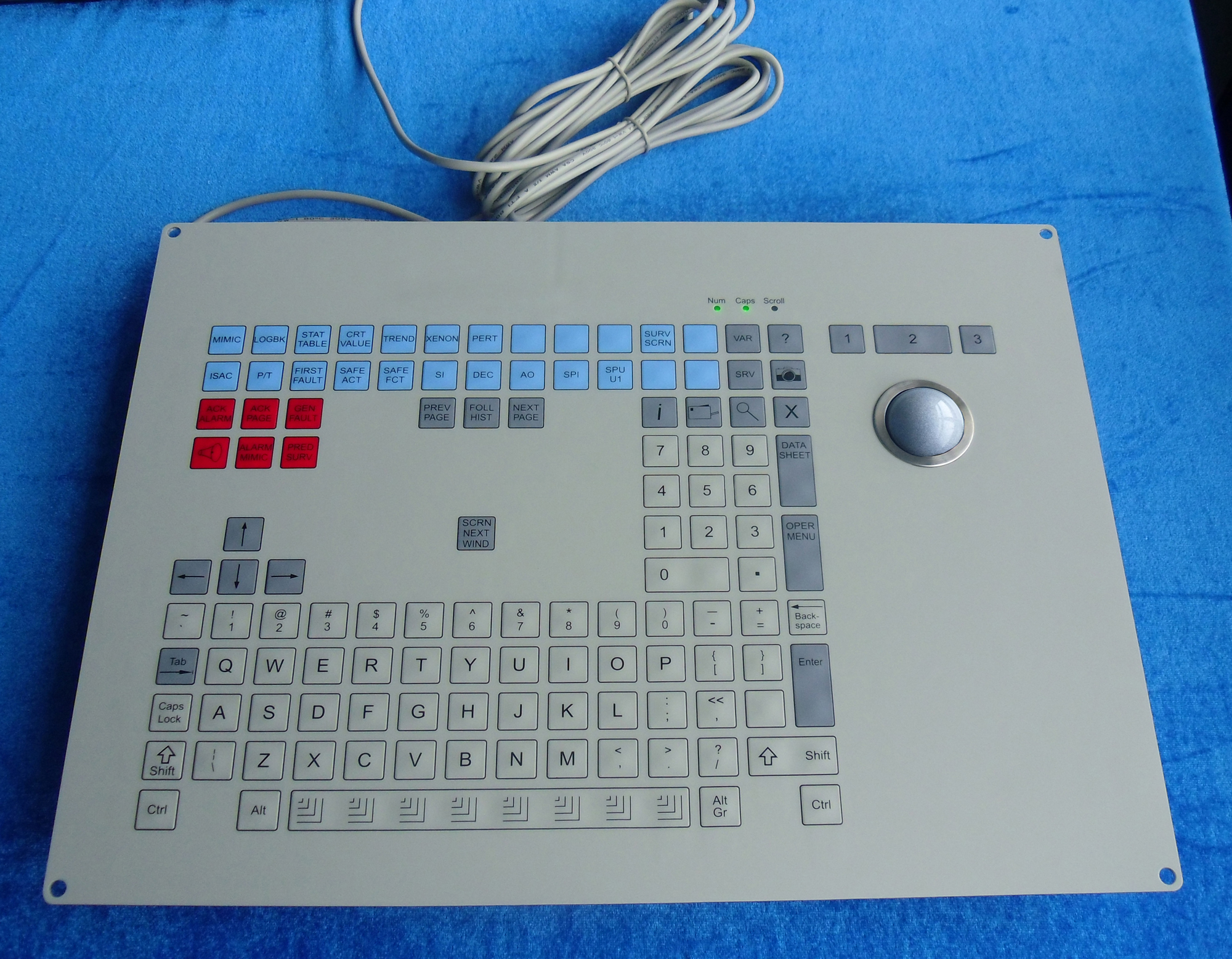

    121 Key Industrial Membrane Keyboard with laser trackball panel mount keyboard with numeric keys

    Ask Lasest Price
    Model Number : K-TEK-D418-LTB-KP
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    • Product Details
    • Company Profile

    121 Key Industrial Membrane Keyboard with laser trackball panel mount keyboard with numeric keys


    Scratch Proof 121 Key Industrial Membrane Keyboard Water Proof with laser trackball


    MECHANICAL DATA:


    MECHANICAL DATA
    Key121
    Key switch Technologymetal dome PCB with gold-on-gold metal dome key switch technology
    Actuation Force:1.0N for key 13.0mm x 13.0mm (press point)
    Key travel0.45mm
    Key switch Lifetime3 mil. operations
    Protection LevelIP65, NEMA 4x
    Mounting TypeTop panel mounting or Desk Top
    Operating Temperature-20 °C to +50 °C
    Colors4 (Blue, white, grey, black)
    G.W.1.50KGs
    Key Dimensions
    (print area)
    13.0mm x 13.0mm
    Dimensions418.5mm x 310.0mm (top panel)
    Layout:

    any customized layout is available

    Application:

    industrial / military


    TRACKBALL:


    38mm stainless steel ball or hardened resin ball.
    Resolution: 1200DPI
    Lifetime: more than 10 million cycle
    Power supply voltage: 5 V DC ±0.25V
    Current rating (active mode): 100mA
    ELECTRICAL DATA:
    Supply Voltage: +5V DC +/- 5%
    Current Rating: appr. 120mA
    EMC Standard: It is compliance with the council IEC 61000-4-2:2008;

    IEC 61000-4-3:2006+AI: 2007+A2:2010;IEC 61000-4-4:2004
    EMI: EN 55022: 2010
    EMS: EN 55024:2010
    Lifespan> 3 years
    Interface: PS2, USB available.
    OS: All windows, Linux, Unit, Mac OSX
