    Robust polycarbonate cased washable membrane keyboard with numeric keypad

    Ask Lasest Price
    Model Number : K-TEK-D399KP-FN-DT
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    • Product Details
    • Company Profile

    Robust polycarbonate cased washable membrane keyboard with numeric keypad


    Robust polycarbonate cased washable membrane keyboard with numeric keypad


    107 keys compact format IP68 dynamic rated washable membrane industrial keyboard with i

    ntegrated numeric keypad and function keys FN (F1,F2 F3 ... F11, F12) on the upper line,

    2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology

    with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with CLEAN key

    for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC,

    surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to

    most chemicals and liquids under the harshest environments, ruggedized and backed with 2.0mm

    alumium plate, mountable movable desk top version with robust polycarbonate case.

    Dimensions: 396.0mm x 150.0mm x 27.0mm


    APPLICATIONS:

    • This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.
    • lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
    • MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
    • MILITARY: Army, Navy, Air force
    • NDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses etc
    • OTHER INDUSTRIES

    MECHANICAL DATA:


    Number of Keys

    106

    Key switch Technology

    metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys

    Actuation Force

    1.0N for key 13.0mm x 13.0mm (press point)

    Key Travel

    0.45mm

    Key switch Lifetime

    3 mil. operations

    Protection Level

    IP68, NEMA 4x

    Mounting Type

    stand alone desk top .

    Operating Temperature

    -20 °C to +50 °C;

    Colors

    4 (Blue, white, grey, black)

    G.W.

    1.20KGs

    Key Dimensions (print area):

    13.0mm x 13.0mm


    ELECTRICAL DATA:

    • Supply Voltage: +5V DC +/- 5%
    • Current Rating: appr. 20mA
    • EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
    • EMI: EN 55022: 2010
    • EMS: EN 55024:2010
    • Lifespan> 3 years
    • Interface: PS2, USB available.
    • OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).


    RELIABILITY:

    • RoHS , CE, FCC, ESD
    • Protection Level: IP68
    • Key Lifespan >3 million actuations
    • MTBF >50000H
    • MTTR <30min

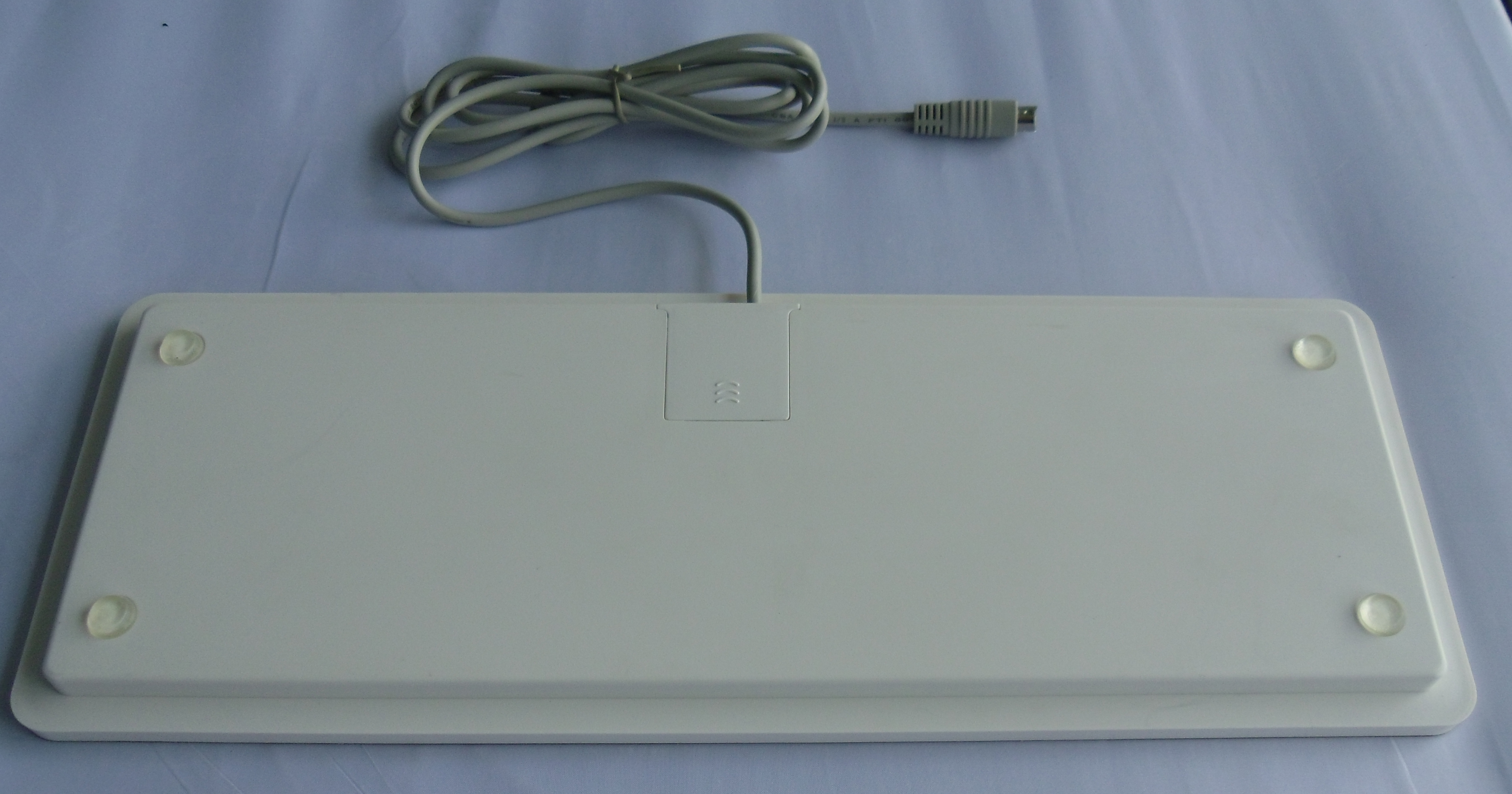

    Actual pictures:
