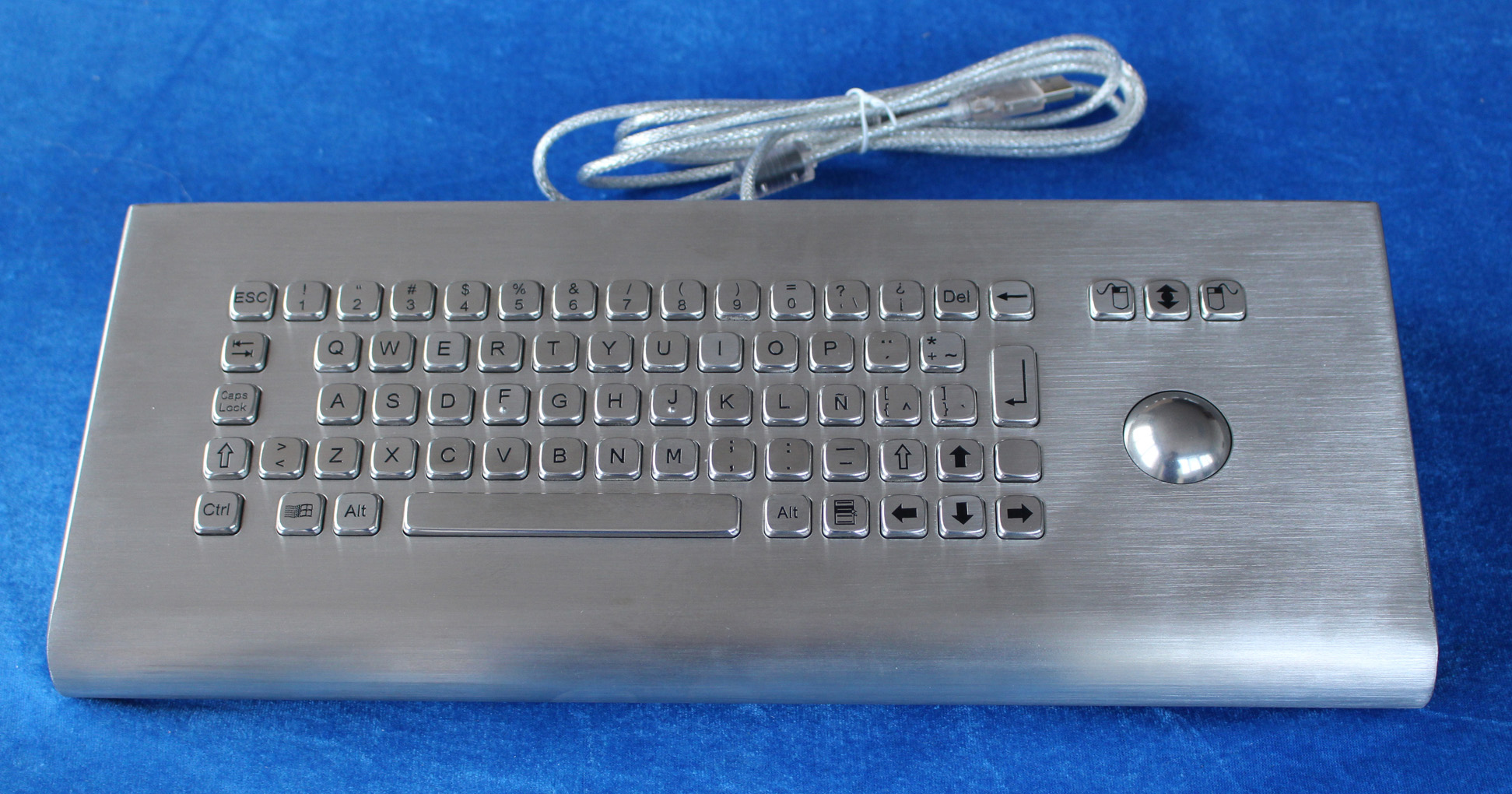

    IP65 vandal proof metal wall-mounted kiosk keyboard with optical trackball

    Ask Lasest Price
    Model Number : K-TEK-A343-OTB-MDT
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    • Product Details
    • Company Profile

    IP65 vandal proof metal wall-mounted kiosk keyboard with optical trackball


    IP65 vandal proof metal wall-mounted kiosk keyboard with optical trackball


    MODEL NO.: K-TEK-A343-OTB-MDT


    1.69 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard


    2.with IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate cursor position


    3.industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise


    4.3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, keyboard can be hinged down for wall mounting, Mountable DESK TOP VERSION.


    5.IP68 dynamic trackball module with direct drain pipe is optional, no rust risk and anti-salt spray corrosion.


    DIMENSIONS: 403.0mm x 165.0mm x 37.0mm (L x W x H)


    MECHANICAL DATA:

    Actuator/keys69 keys, super quality SUS304 brushed stainless steel
    Key top styleProtuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar
    Key travel2.0mm
    Actuation Force0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
    Switch lifemore than 10 million of operations
    Stainless Steel Housingfull 1.2mm thickness super quality brushed stainless steel
    Tracker ball38.1mm (1.5’) diameter, IP65 static 400DPI mechanical trackball, IP68 dynamic washable 800DPI optical trackball
    G.W.3.0KGs
    Dimensions403.0mm x 165.0mm x 37.0mm (L x W x H)

    ELECTRICAL DATA

    • Supply Voltage: +5V DC +/-5%
    • Current Rating: appr. 30mA (non-backlight)
    • EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
    • EMI: EN 55022: 2010
    • EMS: EN 55024:2010
    • Lifespan > 5 years
    • Switch Contact Material: Carbon-on-Gold key switch technology PCB.
    • Interface: PS2, USB available
    • OS: All windows, Linux, Unix, Mac OSX

    ENVIRONMENTAL ADAPTABILITY

    · Operating temperature:-20oC to +60oC

    · Storage temperature: -30oC to +70oC

    · Operating RH: 30-90%

    · Atmospheric pressure: 60-106Kpa.

    · Saline mist: 96 hours, IEC 60512-6

    · Damp heat test at + 40oC: 21 days, IEC 60512-6

    · Dry heat test at + 85oC: 10 days, IEC 60512-6



    Quality IP65 vandal proof metal wall-mounted kiosk keyboard with optical trackball for sale
