    Backlight sealed & ruggedized Industrial Keyboard With Touchpad RoHS CE FCC IP65

    Ask Lasest Price
    Model Number : K-TEK-M380TP-BL
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    • Product Details
    • Company Profile

    Backlight sealed & ruggedized Industrial Keyboard With Touchpad RoHS CE FCC IP65

    RoHS CE FCC IP65 Industrial backlight dustproof keyboard with touchpad


    Special Features:

    1. Certifications: CE, FCC, RoHS, IP65, ESD


    2. Adjustable industrial red backlight with 4 brighness level.


    3. IP65 dynamic sealed & ruggedized tough touchpad for fast and accurate cursor position


    4. High quality durable black titanium electroplated on the top stainless steel plate included


    5. Key-tops are laser-etched or high quality ink print in legends and characters for easy readability,

    long life to prevent lettering rub-off.


    6. Ease of customizing with multiple languages, to accommodate foreign or custom variants.


    7. PS/2, USB connection works as " it plugs and plays"

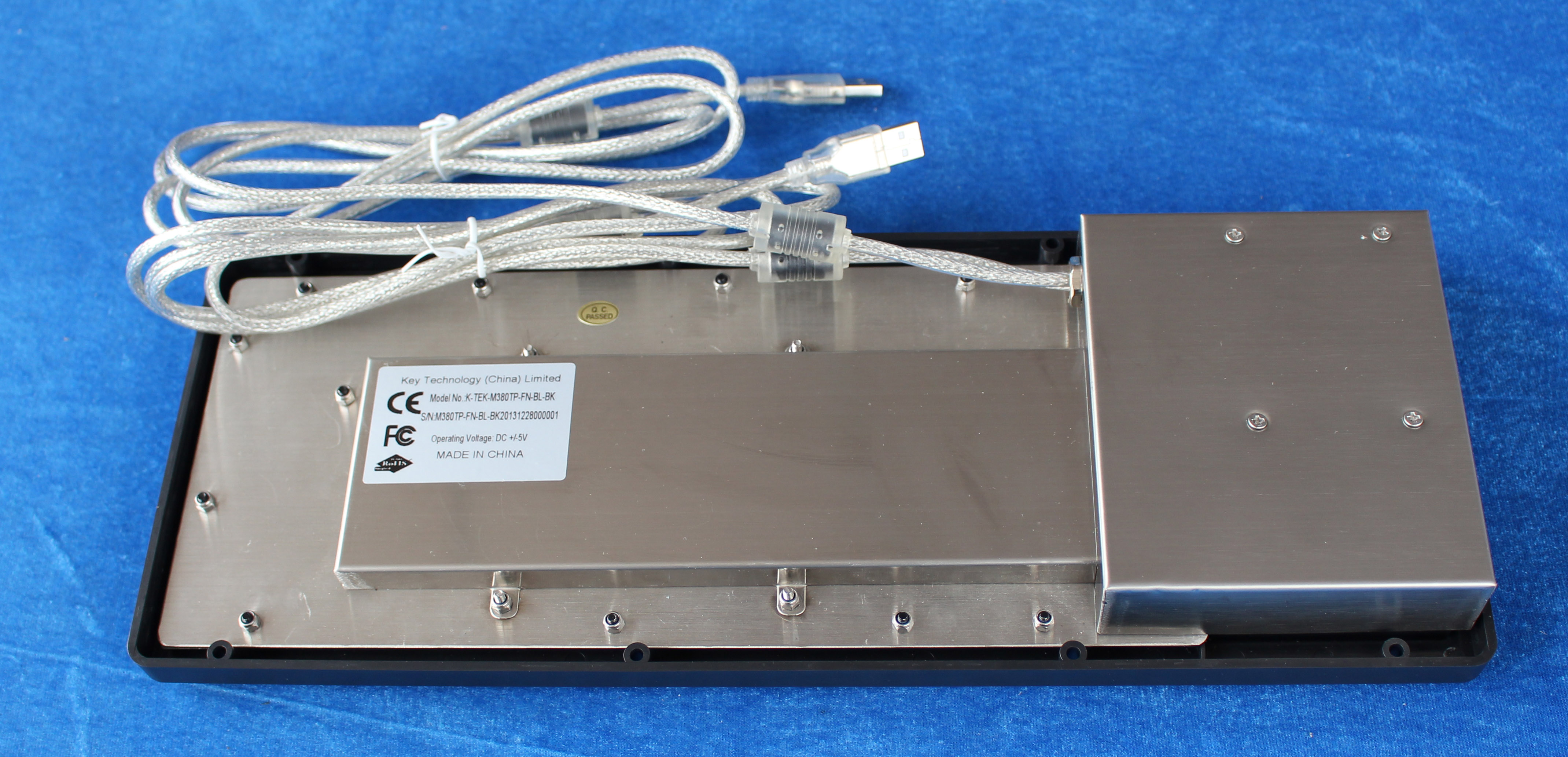

    8. Rear panel mounting version.


    Specifications:


    MECHANICAL DATA

    Key

    71 keys

    Key top style

    Protuberant rectangular keys.

    Actuator/keys materials

    polymer

    Top SS plate

    1.5mm stainless steel plate with super quality durable Black Titanium Electroplated

    Back SS plate

    1.5mm stainless steel plate

    Robust polycarbonate frame

    Between top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics controller, with mounting holes along the keyboard mounting edge for fixing keyboard with rear panel mounting.

    Key Size

    11.4mm x 11.4mm for normal keys,
    11.4mm x 24.3mm for enter key,
    11.4mm x 71.8mm for space bar.

    Key travel

    1.50mm

    Switch life

    more than 10 million of operations.

    Lettering

    laser-etched or high quality ink print.

    G.W.

    1.60KGs

    Dimensions

    380.0mm x 108.0mm ( L x W )

    Touchpad cover

    Composite

    Lifetime

    More than 10 million strokes Mutual Capacitance sensing

    X/Y position sensing resolution

    40 counts/mm

    X/Y position reporting

    Relative

    Output(self-detectable depending on cable)

    PS2 or USB

    Tracking speed

    Maximum 1,016 m/sec

    Power supply voltage

    5 VDC ±0.25V

    Current rating (active mode)

    17 mA

    Switch life

    more than 10 million of operations


    ELECTRICAL DATA

    Supply Voltage

    +5V DC +/-5%

    Current Rating

    30mA for keyboard and touchpad without backlight.
    130mA for keyboard with backlight on.


    EMC Standard:

    It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004

    EMI:

    EN 55022: 2010

    EMS:

    EN 55024:2010

    Lifespan

    > 5 years

    Switch Contact Material:

    Carbon-on-Gold key switch technology PCB.

    OS:

    All windows, Linux, Unix, Mac OSX
