    Stainless steel vandal - proof panel mount Industrial Mini Keyboard / metallic keyboard

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A330TP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

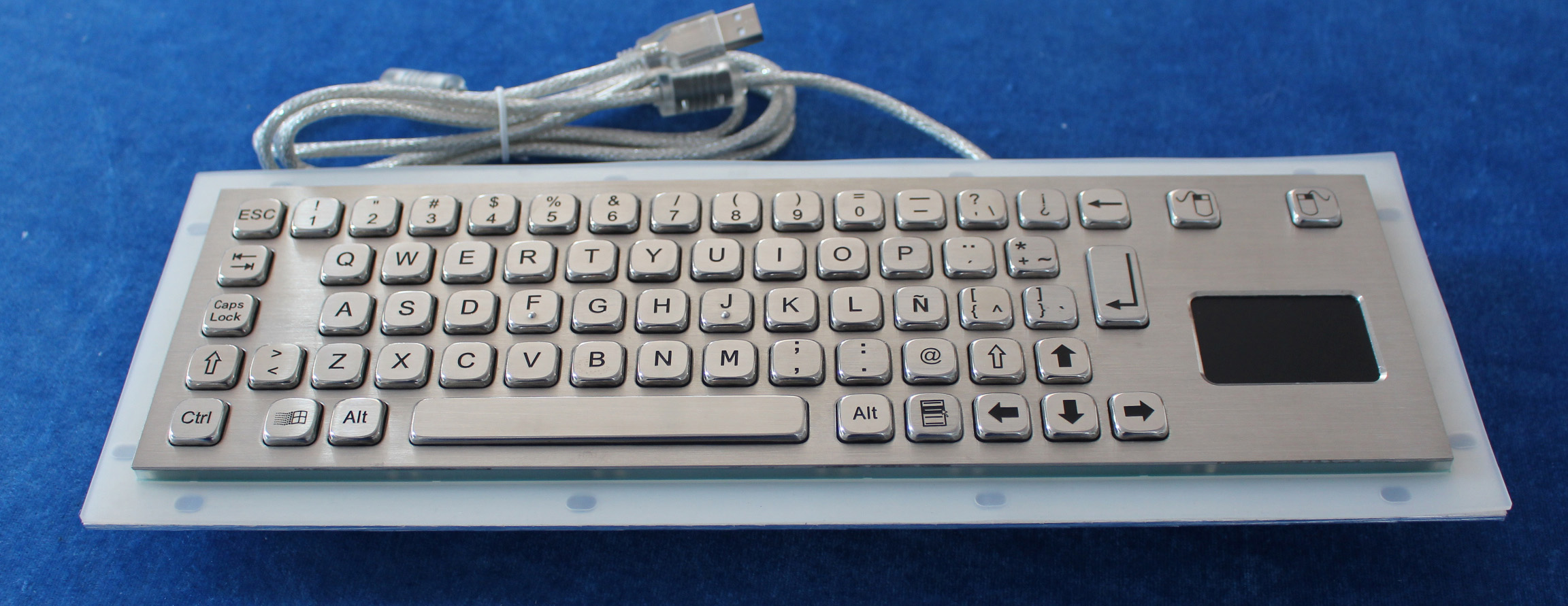

    Stainless steel vandal - proof panel mount Industrial Mini Keyboard / metallic keyboard


    Mini size 67key IP65 industrial keyboard with tough and sealed touchpad


    DESCRIPTION:


    67 keys compact format IP65 static vandal proof stainless steel industrial keyboard with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position, one compete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet,industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, rear panel mounting solution.


    ELECTRICAL DATA


    Supply Voltage: +5V DC +/-5%

    Current Rating: appr. 30mA

    EMC Standard: It is compliance with the council IEC 61000-4-2:2008;

    IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004

    EMI: EN 55022: 2010

    EMS: EN 55024:2010

    Lifespan > 5 years

    Switch Contact Material: Carbon-on-Gold key switch technology PCB.

    Interface: PS2, USB available,

    OS: All windows, Linux, Unix, Mac OSX


    MECHANICAL DATA

    · Actuator/keys: 67 keys, super quality SUS304 brushed stainless steel

    · Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

    · Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.

    · Key travel: 2.0mm

    · Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

    · Switch life: more than 10 million of operations.

    · Front Plate: 1.5mm thickness super quality brushed stainless steel

    · Back Plate:3.0mm thickness brushed & oxidized aluminium

    · Touchpad: sealed and ruggedized tough touchpad.

    Touchpad cover: Composite
    More than Lifetime 10 million strokes
    Mutual Capacitance sensing
    X/Y position sensing resolution: 40 counts/mm
    X/Y position reporting: Relative
    Output (self-detectable depending on cable): PS2 or USB
    Tracking speed: Maximum 1,016 m/sec
    Power supply voltage: 5 VDC ±0.25V
    Current rating (active mode): 17 mA

    · G.W.: 1.40KGs

    · Dimensions: 343.0mm x 105.0mm (front panel) , 367.0mm x 129.0mm (back panel)

    ELECTRICAL DATA

    · Supply Voltage: +5V DC +/-5%

    · Current Rating: appr. 30mA

    · EMC Standard: It is compliance with the council IEC 61000-4-2:2008;

    · IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004

    · EMI: EN 55022: 2010

    · EMS: EN 55024:2010

    · Lifespan > 5 years

    · Switch Contact Material: Carbon-on-Gold key switch technology PCB.

    · Interface: PS2, USB available,

    · OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

    ENVIRONMENTAL ADAPTABILITY

    · Operating temperature:-20oC to +60oC

    · Storage temperature: -30oC to +70oC

    · Operating RH: 30-90%

    · Atmospheric pressure: 60-106Kpa.

    · Saline mist: 96 hours, IEC 60512-6

    · Damp heat test at + 40oC: 21 days, IEC 60512-6

    · Dry heat test at + 85oC: 10 days, IEC 60512-6


    RELIABILITY

    · RoHS Compliant, CE and FCC, ESD

    · Protection Level: IP65(front panel)

    · Vandal resistant IK09

    · Key Lifespan >10 million actuations

    · MTBF >50000H

    · MTTR <30min
