    Customizable Long Stroke Industrial Keyboard With Touchpad , Mounting Holes

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A392TP-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Customizable Long Stroke Industrial Keyboard With Touchpad , Mounting Holes

    Descriptions:

    74 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional)for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise. one complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, rear panel mounting solution with mounting holes. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt

    MECHANICAL DATA
    Actuator/keys: 68 keys, super quality SUS304 brushed stainless steel
    Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
    Key travel: 2.0mm
    Actuation Force: 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm(pressure point)
    Switch life: more than 5 million of operations.
    Front Plate: 1.5mm thickness super quality brushed stainless steel

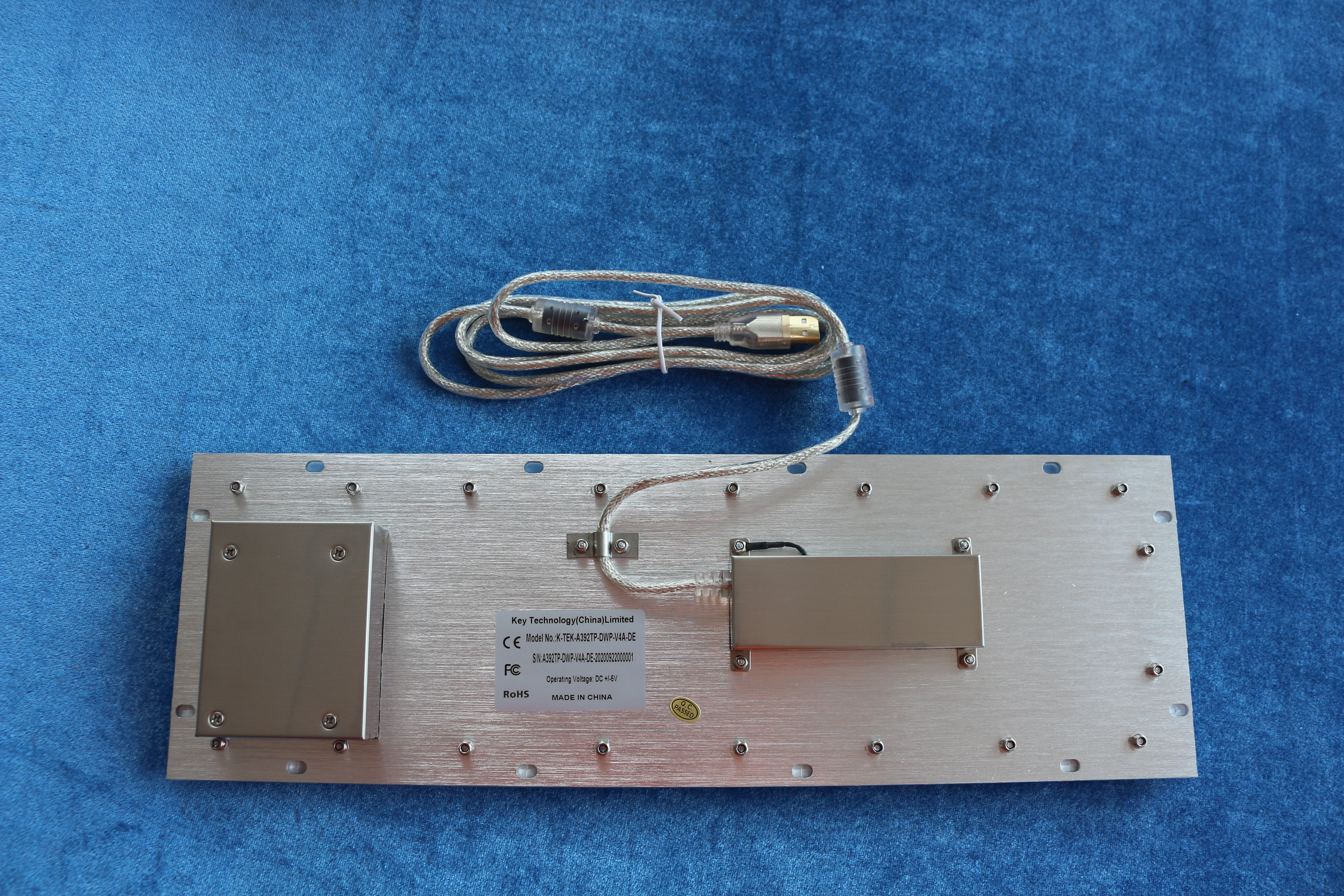

    Back Plate:3.0mm thickness brushed & oxidized aluminium
    Touchpad: sealed and ruggedized tough touchpad.
    Touchpad cover: Composite
    More than Lifetime 10 million strokes
    Mutual Capacitance sensingX/Y position sensing resolution: 40 counts/mm
    X/Y position reporting: Relative
    Output (self-detectable depending on cable): PS2 or USB
    Tracking speed: Maximum 1,016 m/sec
    Power supply voltage: 5 VDC ±0.25V
    Current rating (active mode): 17 mA
    G.W.: 1.80KGs
    Dimensions:392.0mm x 110.0mm (front panel) , 416.0mm x 134.0mm (back panel)
    ELECTRICAL DATA
    Supply Voltage: +5V DC +/-5%
    Current Rating: appr. 50mA
    EMC Standard: EN 55032:2015, EN 55035:2017
    Lifespan > 5 years
    Switch Contact Material: Carbon-on-Gold key switch technology PCB.
    Interface: PS2, USB available,
    OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-20oC to +60oC
    Storage temperature: -30oC to +70oC
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.
    Saline mist: 96 hours, IEC 60512-6
    Damp heat test at + 40oC: 21 days, IEC 60512-6
    Dry heat test at + 85oC: 10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP67
    Vandal resistant IK08
    Key Lifespan >5 million actuations
    MTBF >20000H
    MTTR <30min
