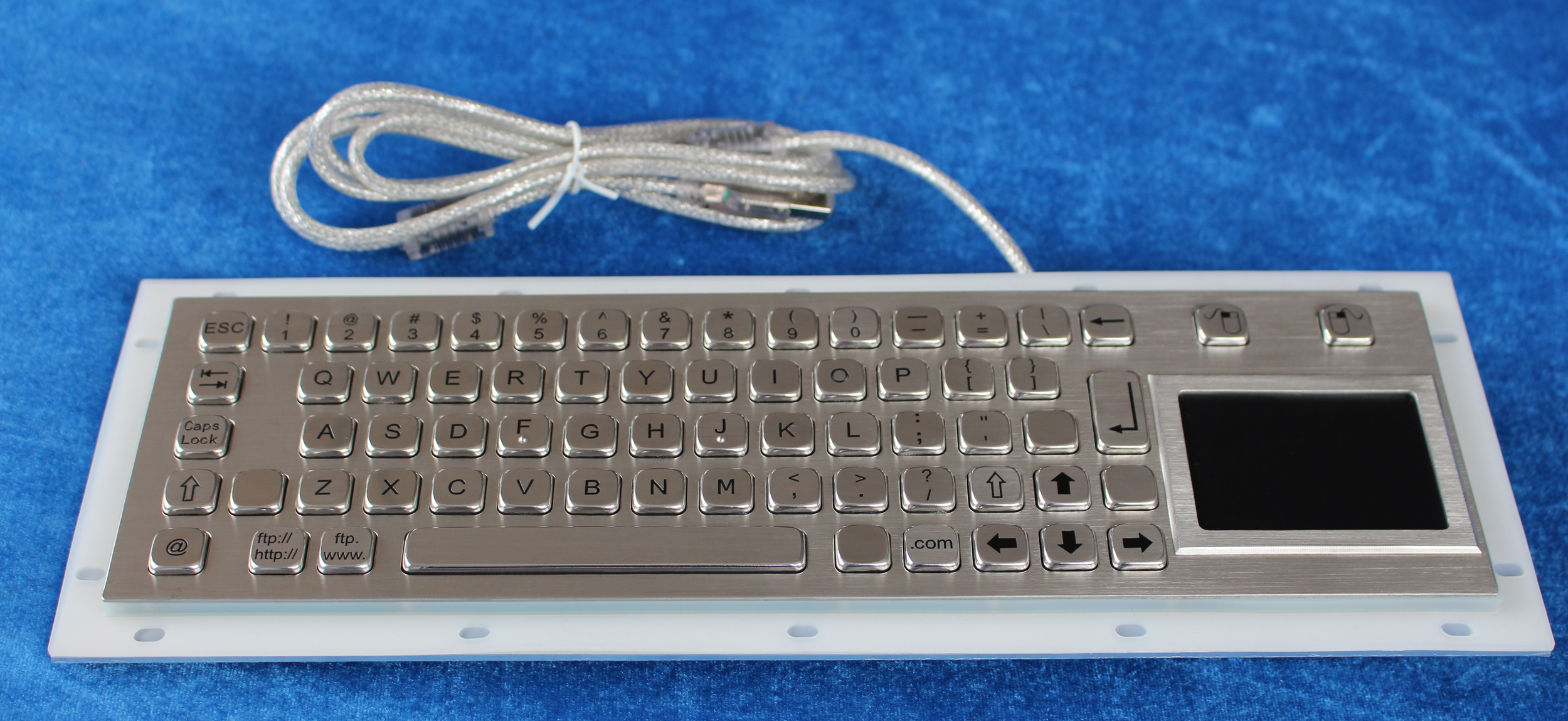

    IP65 Stainless Steel USB kiosk Keyboard With Touchpad with any customized layout

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A343TP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    IP65 Stainless Steel USB kiosk Keyboard With Touchpad with any customized layout


    IP65 Stainless Steel USB kiosk Keyboard With Touchpad with any customized layout


    DESCRIPTION: 68 keys compact format IP65 static vandal proof stainless steel industrial keyboard with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position, one compete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet,industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, rear panel mounting solution.


    MAIN FEATURE:

    • Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
    • Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
    • Waterproof execution according to IP65 protection from top panel, rear aluminium plate with mounting holes easily & tightly mounting to enclosure or panel.
    • An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
    • Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
    • Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
    • Ease of customizing with multiple languages, to accommodate foreign or custom variants.
    • Complete electronic modules including controller in close consultation with our customers are available.
    • PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.

    ELECTRICAL DATA:

    Supply Voltage+5V DC +/-5%
    Current Ratingappr. 30mA
    EMC StandardIt is compliance with the council IEC 61000-4-2:2008
    EMIEN 55022: 2010
    EMSEN 55024:2010
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology PCB
    InterfacePS2, USB available
    OSAll windows, Linux, Unix, Mac OSX

    ENVIRONMENTAL ADAPTABILITY:

    • Operating temperature:-20oC to +60oC
    • Storage temperature: -30oC to +70oC
    • Operating RH: 30-90%
    • Atmospheric pressure: 60-106Kpa.
    • Saline mist: 96 hours, IEC 60512-6
    • Damp heat test at + 40oC: 21 days, IEC 60512-6
    • Dry heat test at + 85oC: 10 days, IEC 60512-6

    RELIABILITY:

    • RoHS Compliant, CE and FCC, ESD
    • Protection Level: IP65(front panel)
    • Vandal resistant IK09
    • Key Lifespan >10 million actuations
    • MTBF >50000H
    • MTTR <30min

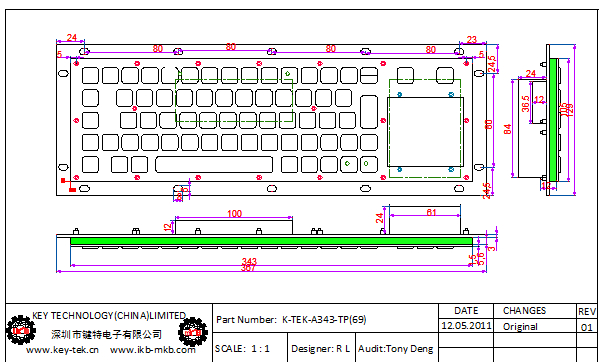

    Mechanical Drawing:

    IP65 vandal proof industrial stainless steel keyboard with tough touchpad
