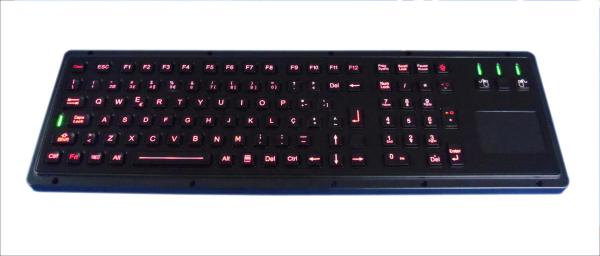

    Illuminated USB Industrial Keyboard With Touchpad

    Ask Lasest Price
    Model Number : K-TEK-M460TP-KP-FN-BL-BT
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    • Product Details
    • Company Profile

    Illuminated USB Industrial Keyboard With Touchpad

    106 keys Illuminated USB Keyboard integrated Programmable with touchpad


    Special Features:


    1. IP65 dynamic tough keyboards with touchpad and numeric keypad and FN keys
    2. Key stroke 1.50mm for fast and accurate input without any noise
    3. Red clean key lock/disable the keyboard for easy cleaning and washing
    4. high quality durable black titanium electroplated on the top stainless steel plate
    5. Adjustable industrial blacklight included
    6. Rear panel mounted.
    7. Vandal-proof, against corrosion, weather-proof under hostile environments.
    8. Waterproof execution according to degree of protection IP65 from the panel
    9. Ease of customizing with multiple languages.


    Specifications:


    MECHANICAL DATA

    Key

    106 keys

    Key top style

    Protuberant rectangular keys.

    Actuator/keys materials

    polymer

    Front panel

    stainless steel plate with super quality durable Black Titanium Electroplated

    Robust polycarbonate frame

    Between top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics controller, with mounting holes along the keyboard mounting edge for fixing keyboard with rear panel mounting.

    Key Size

    11.4mm x 11.4mm for normal keys,
    11.4mm x 24.3mm for enter key,
    11.4mm x 71.8mm for space bar.

    Switch life

    more than 10 million of operations.

    G.W.

    2.2 0KGs

    Dimensions

    460.0mm x 129.5mm ( L x W )

    Touchpad cover

    Composite

    Lifetime

    More than 10 million strokes Mutual Capacitance sensing

    X/Y position sensing resolution

    40 counts/mm

    X/Y position reporting

    Relative

    Tracking speed

    Maximum 1,016 m/sec

    Power supply voltage

    5 VDC ±0.25V

    Current rating (active mode)

    17 mA

    Switch life

    more than 10 million of operations


    ENVIRONMENTAL ADAPTABILITY

    Operating temperature

    -20oC to +60oC

    Storage temperature

    -30oC to +70oC

    Operating RH

    100%

    Atmospheric pressure

    60-106Kpa

    Saline mist

    96 hours, IEC 60512-6

    Damp heat test at + 40oC

    21 days, IEC 60512-6

    Dry heat test at + 85oC

    10 days, IEC 60512-6
