    IP65 Kiosk Metal Rugged Keyboard With Touchpad And Number Keypad Vandal Proof keyboard

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A400TP-KP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

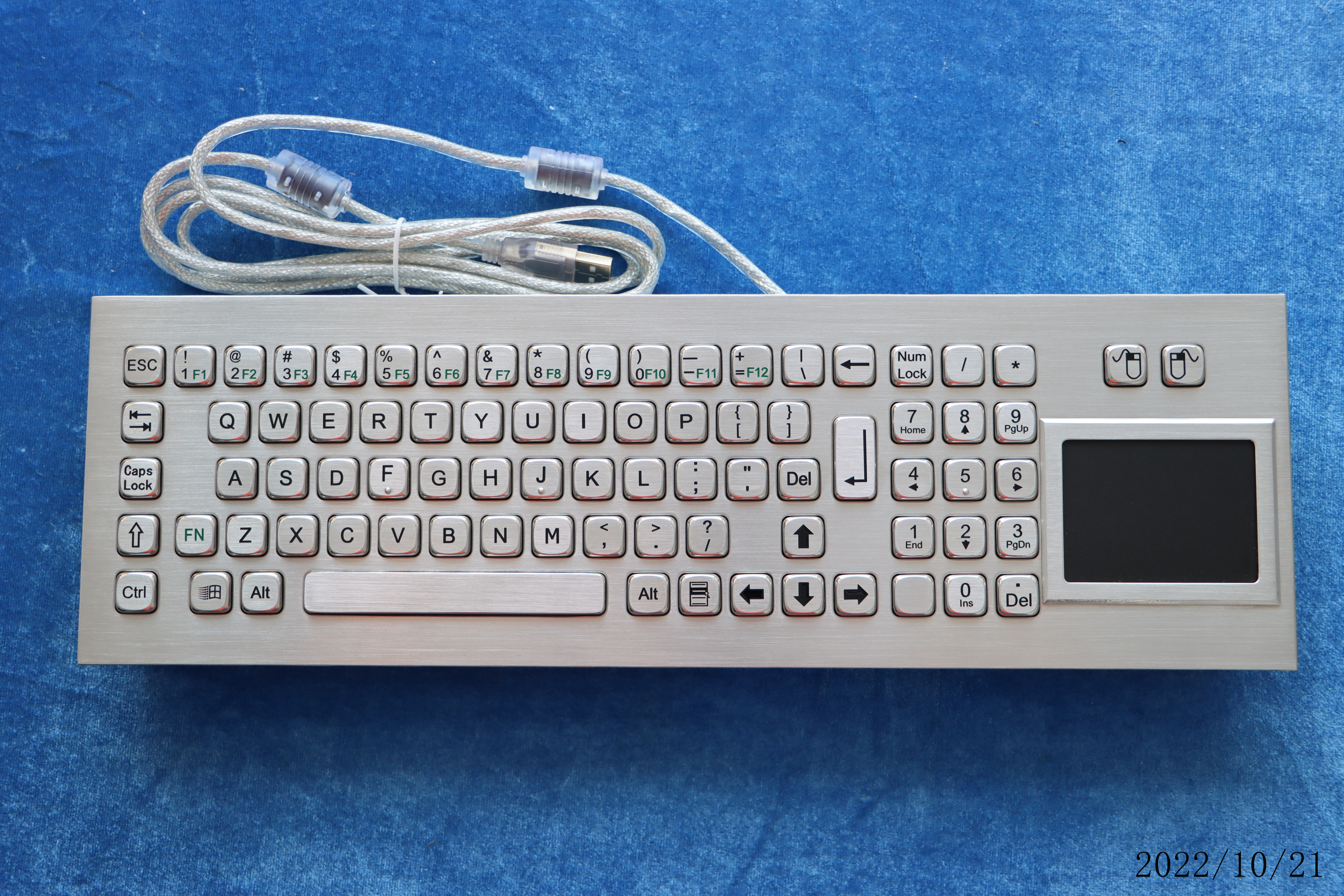

    IP65 Kiosk Metal Rugged Keyboard With Touchpad And Number Keypad Vandal Proof keyboard


    IP65 Rugged Kiosk Metal Industrial Keyboard With Touchpad And Number Keypad


    DESCRIPTION: 81 Keys Compact Format IP65 static Vandal Proof Stainless Steel industrial Keyboard with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with extremely good tactile feeling and long stroke (1.5mm±0.1mm) for fast and accurate data input, with numeric keypad, top panel mounting solution.

    DIMENSIONS: 400.0mm x 124.0mm (top panel)


    MECHANICAL DATA
    Actuator/keys81 keys (including 2 mouse buttons)
    Key top styleProtuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
    Key travel1.50±0.10mm
    Actuation Force3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
    Switch lifemore than 5 million of operations
    Touch padsealed and ruggedized tough touchpad
    Touchpad coverComposite
    More than Lifetime 10 million strokes
    Mutual capacitance sensing
    X/Y axis location detection resolution40 Counts /mm
    X/Y position reportrelative
    Output (self-detectable depending on cable)PS2 or USB
    Tracking speedMaximum 1,016 m/sec
    Power supply voltage5VDC ± 0.25V
    Current rating (active mode)< 10 mA
    G.W.1.80KGs
    ELECTRICAL DATA
    Supply Voltage+5V DC ± 5%
    Current Rating50mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology PCB
    InterfacePS2, USB available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH30-90%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP65
    Vandal resistantIK08
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSIndustrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
