    Black dustproof industrial backlit illuminated keyboard with touchpad RoHS CE

    Ask Lasest Price
    Model Number : K-TEK-M380TP-FN-BL-BT
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    • Product Details
    • Company Profile

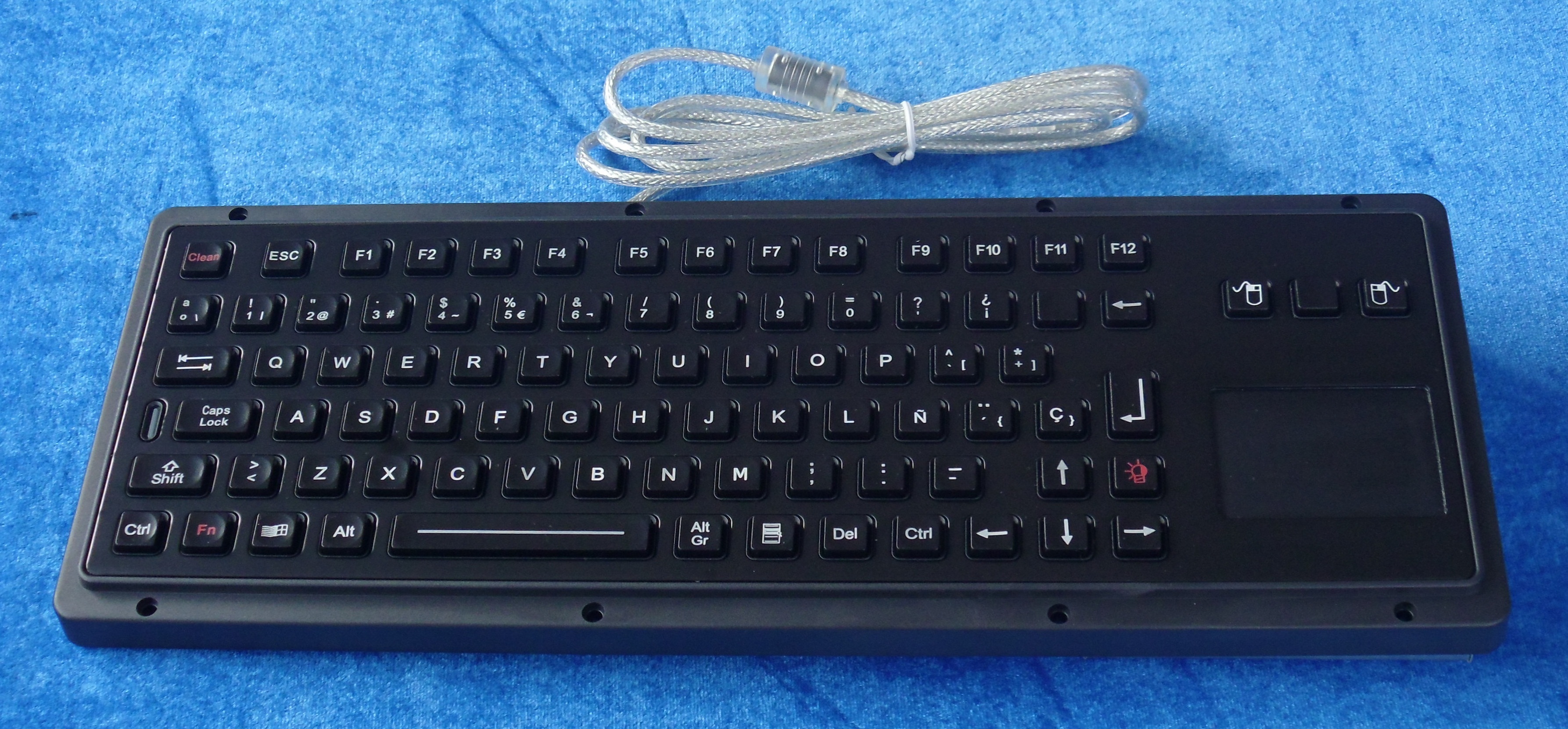

    Black dustproof industrial backlit illuminated keyboard with touchpad RoHS CE

    Black 85 keys industrial backlit Keyboard with sealed touchpad


    Special Features:


    1. NVIS red backlighting makes this keyboard ideal for widely applications

    2. Strong polymer keys makes the keyboard vandal-proof, against corrosion, weather-proof.

    3. IP65 waterproof, liquidproof, dustproof.

    4. Excellent tactile feel with full travel switches

    5. With firm tactile perception for comfortable operation

    6. Key-tops are for easy readability, long life to prevent lettering rub-off.

    7. Can be customized to any language layout.

    8. 85 keys IP65 dynamic vandal proof industrial and military keyboard.


    Specifications:


    MECHANICAL DATA

    Key

    85 keys

    Key top style

    Protuberant rectangular keys.

    Actuator/keys materials

    polymer

    Robust polycarbonate frame

    Between top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics controller, with mounting holes along the keyboard mounting edge for fixing keyboard with rear panel mounting.

    Key Size

    11.4mm x 11.4mm for normal keys,

    11.4mm x 24.3mm for enter key,

    11.4mm x 71.8mm for space bar.

    Key travel

    1.50mm

    Switch life

    more than 10 million of operations.

    Lettering

    laser-etched or high quality ink print.

    G.W.

    1.80KGs

    Dimensions

    380.0mm x 108.0mm ( L x W )

    Touchpad cover

    Composite

    Lifetime

    More than 10 million strokes Mutual Capacitance sensing

    X/Y position sensing resolution

    40 counts/mm

    X/Y position reporting

    Relative

    Tracking speed

    Maximum 1,016 m/sec

    Power supply voltage

    5 VDC ±0.25V

    Current rating (active mode)

    17 mA

    Switch life

    more than 10 million of operations


    RELIABILITY

    Certification

    RoHS Compliant, CE and FCC,IP65,ESD

    Protection Level

    IP65(front panel)

    Vandal resistant

    IK10

    Key Lifespan

    >10 million actuations

    MTBF

    >50000H

    MTTR

    <30min
