    12 keys USB IP65 dynamic metal keypad with red or blue backlight vandal resistant

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A68KP-BL
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    12 keys USB IP65 dynamic metal keypad with red or blue backlight vandal resistant


    12 keys USB IP65 dynamic vandal proof metal keypad with red backlight


    DESCRIPTION: 12 keys compact format IP65 dynamic vandal proof Stainless Steel industrial numeric keypad with industrial PCB electronics controller shieded & protected by stainless steel housing, carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with industrial backlight included. (red/blue/white/green optional), rear stainless steel plate with mounting holes for rear panel mounting. Dimension: 68.0mm x 90.0mm (front panel)


    APPLICATION:

    This Keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.


    ELECTRICAL DATA

    Power supply voltage

    5V DC

    Power Consumption

    Under 300mW for operation, under 200mW for non-operation.

    Electrical lifetime

    > 5 years

    EMC Standard

    It is compliance with the council IEC 61000-4-2:2008;

    IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004

    Communication interface

    PS2, USB or RS232 are all available.


    MECHANICAL DATA:

    Actuator/keys12 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key
    Key top styleNon-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size14.0mm x 14.0mm for normal keys
    Key travel2.0 mm
    Actuation Force2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point)
    Switch lifemore than 5 million of operations
    Front Plate1.5mm thickness super quality brushed stainless steel
    Back Stainless steel housing1.0mm thickness super quality stainless steel
    G.W.0.60KGs
    Dimensions

    68.0mm x 90.0mm (L x W )


    COMMUNICATION PARAMETER

    PS2/USB:

    • Standard PS2/USB keyboard interface.
    • 12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code
    • Any customized layout/codes are available upon customers’ requirements

    RS232:

    • Standard RS232 serial interface.
    • Communication velocity: 9600bps.
    • Data format: N, 8, 1.
    • 12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code, 3 x 4 scanning code.
    • Any customized layout/codes are available upon customers’ requirements


    Actual Photos:

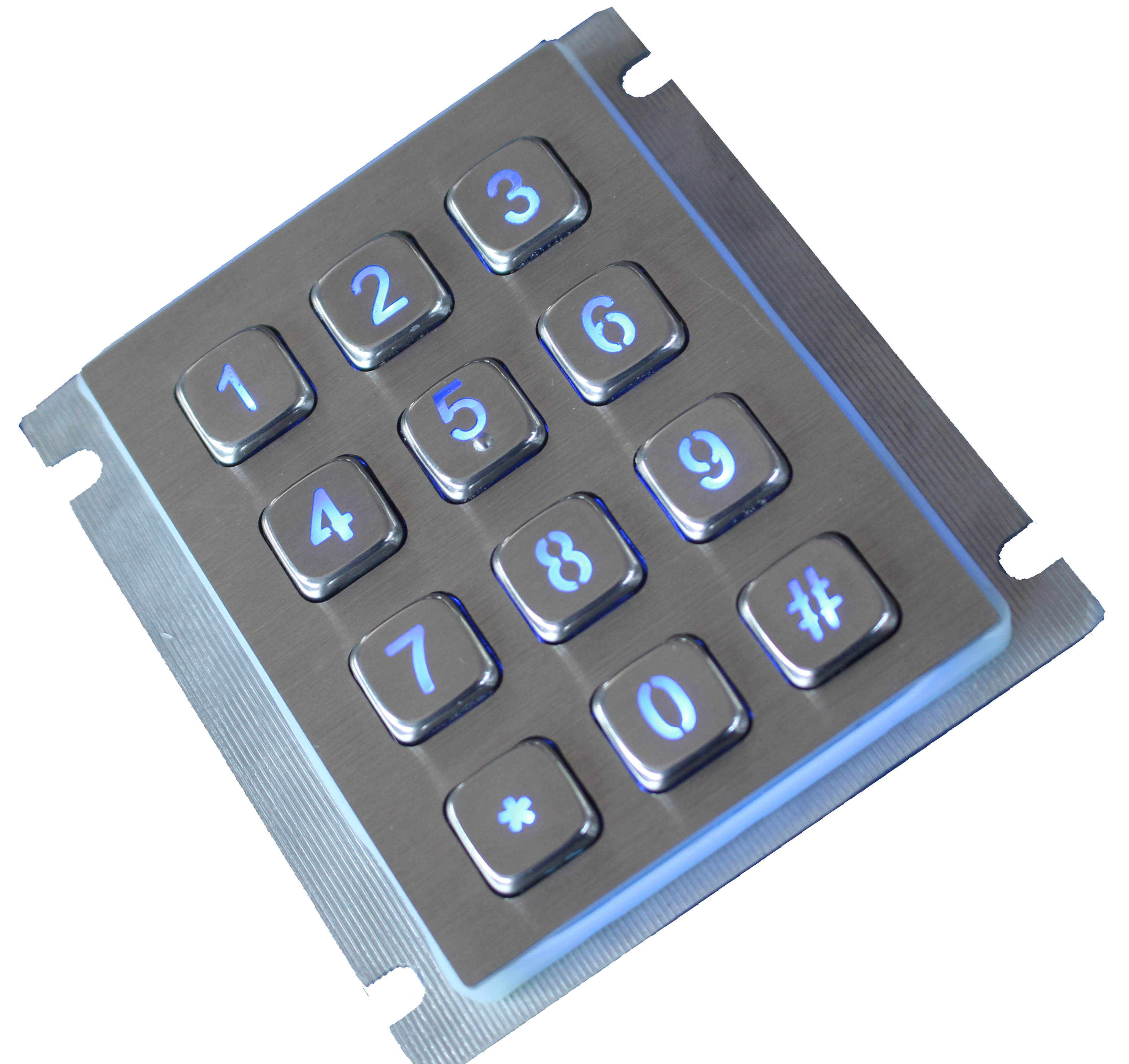

    12 keys USB IP65 dynamic metal keypad with red or blue backlight vandal resistant
