IP65 dynamic rated industrial backlight vending machine keypad vandal proof

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap IP65 dynamic rated industrial backlight vending machine keypad vandal proof from wholesalers

    Buy cheap IP65 dynamic rated industrial backlight vending machine keypad vandal proof from wholesalers
    • Buy cheap IP65 dynamic rated industrial backlight vending machine keypad vandal proof from wholesalers
    • Buy cheap IP65 dynamic rated industrial backlight vending machine keypad vandal proof from wholesalers
    • Buy cheap IP65 dynamic rated industrial backlight vending machine keypad vandal proof from wholesalers
    • Buy cheap IP65 dynamic rated industrial backlight vending machine keypad vandal proof from wholesalers

    IP65 dynamic rated industrial backlight vending machine keypad vandal proof

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B120KP-BL
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    IP65 dynamic rated industrial backlight vending machine keypad vandal proof


    IP65 dynamic rated vandal proof industrial backlight Vending Machine Keypad with short stroke


    Special Features:


    1. 16 keys IP65 dynamic compact format vandal proof Stainless Steel industrial numeric keypad with industrial PCB electronics controller shelled & protected by stainless steel housing

    2. An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation

    3. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

    4. threaded bolts under top stainless steel plate for top panel mounting solution.

    5. Key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.

    6. Complete electronic modules including controller in close consultation with our customers are available.


    Applications:



    A: unsupervised or semi -supervised positions of varied access applications



    B: internet terminals and information kiosks at universities



    C: shopping malls, hotels, airports, railway stations and other public areas



    D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc



    MECHANICAL DATA:


    Actuator/keys16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key
    Key top styleNon-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for function keys
    Key travel0.45mm
    Actuation Force2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
    Switch lifeMore than 5 million of operations.
    Front Plate1.5mm thickness super quality brushed stainless steel
    Back Plate1.5mm thickness super quality stainless steel
    G.W.0.60KGs
    Dimensions120.0mm x 98.0mm (L x W )

    ELECTRICAL DATA:


    Supply Voltage+5V DC +/-5%
    Current Ratingappr. 20mA
    EMC StandardIt is compliance with the council IEC 61000-4-2:2008
    IEC 61000-4-32006+AI:2007+A2:2010;IEC 61000-4-4:2004
    EMIEN 55022: 2010
    EMSEN 55024:2010
    Lifespan> 5 years
    Switch Contact MaterialGold-on-Gold key switch technology PCB
    InterfacePS2, USB, RS232, RS485 available
    OSAll windows, Linux, Unix, Mac OSX

    MAIN FEATURE:

    • Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
    • Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
    • Waterproof execution according to IP65 protection from top panel, top stainless steel plate with flat keyboard surface for easy cleaning, threaded bolts & sealing gasket for easy tightly mounting to enclosure or panel.
    • An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation
    • Key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
    • Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
    • Ease of customizing with multiple languages, to accommodate foreign or custom variants.

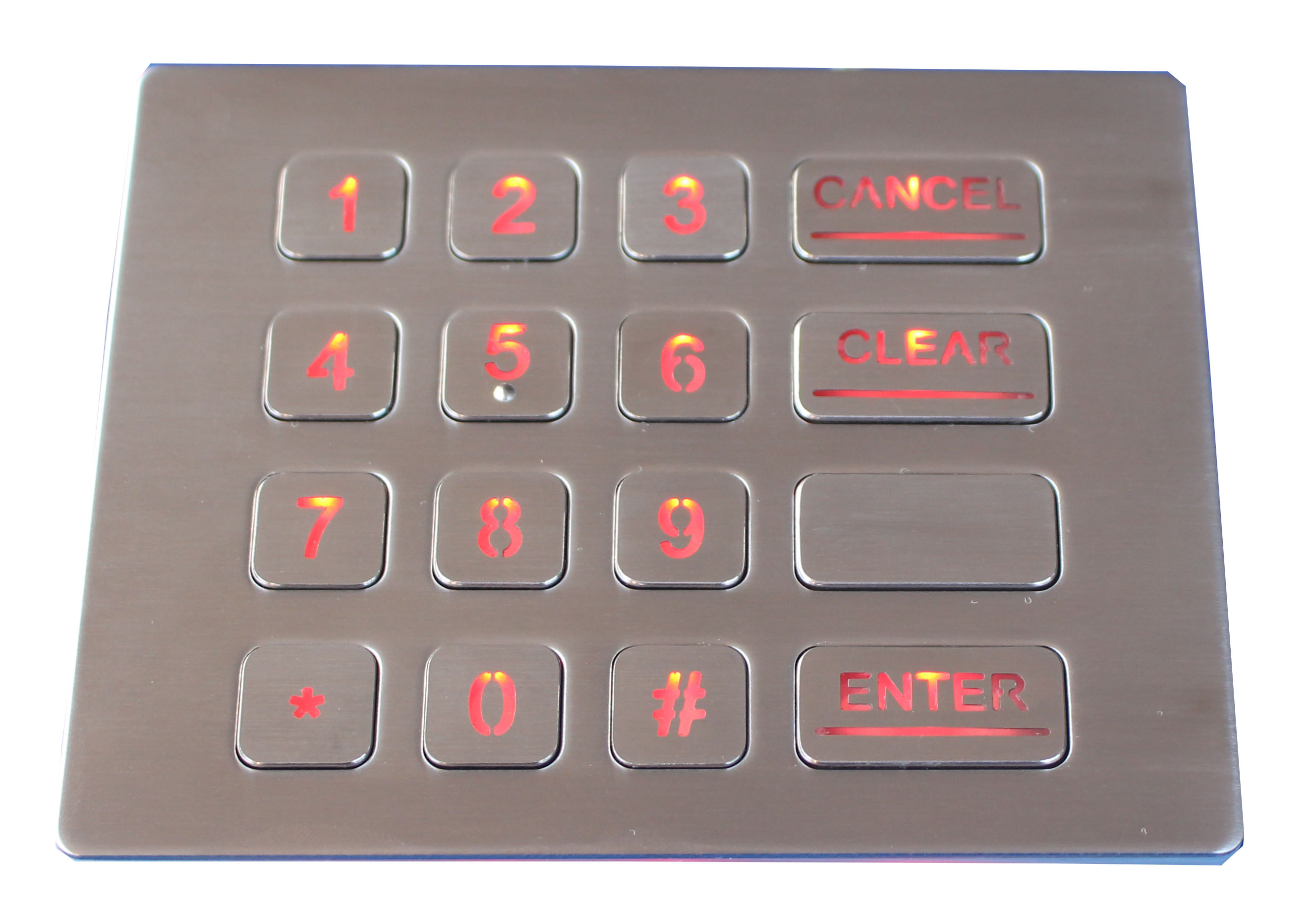

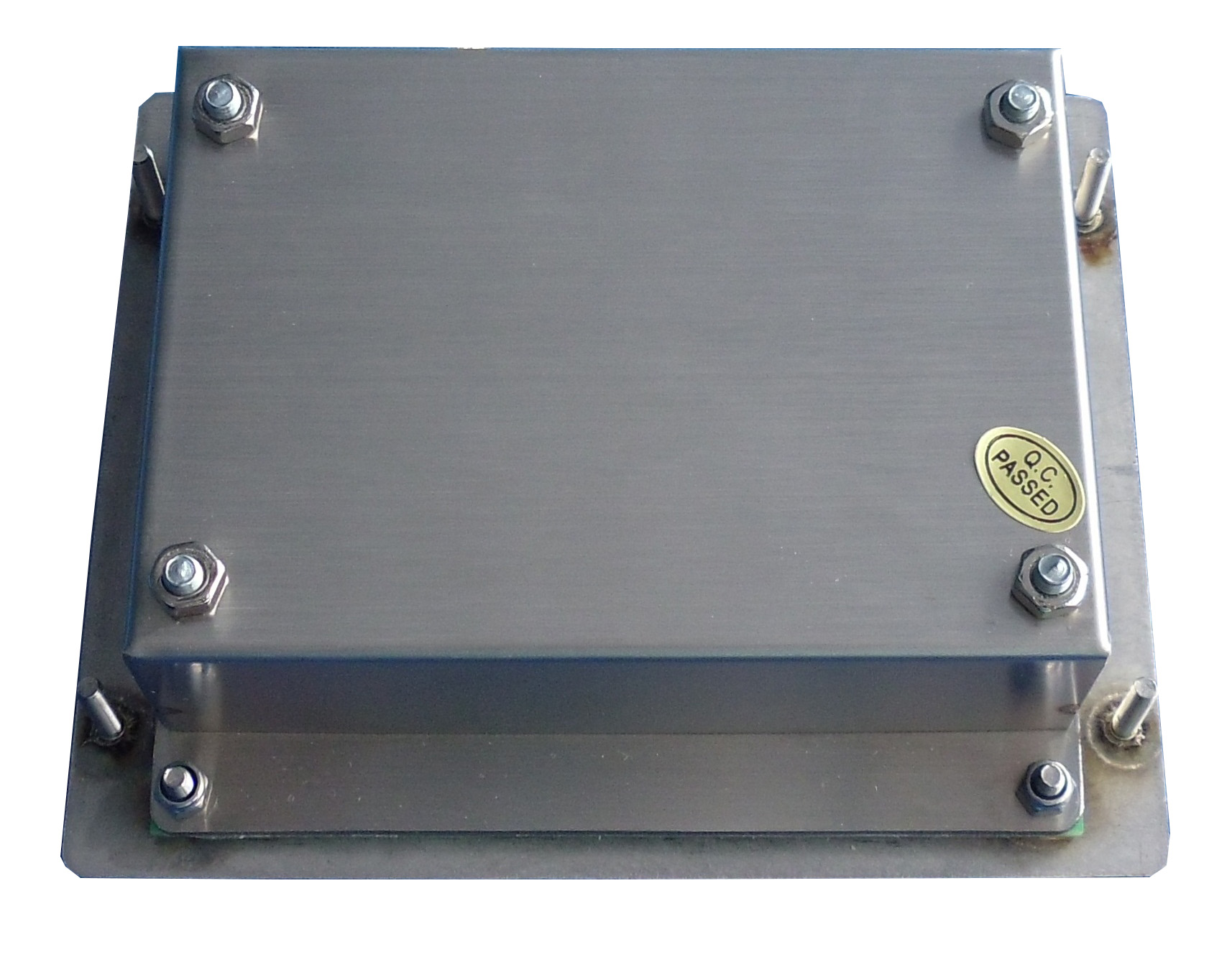

    Actual Photos:





    Mechnical Drawing:



    Our Certificate:



    Our Exhibitions:



    Our Office:
