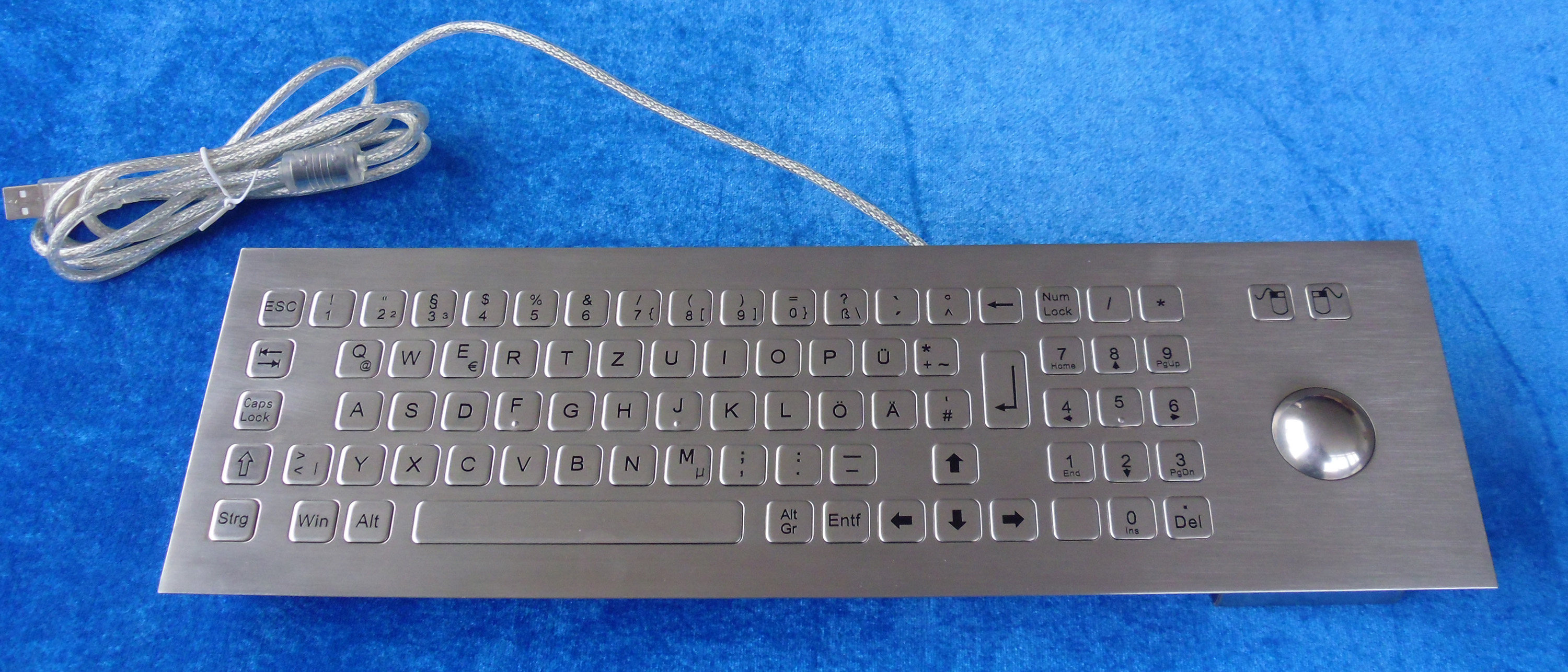

0.45mm flat keys metal keyboard with laser trackball with 1200 DPI resolution

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 0.45mm flat keys metal keyboard with laser trackball with 1200 DPI resolution from wholesalers

    Buy cheap 0.45mm flat keys metal keyboard with laser trackball with 1200 DPI resolution from wholesalers
    • Buy cheap 0.45mm flat keys metal keyboard with laser trackball with 1200 DPI resolution from wholesalers
    • Buy cheap 0.45mm flat keys metal keyboard with laser trackball with 1200 DPI resolution from wholesalers
    • Buy cheap 0.45mm flat keys metal keyboard with laser trackball with 1200 DPI resolution from wholesalers
    • Buy cheap 0.45mm flat keys metal keyboard with laser trackball with 1200 DPI resolution from wholesalers

    0.45mm flat keys metal keyboard with laser trackball with 1200 DPI resolution

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B400-TB-KP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    0.45mm flat keys metal keyboard with laser trackball with 1200 DPI resolution


    0.45mm flat keys metal keyboard with laser trackball with 1200 DPI resolution​


    Special Features:

    1. 81 Keys compact format IP65 static Vandal Proof Stainless Steel Industrial Keyboard


    2. industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input


    3. 38.0mm IP68 dynamic laser trackball module with 1200 DPI (LTB)


    4. with top panel mounting solution


    5. CE, RoHS, FCC certified, IP65 test report, ESD


    6. Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off


    7. PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver


    8. Ease of customizing with multiple languages, to accommodate foreign or custom variants


    9. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level


    Applications:


    This Keyboard is mainly targeted for use for:
    A: unsupervised or semi -supervised positions of varied access applications,
    B: internet terminals and information kiosks at universities,
    C: shopping malls, hotels, airports, railway stations and other public areas,
    D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

    Specifications:

    MECHANICAL DATA

    Key

    81 keys, super quality SUS304 brushed stainless steel

    Key top style

    Non-Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

    Key Size

    14.0mm x 14.0mm for normal keys,
    14.0mm x 28.0mm for enter key,
    14.0mm x 100mm for space bar.

    Key travel

    0.45mm

    Tracker ball

    38.1mm (1.5’) diameter,
    IP65 static 400DPI mechanical trackball module,
    IP68 dynamic washable 800DPI optical trackball module,
    IP68 dynamic washale 1200DPI laser trackball module

    Switch life

    more than 5 million of operations

    Actuation Force

    2.0N +/-0.1N for key 14.0mm x 14.0mm (pressure point)
    4.0N +/-0.1N for key 14.0mm x 28.0mm (pressure point)

    Front Plate

    1.5mm thickness super quality brushed stainless steel

    Back Plate

    3.0mm thickness brushed & oxidized aluminum

    Actuator/keys materials

    stainless steel

    G.W.

    2.00KGs

    Dimensions

    400.0mm x 124.0mm (front panel) ,
    392.0mm x 110.0mm (back panel)



    ENVIRONMENTAL ADAPTABILITY:

    • Operating temperature:-20℃ to +60℃
    • Storage temperature: -30℃ to +70℃
    • Operating RH: 30-90%
    • Atmospheric pressure: 60-106Kpa.
    • Saline mist: 96 hours, IEC 60512-6
    • Damp heat test at + 40℃: 21 days, IEC 60512-6
    • Dry heat test at + 85℃: 10 days, IEC 60512-6

    RELIABILITY:

    • RoHS Compliant, CE and FCC, ESD
    • Protection Level: IP65(front panel)
    • Vandal resistant IK09
    • Key Lifespan >10 million actuations
    • MTBF >50000H
    • MTTR <30min
