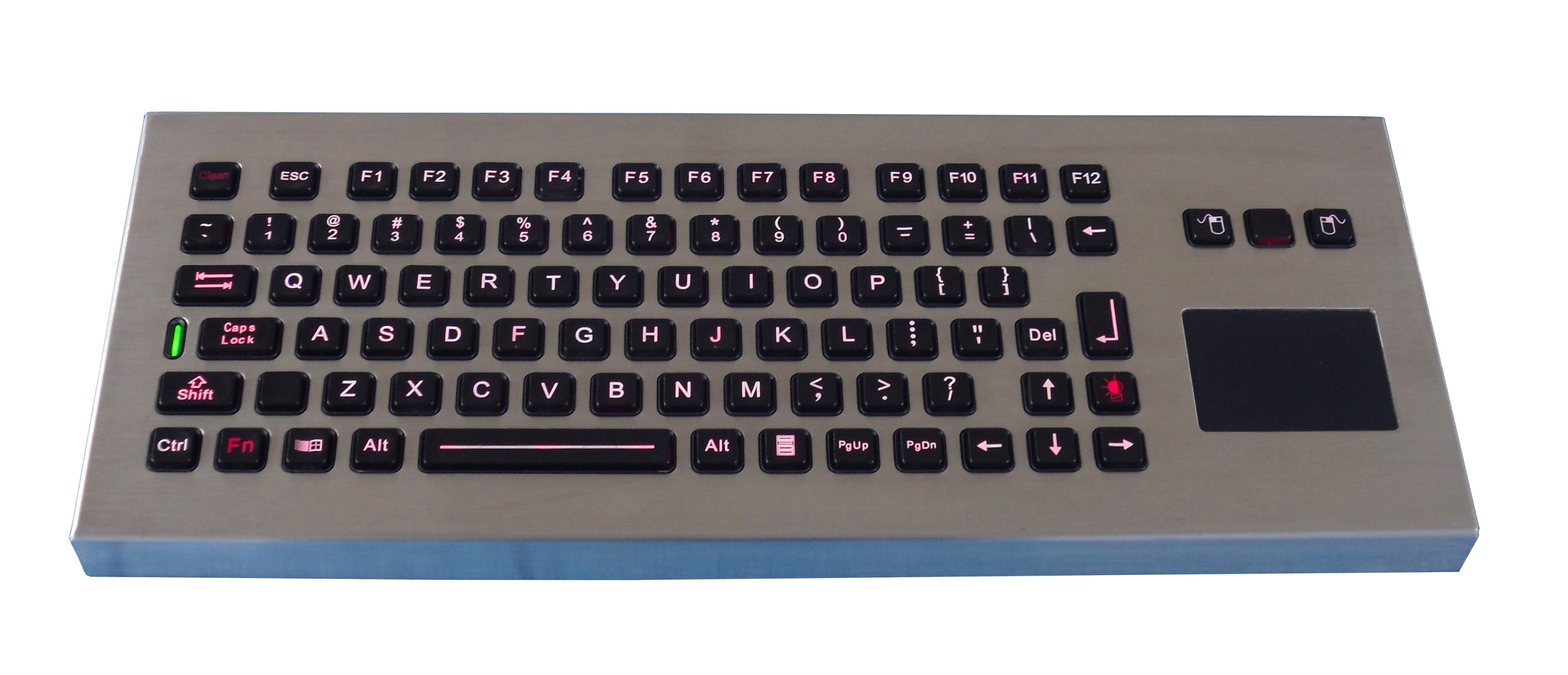

    IP65 85 keys ruggedized desktop metal backlight keyboard with sealed tough touchpad

    Ask Lasest Price
    Model Number : K-TEK-M380TP-FN-DT-BL
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    • Product Details
    • Company Profile

    IP65 85 keys ruggedized desktop metal backlight keyboard with sealed tough touchpad


    High quality custom layout ruggedized keyboard with sealed tough touchpad


    Special Features:


    1. The IP65 dynamic keyboards can be do with industrial and military level.
    2. Unique functions with red clean key to lock/disable the keyboards for easy cleaning at any tiime.

    3. FN (F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12) and rugged touchpad for easy operation
    4. Waterproof,vandal proof of IK10, and dustproof.
    5. Excellent tactile feel with full travel switches for achieving accurate data input without any noise.
    7. laser-etched or high quality ink print in legends and characters for preventing lettering rub-off.


    Specifications:


    MECHANICAL DATA

    Key

    85 keys

    Key top style

    Protuberant rectangular keys.

    Actuator/keys materials

    polymer

    Top SS plate

    1.5mm stainless steel plate with super quality durable Black Titanium Electroplated

    Back SS plate

    1.5mm stainless steel plate

    Robust polycarbonate frame

    Between top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics controller, with mounting holes along the keyboard mounting edge for fixing keyboard with rear panel mounting.

    Key Size

    11.4mm x 11.4mm for normal keys,
    11.4mm x 24.3mm for enter key,
    11.4mm x 71.8mm for space bar.

    Key travel

    1.50mm

    Switch life

    more than 10 million of operations.

    Lettering

    laser-etched or high quality ink print.

    G.W.

    1.80KGs

    Dimensions

    380.0mm x 108.0mm ( L x W )

    Touchpad cover

    Composite

    Lifetime

    More than 10 million strokes Mutual Capacitance sensing

    X/Y position sensing resolution

    40 counts/mm

    X/Y position reporting

    Relative

    Output(self-detectable depending on cable)

    PS2 or USB

    Tracking speed

    Maximum 1,016 m/sec

    Power supply voltage

    5 VDC ±0.25V

    Current rating (active mode)

    17 mA

    Switch life

    more than 10 million of operations


    ELECTRICAL DATA

    Supply Voltage

    +5V DC +/-5%

    Current Rating

    30mA for keyboard and touchpad without backlight.
    130mA for keyboard with backlight on.


    EMC Standard:

    It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004

    EMI:

    EN 55022: 2010

    EMS:

    EN 55024:2010

    Lifespan

    > 5 years

    Switch Contact Material:

    Carbon-on-Gold key switch technology PCB.

    Interface:

    PS2, USB available.

    OS:

    All windows, Linux, Unix, Mac OSX


    Applications:

    This keyboards is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force.
