    82 keys industrial dynamic waterproof desktop metal keyboard with trackball and Fn keys

    Ask Lasest Price
    Model Number : K-TEK-B361-TB-FN-DT-DWP
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    • Product Details
    • Company Profile

    82 keys industrial dynamic waterproof desktop metal keyboard with trackball and Fn keys

    82 key direct waterproof vandal proof ruggedized keyboard with trackball & FN key


    DESCRIPTION:

    82 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard with IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with +800 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation,industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, movable stand alone DESK TOP VERSION, or mountable desktop with mounting holes on the bottoms for fixing.Which is good for outdoor application withdirect dynamic-water,oil, dirt, salt mist etc, IP68 dynamic trackball module with direct drain pipe is optional, no rust risk and anti-salt spray corrosion.


    APPLICATION:

    • This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

    MECHANICAL DATA:

    Actuator/keys82 keys, super quality SUS304 brushed stainless steel
    Key top styleProtuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.
    Key travel0.45mm short stroke
    Actuation Force2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) , 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
    Switch lifemore than 10 million of operations.
    Stainless Steel Housing1.20mm thickness super quality brushed stainless steel
    G.W.3.00KGs
    DimensionsDimensions

    MAIN FEATURE:

    • The keyboard can be dynamic washable with water and other liquids, it can work well even under water with 2.0mm depth after 8 hours dynamic water proof testing.
    • The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the keyboard away from PC.
    • Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
    • Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
    • Waterproof execution according to IP68 protection from top panel, top stainless steel plate with threaded bolts for easy tightly mounting to enclosure or panel.
    • An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
    • Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
    • Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
    • Ease of customizing with multiple languages, to accommodate foreign or custom variants.
    • Complete electronic modules including controller in close consultation with our customers are available.
    • PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.
    • The numeric keypad is available with encryption module supporting DES/TDES for bank usage of CDM/ATM.

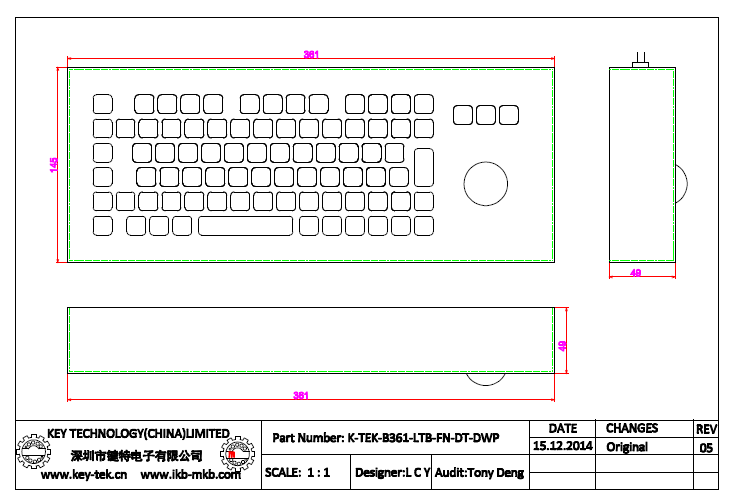

    Mechanical Drawing:

    82 keys industrial dynamic waterproof desktop metal keyboard with trackball and Fn keys
