    Farsi black panel mount keyboard / illuminated usb keyboard IEC 60512-6

    Ask Lasest Price
    Model Number : K-TEK-M380-CTB-BL-BT
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Brand Name : IKB-MKB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    • Product Details
    • Company Profile

    Farsi black panel mount keyboard / illuminated usb keyboard IEC 60512-6

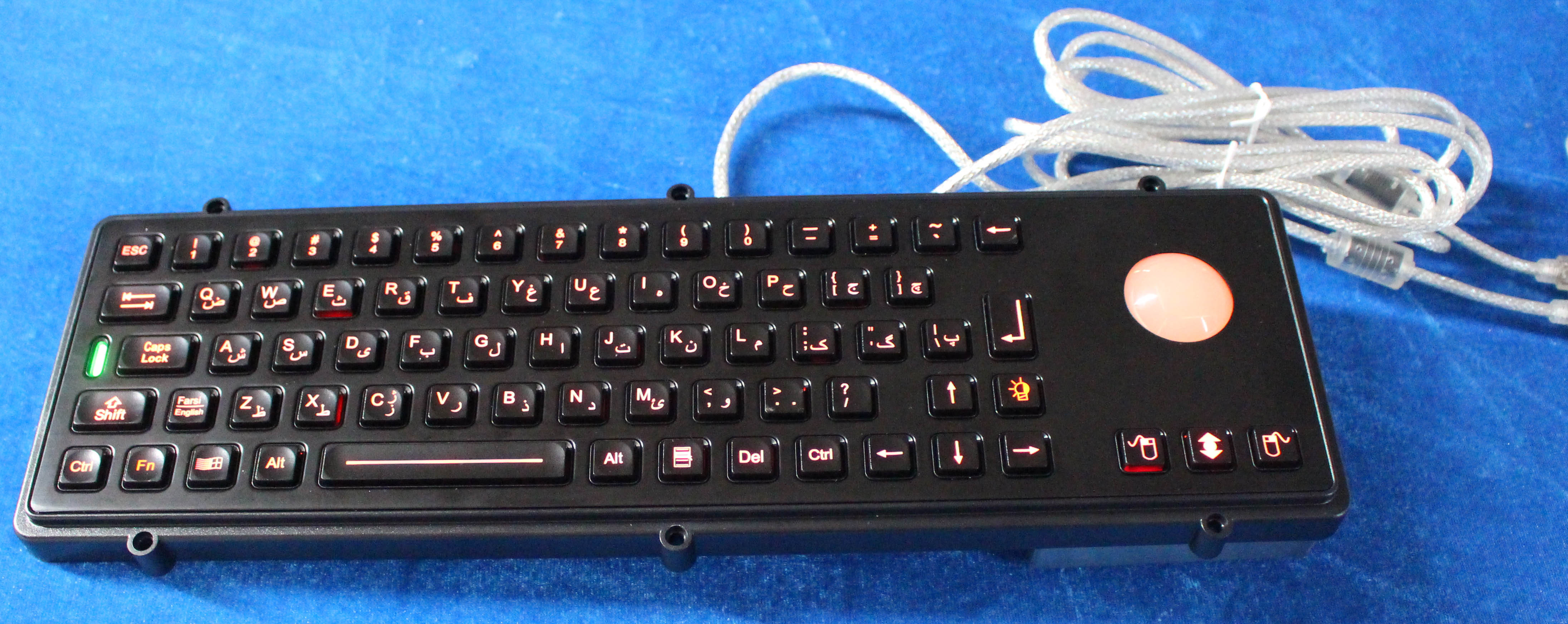

    Farsi black illuminated panel mount keyboard with illuminated trackball


    DIMENSIONS: 380.0mm x 129.5mm (top panel)


    DESCRIPTION: 85 keys IP65 dynamic vandal proof industrial & military keyboard with adjustable industrial backlight, integrated IP65 static 38.0mm mechanical trackball with transparent touch ball with adjustable chameleon backlight & 400 DPI resolutions, function keys (F1, F2…F11, F12) on the top line for easy operation, industrial PCB with carbon-on-gold key switch technology with key stroke 1.50mm with extremely good tactile feeling for fast and accurate input without any noise, red clean key lock/disable the keyboard for easy cleaning and washing without needing to take out the keyboard from PC, high quality durable black titanium electroplated on the top stainless steel plate included, rear panel mounted.


    Special Features:


    1. Lettering is laser-etched or high quality ink print.


    2. 71 keys IP65 industrial & military keyboard with adjustable industrial backlight


    3. 38.0mm trackball module.for fast and accurate cursor position


    4. CE, FCC, ROHS, IP65, ESD


    5. high quality durable black titanium electroplated on the top stainless steel plate (optional)


    6. adjustable industrial backlight included, rear panel mounted.


    7. With firm tactile perception for comfortable operation


    Specifications:


    MECHANICAL DATA

    Key top style

    Protuberant rectangular keys.

    Actuator/keys materials

    polymer

    Top & Back SS plate

    1.5mm stainless steel plate with super quality durable Black Titanium Electroplated (optional)

    1.5mm stainless steel back plate

    Robust polycarbonate frame

    Between top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics controller, with mounting holes along the keyboard mounting edge for fixing keyboard with rear panel mounting.

    Key Size

    11.4mm x 11.4mm for normal keys,

    11.4mm x 24.3mm for enter key,

    11.4mm x 71.8mm for space bar.

    Key travel

    1.50mm

    Tracker ball

    38mm (1.5') diameter

    IP65 chameleon backlight trackball with 400 DPI Resolution

    Switch life

    more than 10 million of operations.

    Lettering

    laser-etched or high quality ink print.

    G.W.

    1.60KGs

    Dimensions

    380.0mm x 108.0mm ( L x W )


    ELECTRICAL DATA

    Supply Voltage

    +5V DC +/-5%

    Current Rating

    30.0mA for keyboard and trackball without backlight.

    230.0mA for keyboard and trackball with backlight on.


    EMC Standard:

    It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004

    EMI:

    EN 55022: 2010

    EMS:

    EN 55024:2010

    Lifespan

    > 5 years

    Switch Contact Material:

    Carbon-on-Gold key switch technology PCB.

    Interface:

    PS2, USB available.

    OS:

    All windows, Linux, Unix, Mac OSX
