    69 Keys Panel Mount Keyboard , Stainless Steel Keyboard with Trackball MTB, OTB , LTB

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A361-TB
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    69 Keys Panel Mount Keyboard , Stainless Steel Keyboard with Trackball MTB, OTB , LTB

    Brushed stainless steel top panel mount metal keyboard with trackball


    DESCRIPTION:

    69 keys compact format IP65 static vandal proof stainless steel industrial keyboard with IP65 static rated mechanical trackball with 400DPI or IP68 dynamic rated optical trackball with 800DPI or IP68 dynamic rated washable 38.0mm stainless steel laser trackball module with 1200 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise,industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, stainless steel top plate with threaded bolts for top panel mounting solution. IP68 dynamic trackball module with direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

    DIMENSIONS: 361.0mm x 125.0mm (front panel


    APPLICATION

    • This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

    Optional Trackball Modules:

    ------IP65 static mechanical trackball module with 400 DPI

    -----IP68 dynamic washable optical trackball module with 800 DPI


    MECHANICAL DATA:

    Actuator/keys69 keys, super quality SUS304 brushed stainless steel
    Key top styleProtuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar
    Key travel2.0mm
    Actuation Force0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
    Switch lifemore than 10 million of operations
    Front Plate1.50mm thickness super quality brushed stainless steel
    Back Plate3.0mm thickness brushed & oxidized aluminium
    Tracker ball38.1mm (1.5’) diameter, IP65 static 400DPI mechanical trackball, IP68 dynamic washable 800DPI optical trackball, IP68 dynamic 1200DPI laser trackball are all available
    G.W.2.00KGs
    Dimensions361.0mm x 125.0mm (front panel) , 343.0mm x 105.0mm (back panel)

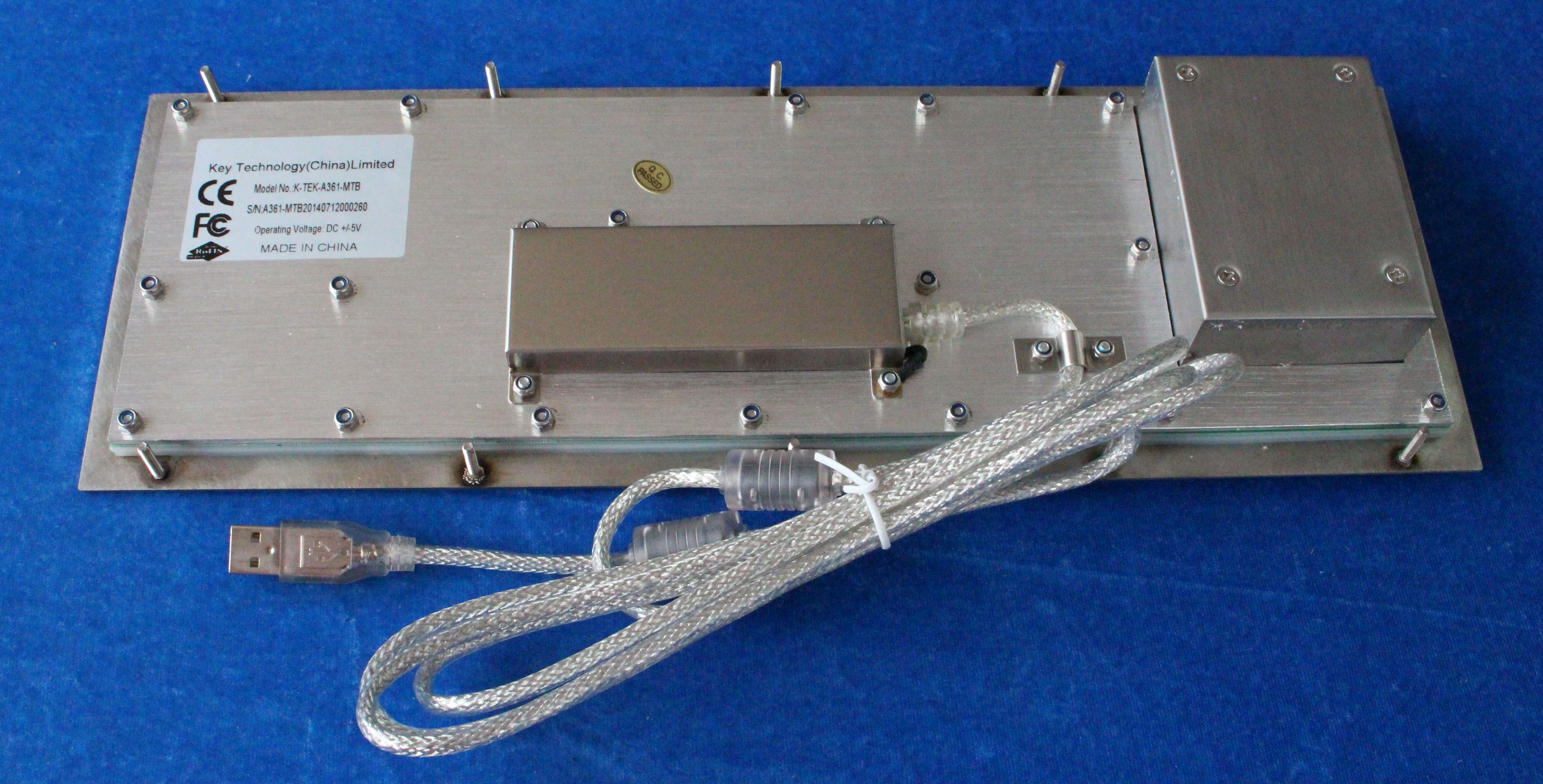

    Acutual Pictures:

    Our Factory:
