    EMC 90 Keys IP65 Military Keyboard With Force Sensing Resistor

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M276HP-FN-BL-ML-EMC-OEM
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : to be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    EMC 90 Keys IP65 Military Keyboard With Force Sensing Resistor

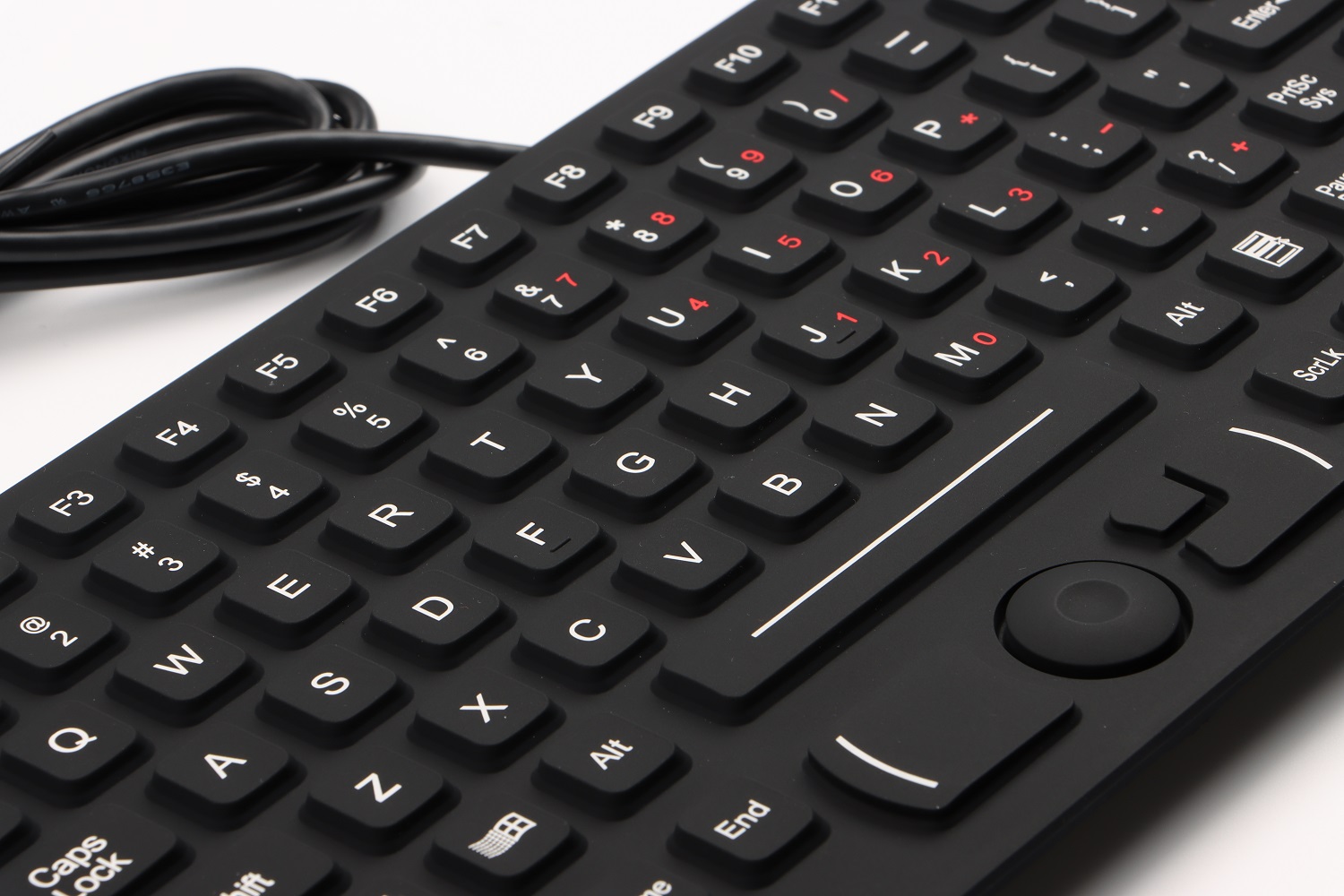

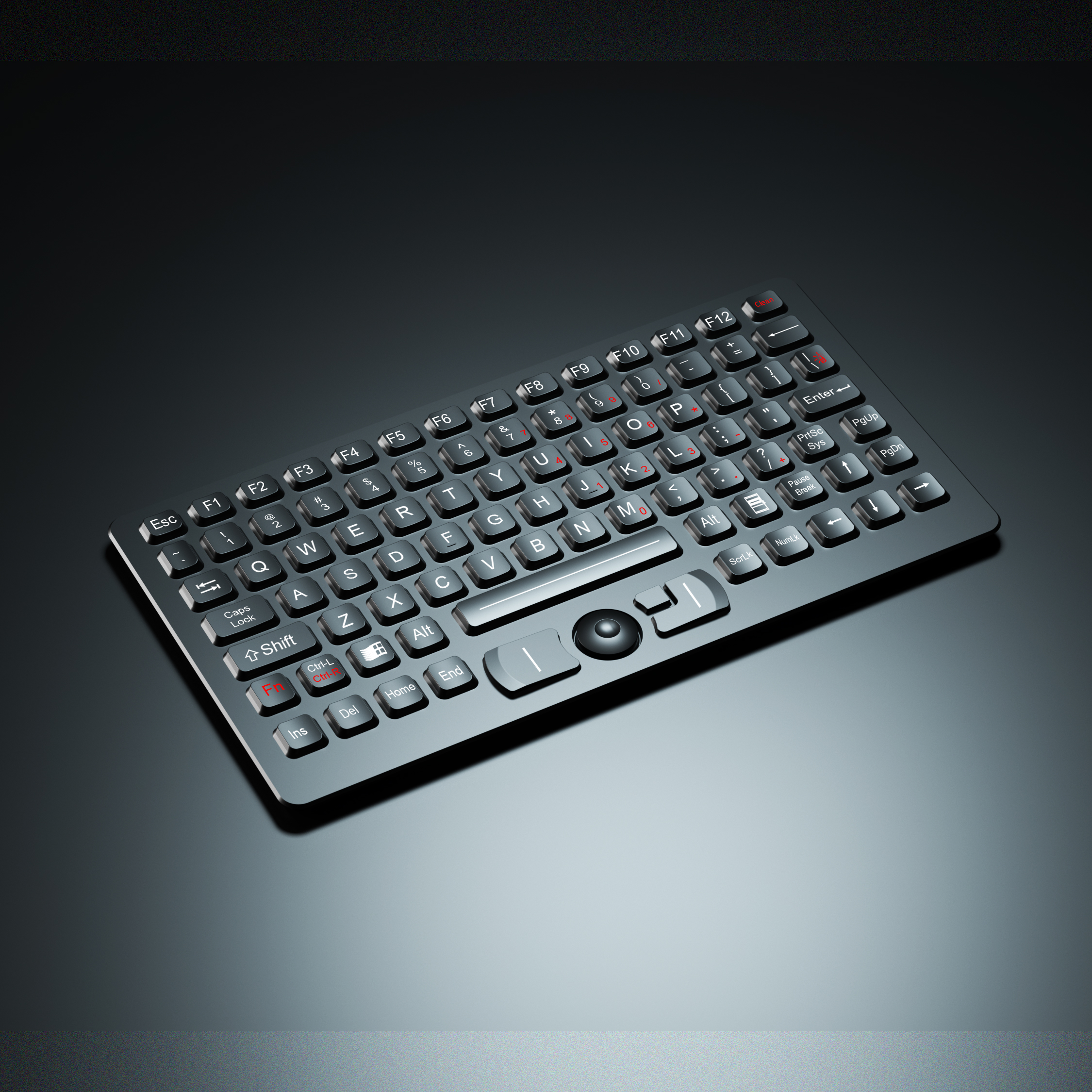

    DESCRIPTION: 90 keys IP65 dynamic sealed and ruggedized silicone rubber military keyboard with full keyboard functionalities with a Force Sensing Resistor pointing device for fast and accurate cursor position, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, with military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN combination key to lock/disable the keyboard for easy cleaning without needing to take away the keyboard from PC, top panel mounting solution,with backlight included(red/white optional). EMC approval ensures that this model can coexist with other sensitive equipment without causing interference. Military level,designed to Meet MIL-STD-461G and MIL-STD-810F.

    Dimensions: 281.0mm x 152.5mm (L x W )


    MECHANICAL DATA
    Keys90 keys (including 3 mouse buttons)
    Key top styleProtuberant rectangular keys with tactile feeling
    Key Size15.88mm x 15.68mm for normal keys
    Key travel1.50mm±0.1mm
    Actuation Force1.5N±0.2N (pressure point )
    Switch lifemore than 5 million of operations
    G.W.1.20KGs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating50mA when backlight is off, 300mA with backlight on
    Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.:
    1CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
    2CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
    3CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
    4CS106 Conducted Susceptibility, Transients, Power Leads
    5CS112 Electrostatic Discharge Susceptibility
    6CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
    7CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
    8CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
    9RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
    10RE102 10kHz - 18GHz Radiated Emissions, Electric Field
    11RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
    12RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
    MIL-STD-810F (wide temperature, shock, vibration, humidity).
    Lifespan> 5 years

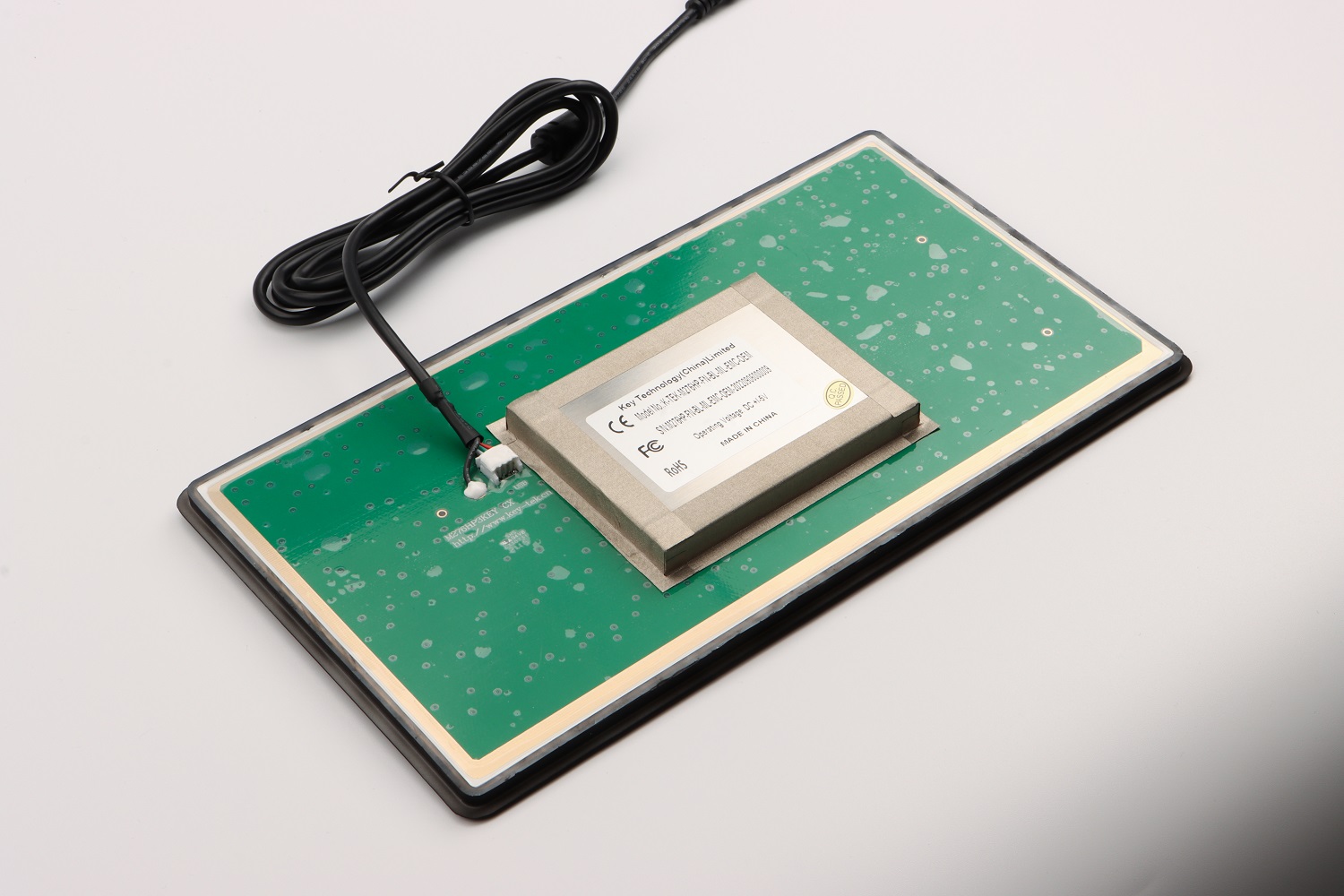

    Switch Contact MaterialCarbon-on-Gold key switch technology with military PCB
    InterfacePS2, USB available
    Cable lenghStandard 2.0m, customized length available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-25℃ to +60℃
    Storage temperature-40℃ to +70℃
    Operating RH100%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY

    RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock,

    salt mist, vibration, fungus, humidity)

    Protection LevelIP65 dynamic (front panel)
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
