    MIL-STD-810F Waterproof Vandal Proof Ruggedized Keyboard With Carbon On Gold Switch

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M327KP-FN-BL-IT-ML-DWP + M73TP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : to be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    MIL-STD-810F Waterproof Vandal Proof Ruggedized Keyboard With Carbon On Gold Switch

    MIL-STD-810F Waterproof Vandal Proof Ruggedized Keyboard With Carbon-On-Gold Switch Technology


    DESCRIPTION: 101 keys IP65 dynamic water proof vandal proof rugged chiclet keyboard with durable polymer keys, sealed and ruggedized touchpad with 2 mouse buttons for left/right clicking. With 12 function keys F1, F2, ... F12, and individual numeric keypad on the right part, the whole keyboard is made of CNC aluminum alloy front plate + PC keycaps + carbon contact as well as integrated military grade PCB, carbon-on-gold key switch technology with 1.20mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, rear panel mounted with mounting holes, adjustable white backlight included. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mis-typing. Designed to meets MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.).

    Dimension: Keyboard: 327.0mm x 111.0mm (L x W), Touchpad: 76.0mm x 73.0mm (L x W)


    MECHANICAL DATA
    Actuator/keys101 keys + 2 mouse buttons
    Key top styleProtuberant rectangular polymer keys
    Key SwitchPC keycap and carbon-on-gold rubber key switch
    Key size14.0mm x 10.0mm for FN keys, 14.0mm x 14.0mm for normal keys
    Key travel1.20mm±0.10mm
    Actuation Force

    1.0N±0.2N for key 14.0mm x 14.0mm (pressure point ),1.5N±0.2N for key 21.8mm x 14.0mm

    (pressure point)

    Switch lifemore than 5 million of operations
    Touch padsealed & ruggedized tough touchpad
    Touchpad coverComposite
    More than Lifetime 10 million strokes
    Mutual capacitance sensing
    X/Y axis location detection resolution40 Counts /mm
    X/Y position reportrelative
    Tracking speedMaximum 1,016 m/sec
    Power supply voltage5VDC ± 0.25V
    Current rating (active mode)< 10 mA
    G.W.≈1.2KGs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating50mA for keyboard without backlight.
    300mA for keyboard with backlight on.
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    InterfacePS2, USB available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-40℃ to +75℃
    Storage temperature-45℃ to +85℃
    Operating RH100%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), MIL-STD-461G-EMC-EMI-EMS-ESD optional
    Protection LevelIP65 dynamic (front panel)
    Vandal resistantIK09
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

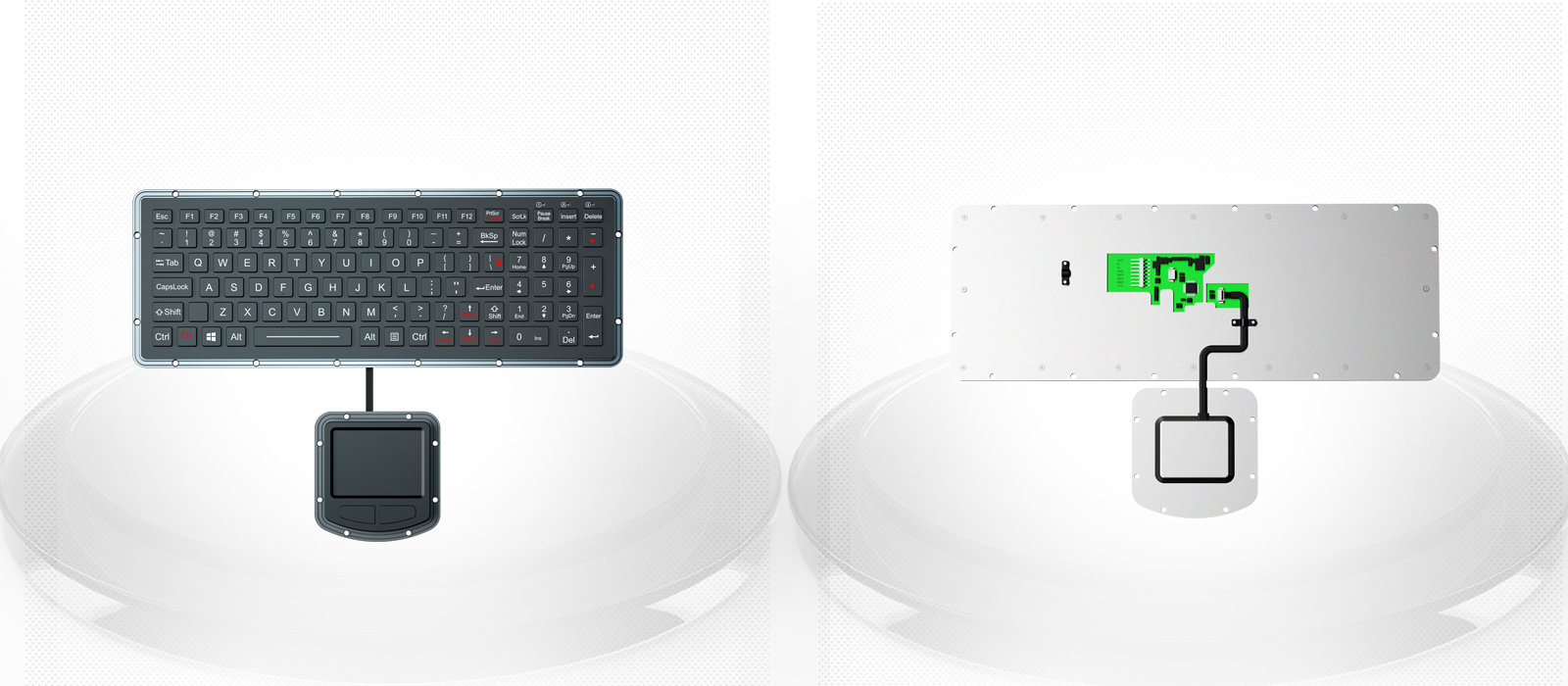

    Actual pictures:
