    Durable Embedded Silicone Keyboard Built In PCB Salt-Mist Resistant

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M270-FN-BL-ML+TP80-DML+2KEY
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Durable Embedded Silicone Keyboard Built In PCB Salt-Mist Resistant



    DESCRIPTION: 87 keys IP65 dynamic sealed & durable embedded military silicone rubber keyboard with rugged touchpad module and 2 mouse keys integrated, with built-in military grade PCB, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, panel mount with super thin ruggedized aluminum back plate with mounting holes, adjustable industrial white backlight included. FN + End button to control keyboard backlight and FN + ↑ or ↓ button to adjust backlight brightness. Built to meet MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.). Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

    Dimension: Keyboard: 270.0mm x 113.0mm (L x W) Touchpad: 81.0mm x 50.0mm (L x W)


    MECHANICAL DATA
    Keys87 keys + 2 mouse buttons
    Key top styleProtuberant rectangular keys with tactile feeling
    Key Size12.5mm X 12.5mm for normal keys, 22.8mm x 12.5mm for enter key and 68.4mm x 12.5mm for space bar key
    Key travel1.50mm±0.10mm
    Actuation Force1.5N±0.2N
    Switch lifemore than 5 million of operations
    Touch padsealed and ruggedized tough touchpad
    Touchpad coverComposite
    More than Lifetime 10 million strokes
    Mutual capacitance sensing
    X/Y axis location detection resolution40 Counts /mm
    X/Y position reportrelative
    Output (self-detectable depending on cable)PS2 or USB
    Tracking speedMaximum 1,016 m/sec
    Power supply voltage5VDC ± 0.25V
    Current rating (active mode)< 10 mA
    G.W.≈0.80KGs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating30mA when backlight is off, 300mA with backlight on
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact Materialcarbon-on-gold key switch technology
    InterfaceUSB
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-40℃ to +75℃
    Storage temperature-45℃ to +85℃
    Operating RH3%~95%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
    Protection LevelIP65 dynamic (front panel)
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

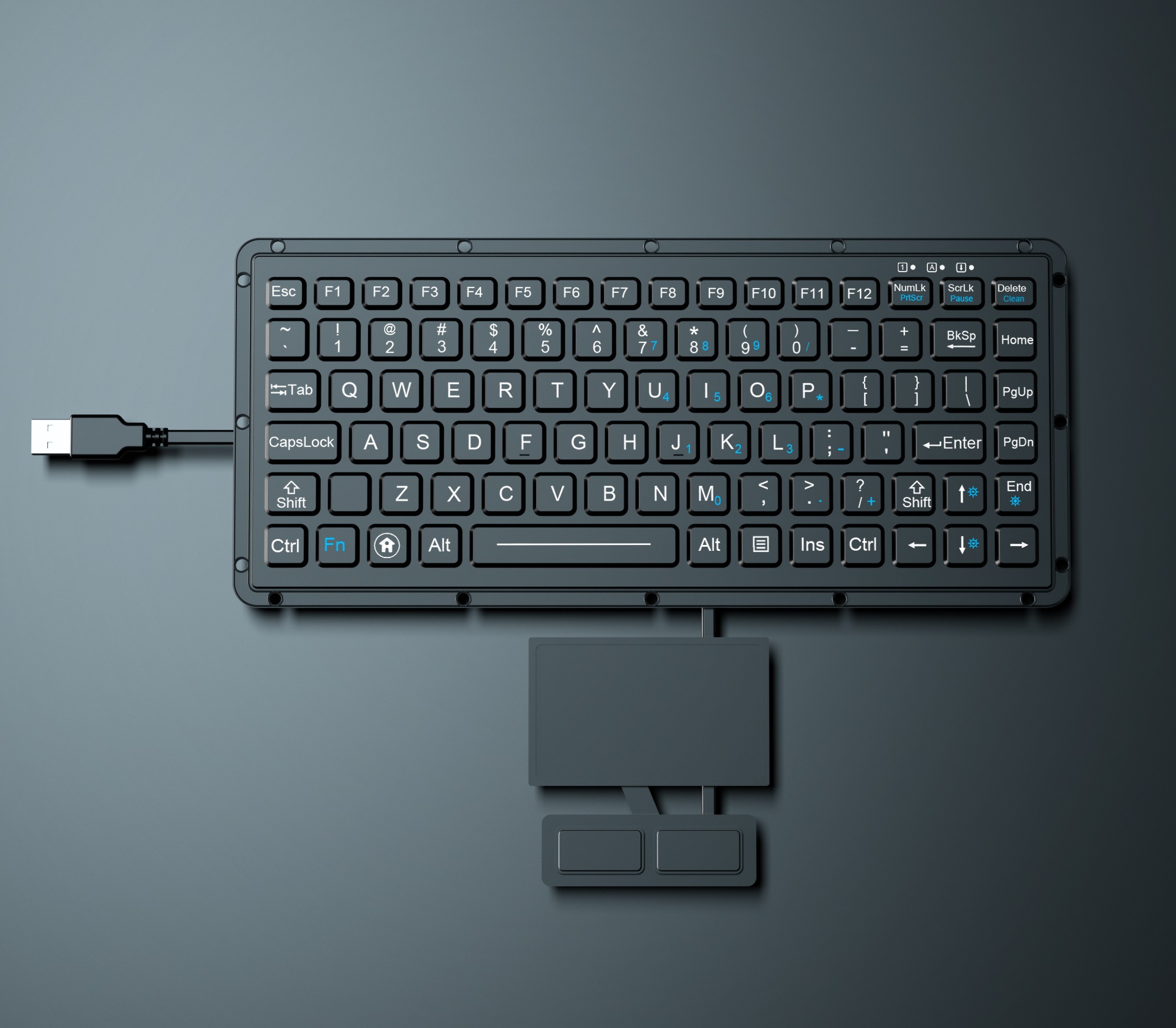

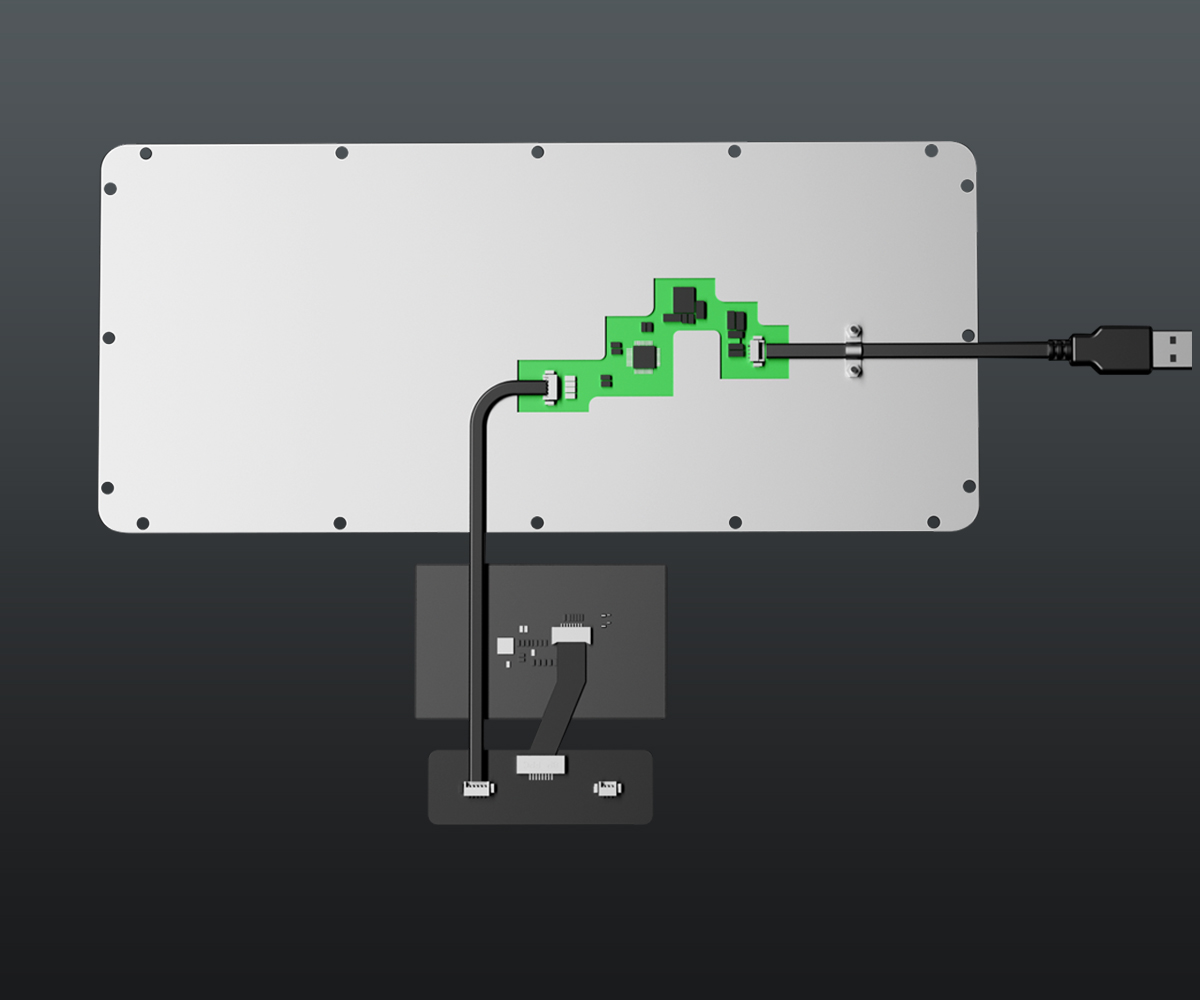

    ACTUAL PHOTOS
