    Durable Embedded silicone rubber rugged keyboard 87 Keys Built In Military Grade PCB

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M302-FN-BL-ML
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Durable Embedded silicone rubber rugged keyboard 87 Keys Built In Military Grade PCB


    DESCRIPTION: 87 keys IP65 dynamic sealed and durable embedded silicone rubber rugged keyboard, with built-in military grade PCB, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, key size of 15.0mm*14.5mm for easy operation without mis-typing, also ideal for users who wear gloves, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable the whole keyboard without needing to take away the keyboard from PC, rear panel mounted solution and adjustable white backlight included, with a reinforced and rugged metal back plate for better shielding function and positioning of the rugged cable outlet. Built to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, fungus etc.), which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

    DIMENSION: 302.0mm x 121.0mm (Front panel)


    MECHANICAL DATA
    Keys87 keys
    Switch Contact MaterialCarbon-on-gold key switch technology
    Key Top StyleProtuberant rectangular keys with tactile feeling
    Key Travel1.50mm±0.10mm
    Key Size15.0mm*14.5mm for normal keys, 12.0mm*12.0mm for function keys on upper line
    Actuation Force1.5N±0.2N (pressure point )
    G.W.0.80KGs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating30mA when backlight is off, 300mA with backlight on
    EMC StandsrdEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    InterfaceUSB
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-40℃ to +75℃
    Storage temperature-45℃ to +85℃
    Operating RH3%~95%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS compliant, CE and FCC certified, MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, fungus etc.),
    Protection LevelIP65 dynamic (front panel)
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

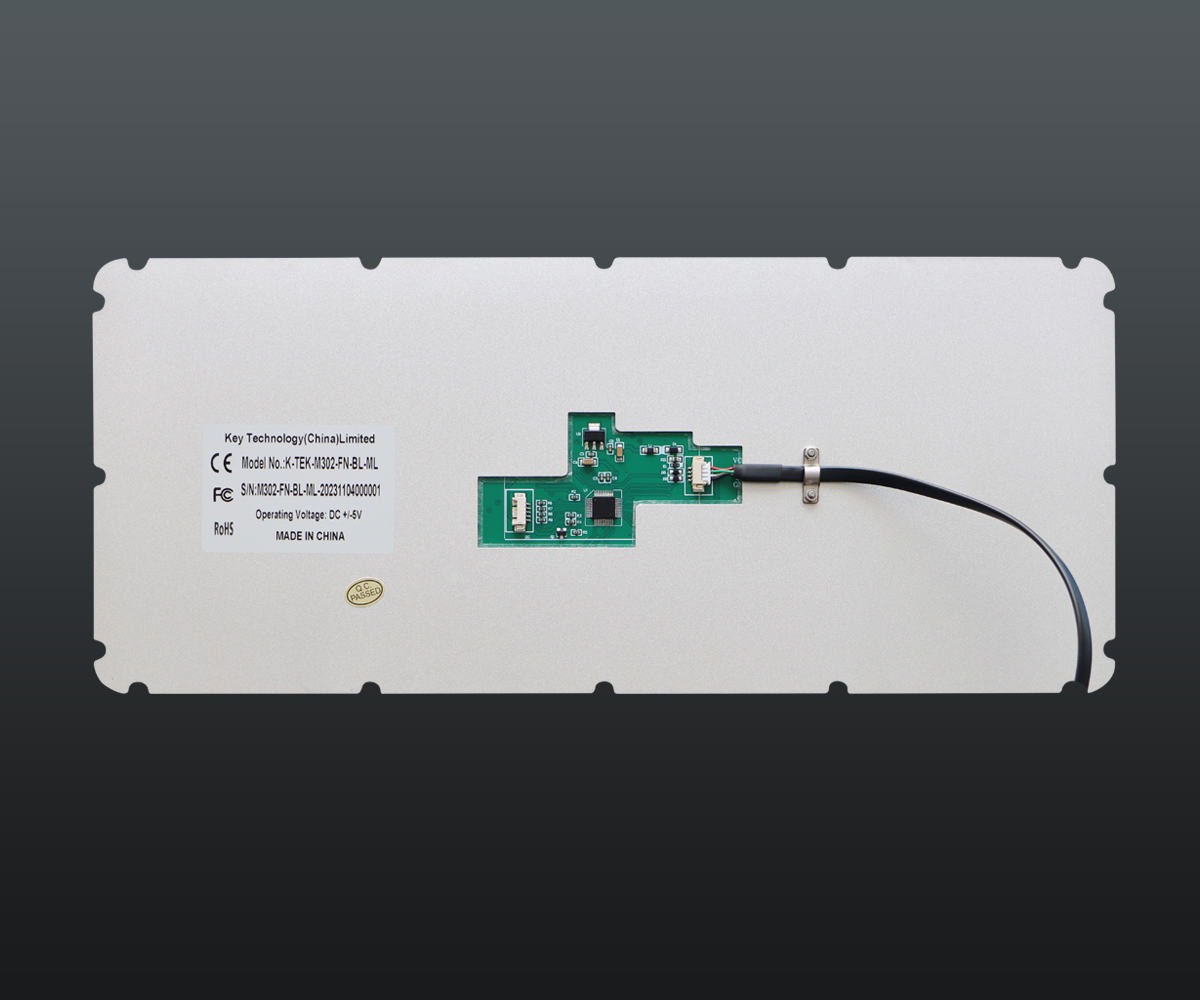

    ACTUAL PHOTOS
