    Waterproof EMC Keyboard With Touchpad 110 Keys Military Rugged Keyboard

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M349TP-KP-FN-BL-NV-151B
    Certification : CE, RoHS, FCC, ESD, REACH, IP67, IP68
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 1-2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Waterproof EMC Keyboard With Touchpad 110 Keys Military Rugged Keyboard

    EMC Keyboard Waterproof With Touchpad Military Rugged Keyboard

    Product Description For Emc Keyboard:

    110 keys IP65 dynamic sealed and durable embedded silicone rubber rugged keyboard, with built-in military grade PCB,12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise and error output, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, with FN + Lock key to lock the whole keyboard and FN + space key to lock the touchpad for easy cleaning without needing to take away the keyboard from PC, with combined multimedia functions on F1-F12 keys for convenient and easy operation, rear panel mounted, with a reinforced and rugged metal back plate for better shielding function and positioning of the rugged cable outlet, adjustable white backlight included. Designed to Meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

    DIMENSION: 349.0mm x 145.0mm (front panel)


    Emc Keyboard Technical Parameters:

    EMC KEYBOARD MECHANICAL DATA
    Keys110 keys (including 2 mouse buttons)
    Switch Contact MaterialCarbon-on-gold key switch technology
    Key Top StyleProtuberant rectangular keys with tactile feeling
    Key Travel1.50mm±0.10mm
    Actuation Force1.5N±0.2N (pressure point )
    Touch padsealed and ruggedized tough touchpad
    Touchpad coverComposite
    More than Lifetime 10 million strokes
    Mutual capacitance sensing
    X/Y axis location detection resolution40 Counts /mm
    X/Y position reportrelative
    Output (self-detectable depending on cable)PS2 or USB
    Tracking speedMaximum 1,016 m/sec
    Power supply voltage5VDC ± 0.25V
    Current rating (active mode)< 10 mA
    G.W.0.80KGs
    EMC KEYBOARD ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating30mA when backlight is off, 300mA with backlight on
    Meet MIL-STD-461G (EMC, EMI, EMS, ESD):
    1CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
    2CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
    3CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
    4CS106 Conducted Susceptibility, Transients, Power Leads
    5CS112 Electrostatic Discharge Susceptibility
    6CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
    7CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
    8CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
    9RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
    10RE102 10kHz - 18GHz Radiated Emissions, Electric Field
    11RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
    12RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
    MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
    Lifespan> 5 years
    InterfaceUSB
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    EMC KEYBOARD ENVIRONMENTAL ADAPTABILITY
    Operating temperature-40℃ to +75℃
    Storage temperature-45℃ to +85℃
    Operating RH3%~95%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
    Protection LevelIP65 dynamic (front panel)
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

    Support and Services:

    EMC Keyboard provides technical support and services to help you maintain the performance and reliability of your product.

    We offer a variety of services to keep your EMC Keyboard running optimally, including:

    • Diagnosing and troubleshooting of any hardware or software issues
    • Software and firmware updates and upgrades
    • Onsite support for installation, repair, and maintenance
    • Help with product registration and warranty information

    We also provide online resources such as user guides, FAQs, and troubleshooting tips to help you get the most out of your EMC Keyboard.

    Packing and Shipping:

    Packaging and Shipping for EMC Keyboard:

    The EMC Keyboard is securely packaged to ensure that it arrives in perfect condition. All products are inspected and tested prior to shipping. The product is placed in a protective, double walled cardboard box and then further wrapped in bubble wrap for extra protection.

    The package is then shipped via a reliable courier service to the customer's address. Standard delivery times may vary depending on the customer's location. Delivery times are usually 7-15 business days from the date of shipment.

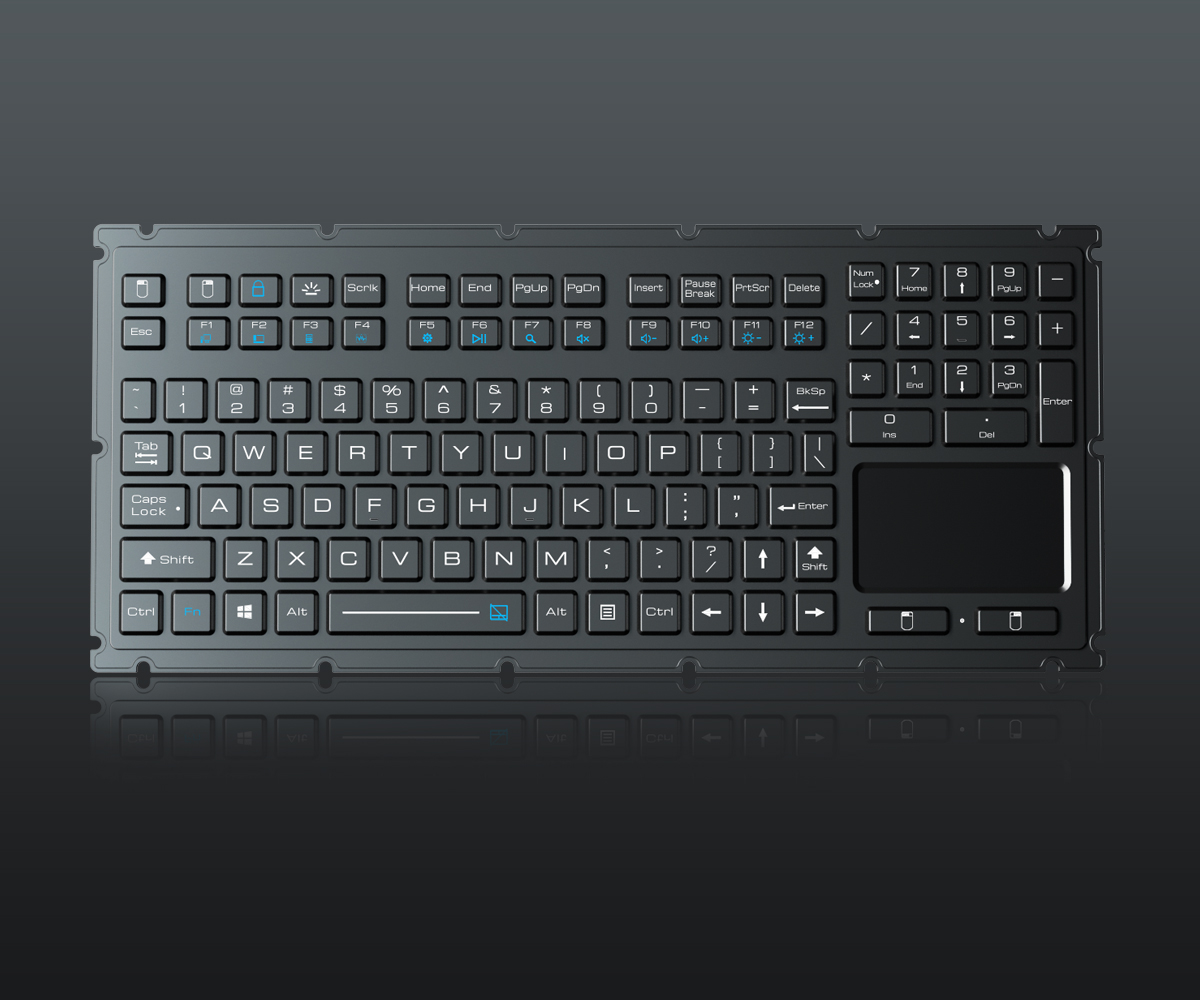

    ACTUAL PHOTOS FOR EMC KEYBOARD
