    Rugged Ergonomic Trackball Mouse 34mm Military Optical Trackball Module

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M129-OTB-NV-151B-BT
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

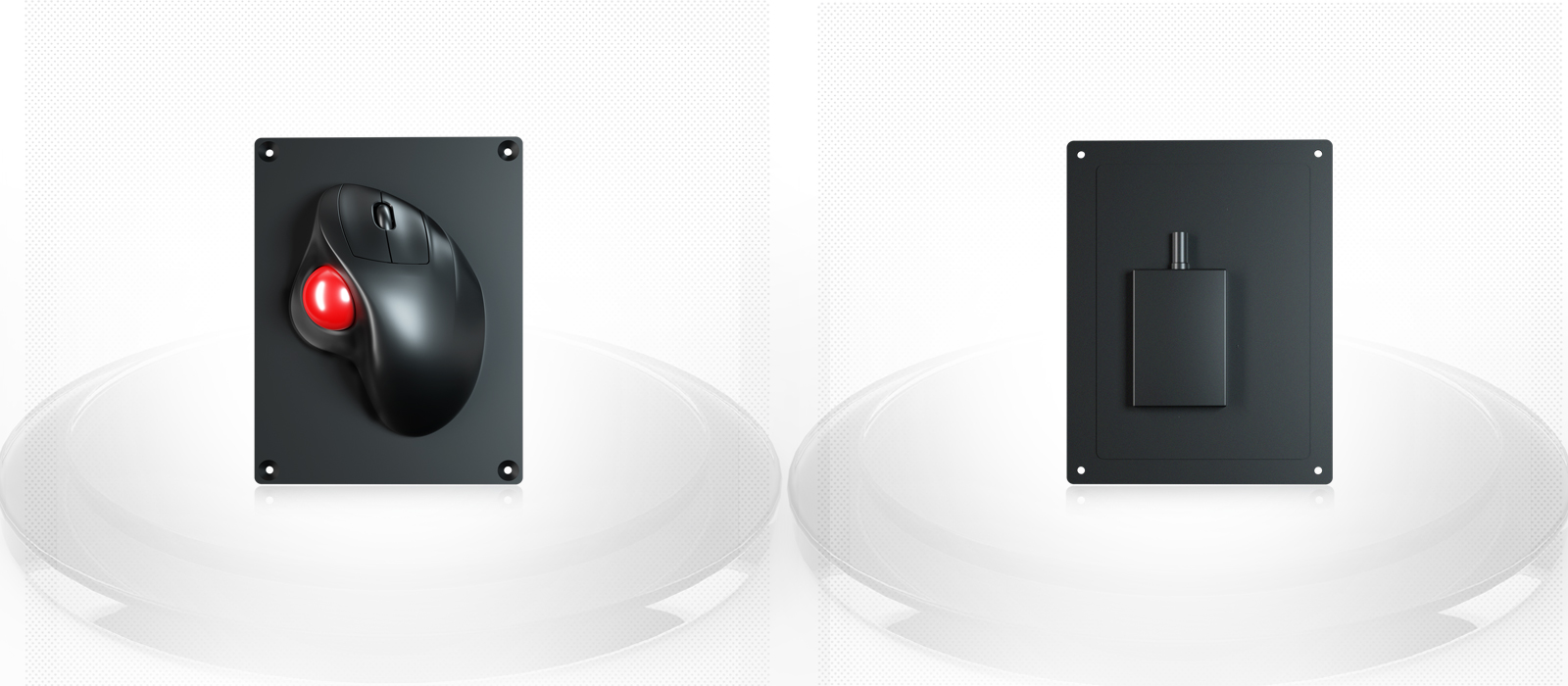

    Rugged Ergonomic Trackball Mouse 34mm Military Optical Trackball Module


    Rugged Ergonomic Trackball Mouse With 34mm Military Optical Trackball Module


    DESCRIPTION: IPX6 rated ergonomic military thumb ball with 3 mouse buttons for right/left clicking, as well as middle wheel for scrolling function, integrated with a 34mm optical trackball module with 400~1000 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, the DPI can be automatically adjusted before ex-factory and switched by sensing the moving speed of the trackball (resolution of 400, 800, 1000 optional) to meet requirements. With fully sealed and CNC aluminum rugged back plate, oxidized painting surface treatment, wear-resistant, antibacterial, and anti-salt spray features. With four sinking holes for top panel mounting solution and 4 x R2 angles to be smooth and scratch proof. USB output. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), with strong anti-interference and low radiation ability. Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.


    DIMENSIONS: 129.0mm x 172.0mm(top panel)


    MECHANICAL DATA
    Keys3 keys
    Key switchMicro switch technology
    Actuation Force2.5N±0.2N
    Trackball34mm ergonomic handheld thumb ball
    Trackball lifespan> 2 millions scrolling
    Protection levelIPX6
    G.W.≈0.70KGs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating80mA
    EMC StandardMIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
    Lifespan> 5 years
    InterfaceUSB
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    Meet MIL-STD-461G (EMC, EMI, EMS, ESD):
    1CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
    2CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
    3CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
    4CS106 Conducted Susceptibility, Transients, Power Leads
    5CS112 Electrostatic Discharge Susceptibility
    6CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
    7CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
    8CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
    9RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
    10RE102 10kHz - 18GHz Radiated Emissions, Electric Field
    11RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
    12RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
    MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-40℃ to +75℃
    Storage temperature-45℃ to +85℃
    Operating RH3%~95%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS, CE, FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
    Protection LevelIPX6
    Key Lifespan>1 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
