    IPX6 Military Grade Ergonomic Trackball Mouse With 3 Buttons 34mm Optical Trackball Module

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M129-OTB-3B
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

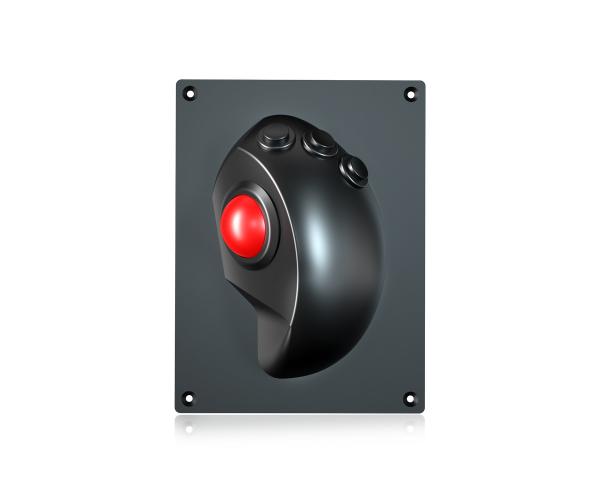

    IPX6 Military Grade Ergonomic Trackball Mouse With 3 Buttons 34mm Optical Trackball Module

    Ergonomic Trackball Mouse With 3 Buttons 34mm Optical Trackball Module Of IPX6 Military Grade


    DESCRIPTION: IPX6 rated ergonomic thumb ball with 3 mouse buttons for right/left clicking, as well as middle key, integrated with a 34mm optical trackball module with 800~2400 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, the DPI can be automatically adjusted before ex-factory and switched by sensing the moving speed of the trackball to meet requirements. With fully sealed and CNC aluminum rugged back plate, oxidized painting surface treatment to be wear-resistant, antibacterial, and anti-salt spray etc. With four sinking holes for top panel mounting solution. USB output or other customized connector upon request. Designed to meet MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), with strong anti-interference and low radiation ability. Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.


    DIMENSION: 129.0mm x 172.0mm x 44.3mm (L x W x H)


    MECHANICAL DATA
    Keys3 keys
    Key switchMicro switch technology
    Key Travel1.20mm±0.10mm
    Actuation Force2.5N±0.2N
    Trackball34mm ergonomic handheld optical thumb ball
    G.W.≈0.80KGs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating80mA
    EMC StandardEN 55032:2015, EN 55035:2017
    Lifespan> 5 years
    InterfaceUSB
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH3%~95%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS, CE, FCC, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
    Protection LevelIPX6
    MTBF>20000H
    MTTR<30min
    APPLICATIONVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
