    IP65 Vandal Proof Trackball Pointing Device 50mm Removable Laser Trackball

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B110-50-LTB-DWP
    Certification : CE, RoHS, FCC, ESD, REACH, IP67, IP68
    Price : To be quoted
    Delivery Time : ASAP Within 1-2 weeks upon payment confirmed
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    • Product Details
    • Company Profile

    IP65 Vandal Proof Trackball Pointing Device 50mm Removable Laser Trackball

    IP65 Vandal Proof Trackball Pointing Device 50mm Removable Laser Trackball

    Product Description:

    Trackball Pointing Device

    IP65 dynamic vandal proof trackball with IP68 rated washable 50.0mm removable laser trackball module with black hardened black resin ball with 1200DPI resolutions, with sealed 3 metal mouse buttons for left and right clicking, middle scrolling button with ball rolling, 1.5 mm top stainless steel plate with threaded bolts for top panel mounting solution, high quality durable black titanium electroplated on the top stainless steel plate optional. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

    Dimension: 110.0mm x 126mm (top panel)

    Technical Parameters:

    MECHANICAL DATA
    Keys3 keys
    Key travel1.40mm
    Actuation Force2.5N±0.2N
    Trackball50mm removable laser trackball with +1200DPI resolutions
    Trackball lifespan> 2 millions scrolling
    G.W.0.50KGs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating80mA
    EMC StandardEN 55032:2015, EN 55035:2017
    Lifespan> 5 years
    InterfaceUSB
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH3%~95%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS, CE, FCC, ESD
    Protection LevelIP65 dynamic (front panel)
    Key Lifespan>1 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONIndustrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

    Packing and Shipping:

    The Trackball Pointing Device is carefully packaged to ensure safe and secure delivery to our customers.

    The packaging process includes the following steps:

    • The device is first placed in a protective foam layer to prevent any damage during transportation.
    • Next, the foam layer is placed in a sturdy cardboard box, which is designed to withstand the rigors of shipping.
    • The box is sealed with tape and labeled with the necessary shipping information, including the recipient's address and tracking number.
    • For international shipments, the necessary customs forms and documentation are also included.

    Once the packaging process is complete, the device is ready to be shipped to its destination. We offer various shipping options to meet our customers' needs, including standard and expedited shipping.

    Our shipping team takes great care in handling and ensuring the safe delivery of each package. However, in the rare event that any damage occurs during shipping, our product is covered by a warranty and can be replaced or repaired at no additional cost to the customer.

    Thank you for choosing our Trackball Pointing Device. We are committed to providing a high-quality product and ensuring it reaches you in perfect condition.

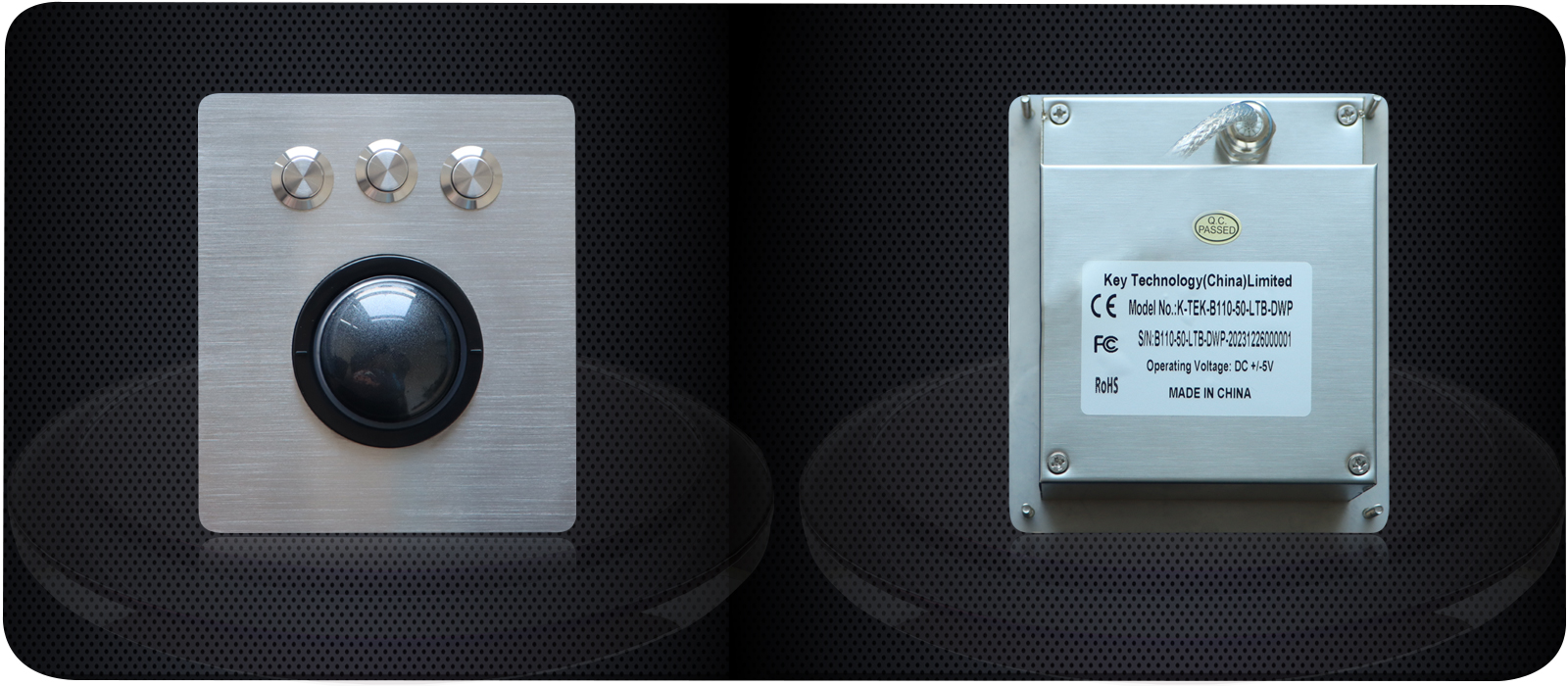

    Trackball pointing device actual photo
