Compact Format Military Keyboard With 69 Keys And Ergonomic Trackball Mouse

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Compact Format Military Keyboard With 69 Keys And Ergonomic Trackball Mouse from wholesalers

    Buy cheap Compact Format Military Keyboard With 69 Keys And Ergonomic Trackball Mouse from wholesalers
    • Buy cheap Compact Format Military Keyboard With 69 Keys And Ergonomic Trackball Mouse from wholesalers
    • Buy cheap Compact Format Military Keyboard With 69 Keys And Ergonomic Trackball Mouse from wholesalers
    • Buy cheap Compact Format Military Keyboard With 69 Keys And Ergonomic Trackball Mouse from wholesalers

    Compact Format Military Keyboard With 69 Keys And Ergonomic Trackball Mouse

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M316-OTB-151B-FN-ML
    Certification : CE, RoHS, FCC, ESD, REACH, IP67, IP68
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 1-2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Compact Format Military Keyboard With 69 Keys And Ergonomic Trackball Mouse


    Military Keyboard Compact Format with 69 Keys and Ergonomic Trackball Mouse


    MILITARY KEYBOARD DESCRIPTION: 69 keys compact format IP65 dynamic sealed & ruggedized silicone rubber military keyboard integrated with a handheld ergonomic trackball mouse, with middle wheel, left/right buttons as well as one IPX6 rating 34mm optical trackball mouse at 800 DPI resolution for fast cursor moving, with 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise or mistyping, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, CNC aluminum housing with oxidized spraying painting for full black color treatment to be scratch proof, with 6 sinking holes for panel mount to user's device. Designed to Meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

    MILITARY KEYBOARD DIMENSIONS: 316.0mm x 160.0mm (L x W)


    MECHANICAL DATA
    Keys69 keys
    Switch Contact MaterialCarbon-on-gold key switch technology
    Key Top StyleProtuberant rectangular keys with tactile feeling
    Key Travel1.50mm±0.10mm
    Actuation Force1.5N±0.2N (pressure point )
    G.W.1.50KGs
    MILITARY KEYBOARD ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating30mA when backlight is off, 300mA with backlight on
    Meet MIL-STD-461G (EMC, EMI, EMS, ESD):
    1CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
    2CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
    3CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
    4CS106 Conducted Susceptibility, Transients, Power Leads
    5CS112 Electrostatic Discharge Susceptibility
    6CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
    7CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
    8CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
    9RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
    10RE102 10kHz - 18GHz Radiated Emissions, Electric Field
    11RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
    12RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
    MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
    Lifespan> 5 years
    InterfaceUSB, PS2 available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-40℃ to +75℃
    Storage temperature-45℃ to +85℃
    Operating RH3%~95%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    MILITARY KEYBOARD RELIABILITY
    RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
    Protection LevelIP65 (front panel)
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

    Packing and Shipping:

    Packaging and Shipping for Military Keyboard

    Our Military Keyboard is carefully packaged and shipped to ensure safe delivery to our customers.


    Packaging

    The Military Keyboard is packaged in a sturdy box made from recycled materials. The box is designed to protect the keyboard from any damage during transportation.
    Inside the box, the keyboard is wrapped in a layer of bubble wrap and securely placed in a foam insert. This ensures that the keyboard
    stays in place and is not damaged by any external forces.
    We also include a user manual and warranty card in the packaging for our customers' convenience.


    Shipping

    We offer fast and reliable shipping options for our customers to choose from. Our standard shipping method is through reputable couriers such as DHL or FedEx. This allows for timely delivery and package tracking.
    For customers located in remote areas, we also offer alternative shipping methods such as air or sea freight. However, please note that
    these options may take longer for delivery.
    Before shipping, each package is carefully inspected to ensure that the keyboard is in perfect condition.

    Conclusion

    We take great care in packaging and shipping our products to ensure that they reach our customers in pristine condition. We strive to provide the best customer experience and are committed to delivering our products in a safe and timely manner.

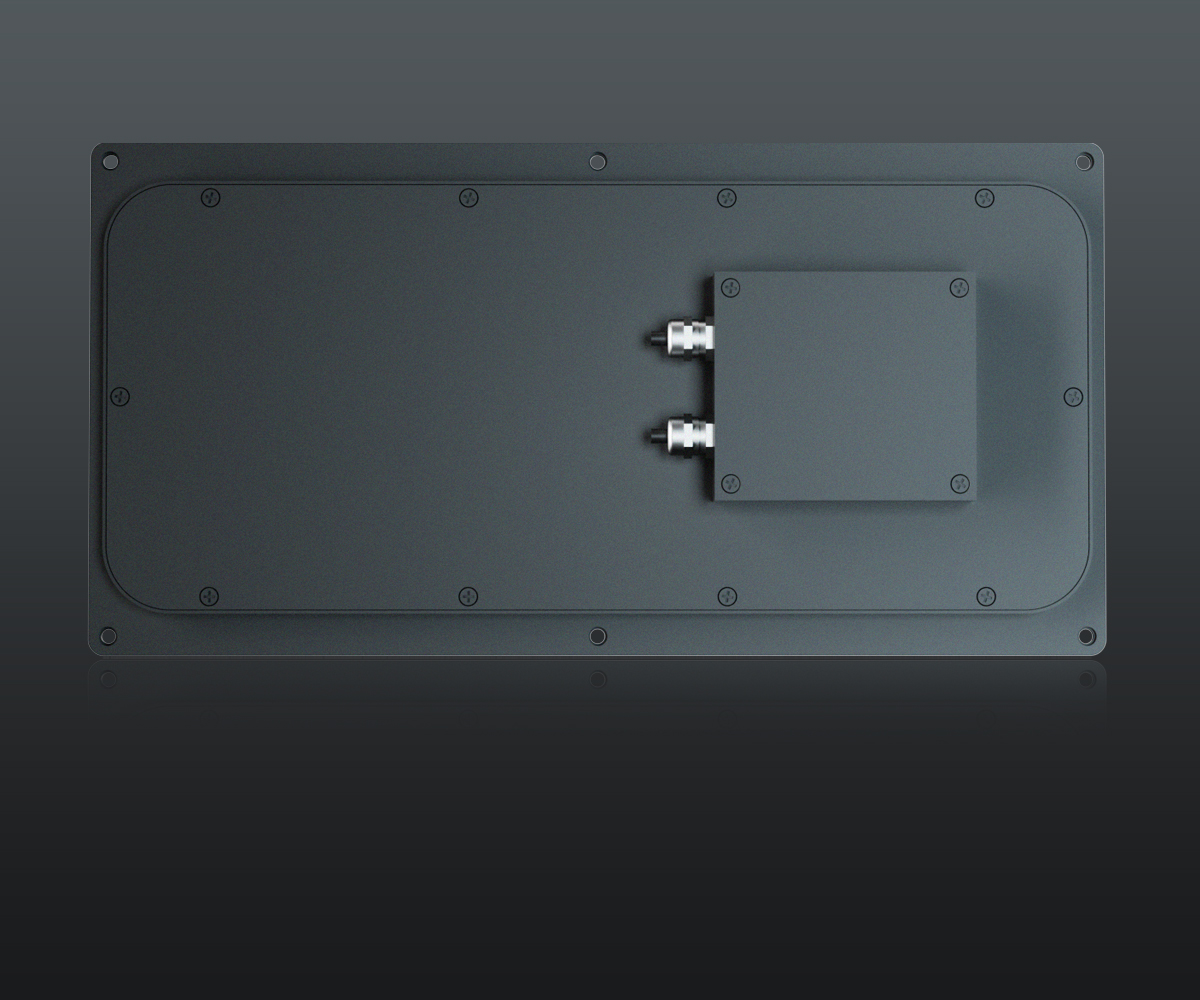

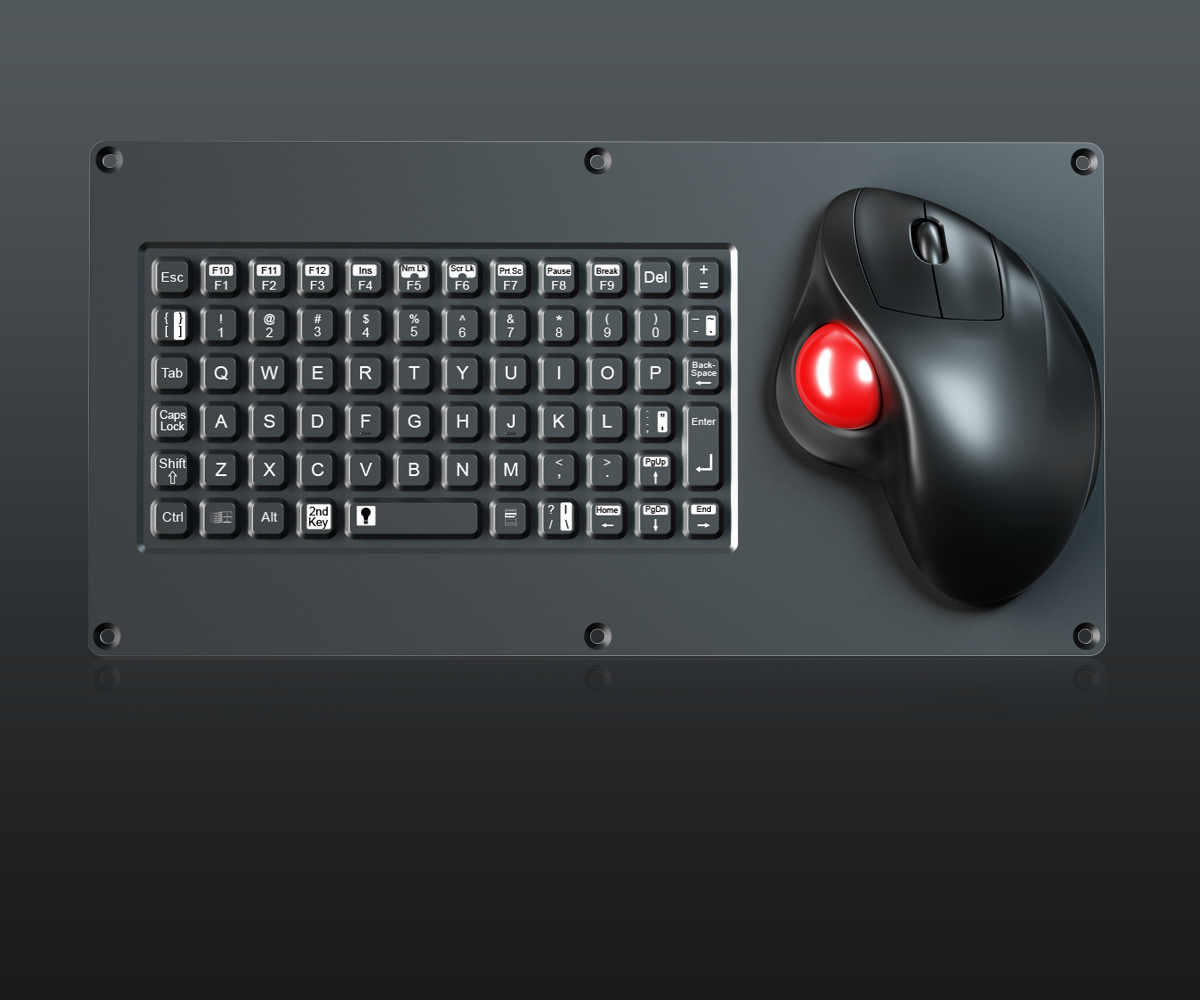

    MILITARY KEYBOARD ACTUAL PHOTOS
