    1U Rack Mount Keyboard Drawer With Touchpad Industrial Keyboard

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-1U-KB-TP-PL
    Certification : ROHS,CE,FECC
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    1U Rack Mount Keyboard Drawer With Touchpad Industrial Keyboard


    1U Rack Mount Keyboard Drawer With Touchpad Industrial Keyboard

    Silicone Industrial Keyboard Model NO: K-TEK-1U-KB-TP-PL

    Description: K-TEK-1U-KB-TP-PL is a rack mount keyboard drawer for keyboard and mouse control console; it is fit for standard 19” rack installation and can be operated with the computer.

    Dimension: 440.0mm×355.0mm×42.5mm


    Features

    • 1U height metal structure, fit for standard 19” rack mounting.
    • Ultra slim keyboard with 99 keys and numeric keyboard, standard D89F(USB and PS/2) port.
    • High resolution and high flexibility with touchpad; with two function buttons and scroll wheel.
    • It can directly connect and control one computer.
    • No software needed
    • Hot pluggable --add or remove computers without having to power down the switch

    MECHANICAL DATA
    Cable length1800mm
    Control Port (keyboard /mouse)1* DB9F
    PC Port (keyboard /mouse)

    1* USB type A

    1 * 6P Mini-DIN F(purple)

    1 * 6P Mini-DIN F(green)

    Key travel1.50±0.10mm
    Switch lifemore than 5 million of operations
    Touch padsealed and ruggedized tough touchpad
    Product Dimension (W × D × H)440.0mm×355.0mm×42.5mm
    Package Dimension (W × D × H)532.0mm×455.0mm×125.0mm
    G.W.7.5KGs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating50mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology PCB
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH30-90%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP65 static (front panel)
    Vandal resistantIK08
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSIndustrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

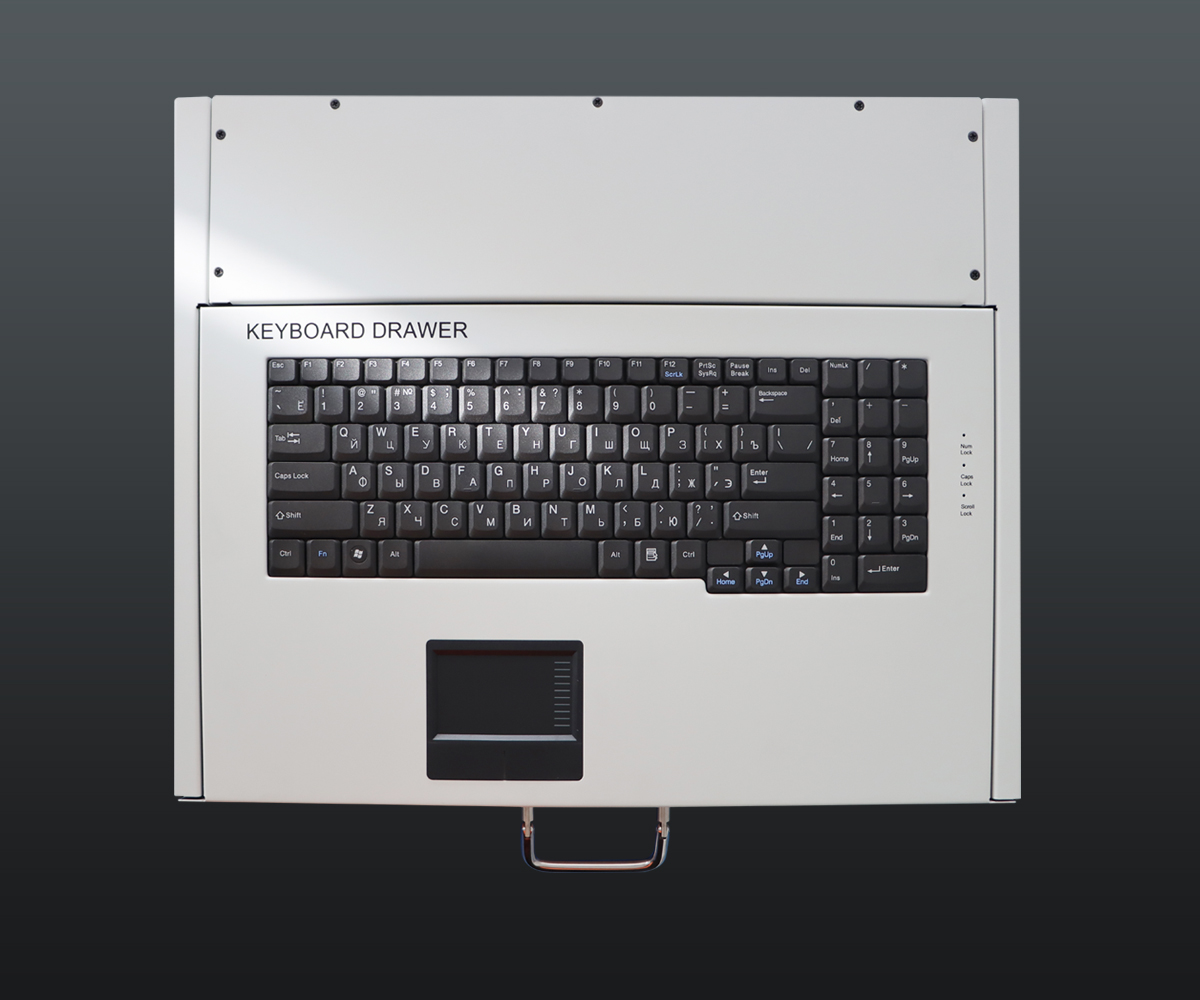

    Front View For Drawer Keyboard


    Back View For Drawer Keyboard
