    Rugged Military Keyboard MIL-STD-461G And MIL-STD-810F Dual PS2 Interface With Touchpad

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M275TP-FN-BL-ML
    Certification : ROHS,CE,FECC
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Rugged Military Keyboard MIL-STD-461G And MIL-STD-810F Dual PS2 Interface With Touchpad



    Rugged Military Keyboard MIL-STD-461G And MIL-STD-810F Compliant With Touchpad

    Rugged Military Keyboard Model NO: K-TEK-M315TP-FN-BL-NV-151B-PS2

    DESCRIPTION FOR RUGGED MILITARY KEYBOARD : 89 keys IP65 dynamic sealed & durable embedded military silicone rubber keyboard with sealed and ruggedized tough touchpad for fast and accurate cursor position, with built-in military grade PCB module, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard

    from PC, top panel mount solution, with exposed copper treatment surrounding the edges of backside PCB and designed without silicone rubber around the PCB edges for optimizing the sealing with cabinet and preventing electromagnetic leakage from the device, adjustable white backlight included. Built to meet MIL-STD-810F environmental adaptability (wide temperature, shock, salt mist, vibration, fungus, humidity, direct rain etc.), and MIL-STD-461G (EMC, EMI, EMS, ESD etc.) optional, which also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

    DIMENSION: 283.00mm x 177.7mm (L x W)

    MECHANICAL DATA
    Keys89 keys (including 2 mouse buttons)
    Key top styleProtuberant rectangular keys with tactile feeling
    Switch Contact Materialcarbon-on-gold key switch technology
    Key travel1.50mm±0.10mm
    Actuation Force1.5N±0.2N
    Switch lifemore than 5 million of operations
    Touch padsealed and ruggedized tough touchpad
    Touchpad coverComposite
    Mutual capacitance sensing
    X/Y axis location detection resolution40 Counts /mm
    X/Y position reportrelative
    Output (self-detectable depending on cable)USB
    Tracking speedMaximum 1,016 m/sec
    Power supply voltage5VDC ± 0.25V
    Current rating (active mode)< 10 mA
    G.W.0.80KGs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating30mA when backlight is off, 300mA with backlight on
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    InterfaceUSB
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-40℃ to +75℃
    Storage temperature-45℃ to +85℃
    Operating RH3%~95%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity, direct rain etc.)
    Protection LevelIP65 dynamic (front panel)
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

    Front View For Rugged Military Keyboard

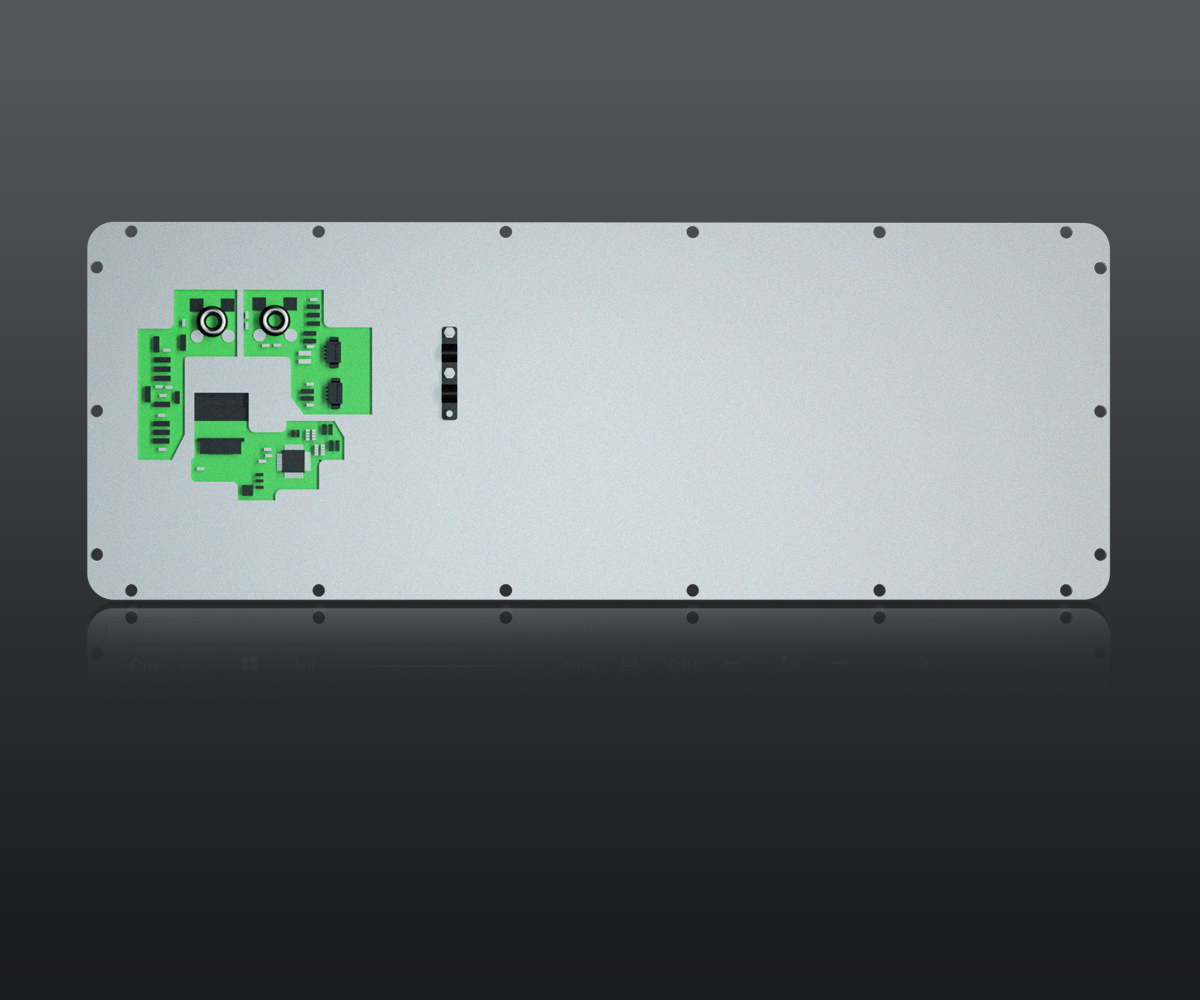

    Back View For Rugged Military Keyboard
