    Ultra Thin Ruggedized Keyboard With Sealed Touchpad And Military Grade PCB

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M334KP-FN-BL-IT-ML-DWP+M73TP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Ultra Thin Ruggedized Keyboard With Sealed Touchpad And Military Grade PCB


    Ultra Thin Ruggedized Keyboard with Sealed Touchpad and Military Grade PCB


    Model NO: K-TEK-M334KP-FN-BL-IT-ML-DWP+M73TP

    DESCRIPTION FOR RUGGEDIZED KEYBOARD: 101 keys IP65 dynamic sealed and rugged durable embedded ultra thin chiclet keyboard with polymer keys, sealed and ruggedized touchpad with 2 mouse buttons for left/right clicking, 12 function keys(F1, F2, ... F12) are on the top line for easy operation.It is made of CNC aluminum alloy front plate + PC keycaps + carbon contact as well as military grade PCB, with carbon-on-gold key switch technology with 1.20mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mounting with sinking holes solution. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC and avoid mis-operation or mistyping. Adjustable white backlight included. Designed to meet MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), and MIL-STD-461G-EMC-EMI-EMS-ESD (optional), as well as military standards: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.


    DIMENSION: Keyboard: 334.0mm x 118.0mm (L x W), Touchpad: 73.0mm x 76.0mm(Lx W)


    MECHANICAL DATA
    Keys101 keys + 2 mouse buttons, durable and robust polymer keys
    Key top styleProtuberant rectangular keys with tactile feeling
    Key technologycarbon-on-gold key switch technology
    Key travel1.20mm±0.10mm
    Actuation Force1.0N±0.2N for normal keys and 1.5N±0.2N for Enter/Backspace/Shift/Capslock/Tab etc. keys
    Touch padsealed & ruggedized tough touchpad
    Touchpad coverComposite
    Mutual capacitance sensing
    X/Y axis location detection resolution40 Counts /mm
    X/Y position reportrelative
    Tracking speedMaximum 1,016 m/sec
    Power supply voltage5VDC ± 0.25V
    Current rating (active mode)< 10 mA
    G.W.≈0.90kgs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating30mA when backlight is off, 300mA with backlight on
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    InterfaceUSB
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-40℃ to +75℃
    Storage temperature-45℃ to +85℃
    Saline mist96h, IEC60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    Humidity3%~95%
    Atmospheric pressure60-106Kpa
    RELIABILITY
    RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
    Protection LevelIP65 dynamic (front panel)
    Vandal resistantIK09
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONVehicle, aerospace,defense, maritime, radar, console, portable rugged laptop,UAV ground station etc.

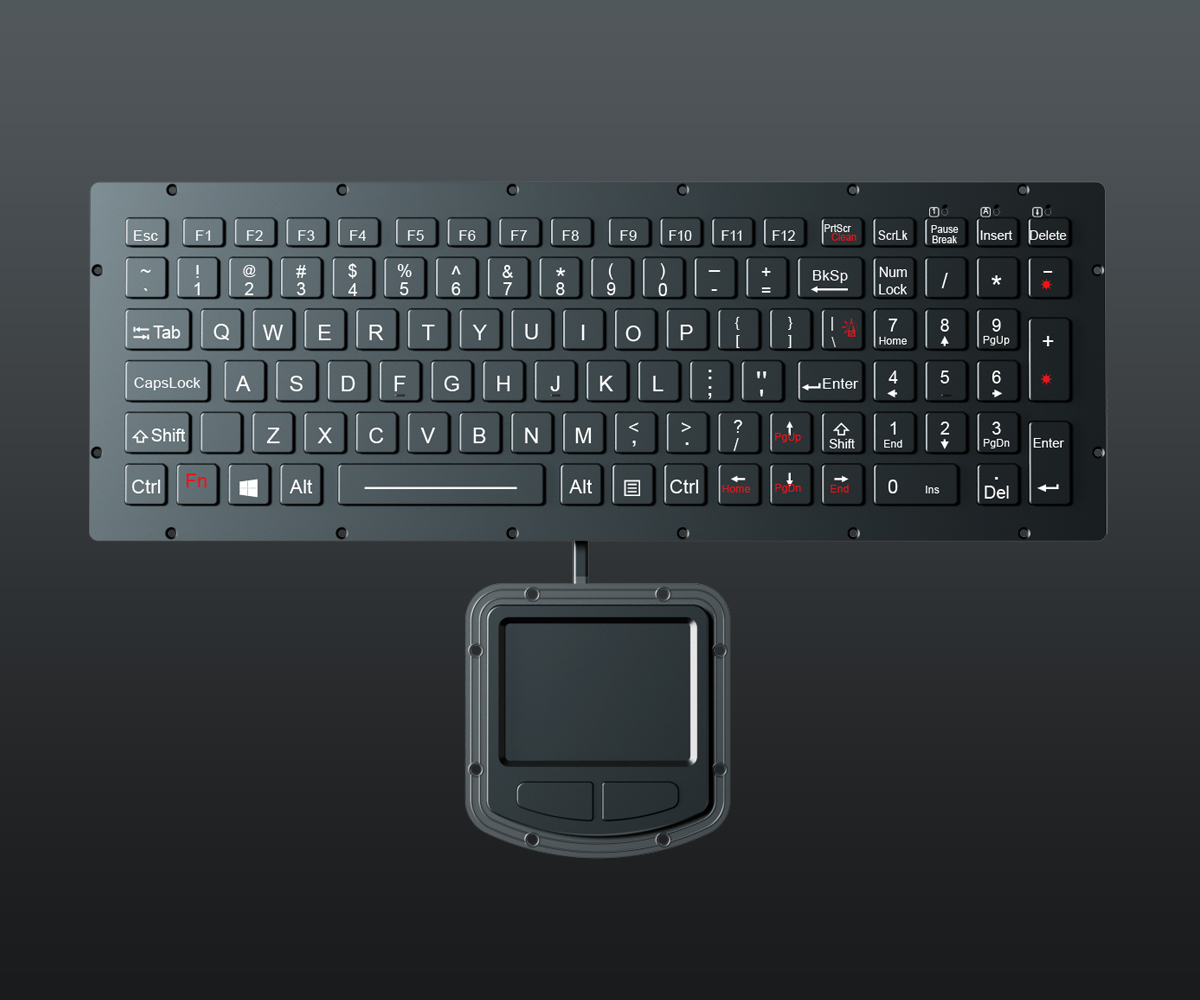

    Actual Photos For Ruggedized Keyboard
