    86 Keys IP65 ATM Machine Keyboard Vandal Proof Stainless Steel Kiosk

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A361-MTB-FN-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    86 Keys IP65 ATM Machine Keyboard Vandal Proof Stainless Steel Kiosk

    86 Keys IP65 ATM Machine Keyboard Vandal Proof Stainless Steel Kiosk

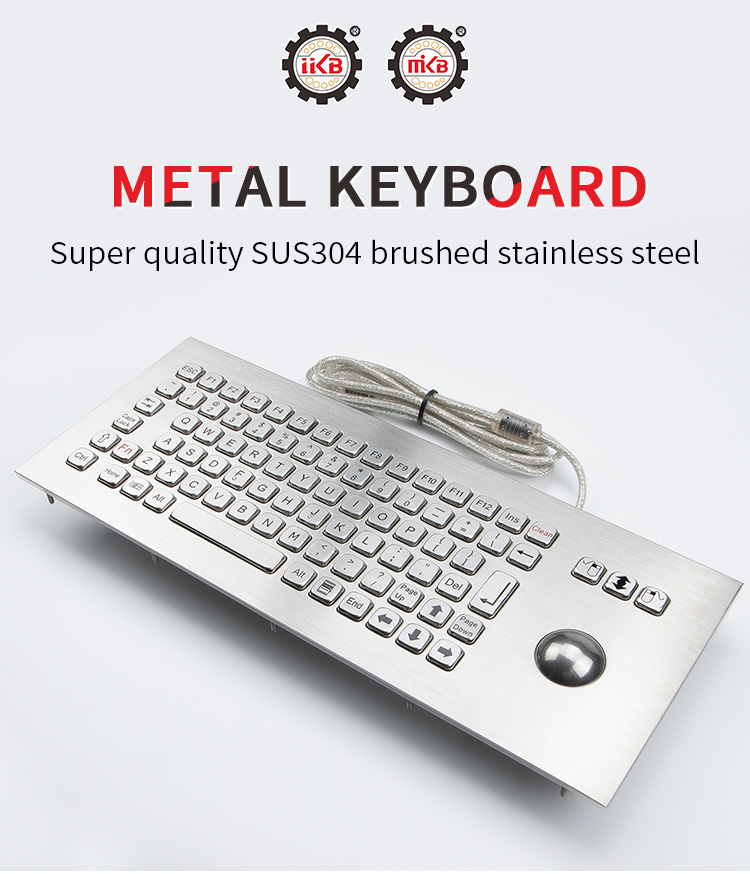

    Ruggedized Industrial Keyboard With Built In Trackball Vandal Proof

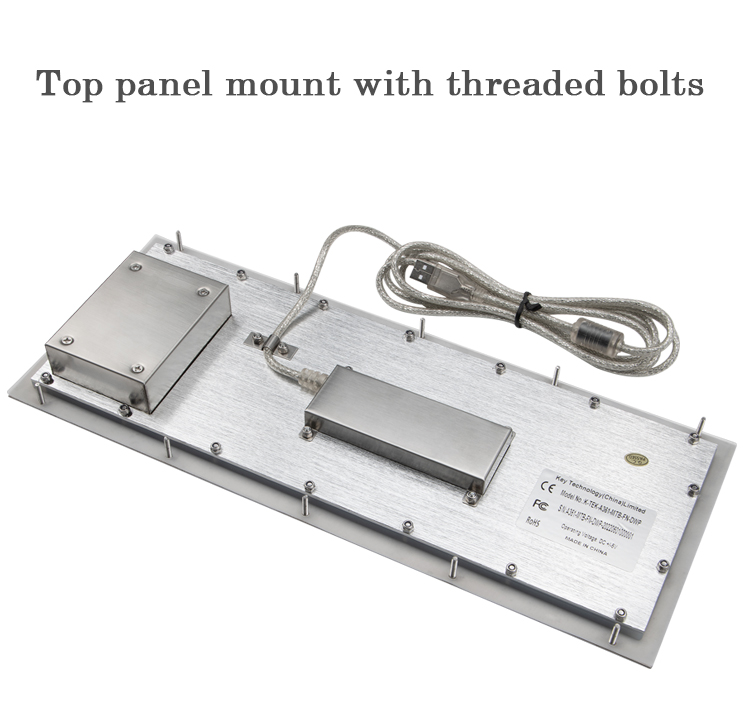

    DESCRIPTION: 86 keys (including 3 mouse buttons) compact format IP65 vandal proof stainless steel industrial keyboard with IP65 38.0mm stainless steel mechanical trackball module with 400 DPI resolutions for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, one complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, top stainless steel plate with side threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.


    DIMENSIONS: 361.0mm x 145.0mm (top panel)


    METAL KEYBOARD MECHANICAL DATA
    Actuator/keys86 keys (including 3 mouse buttons)

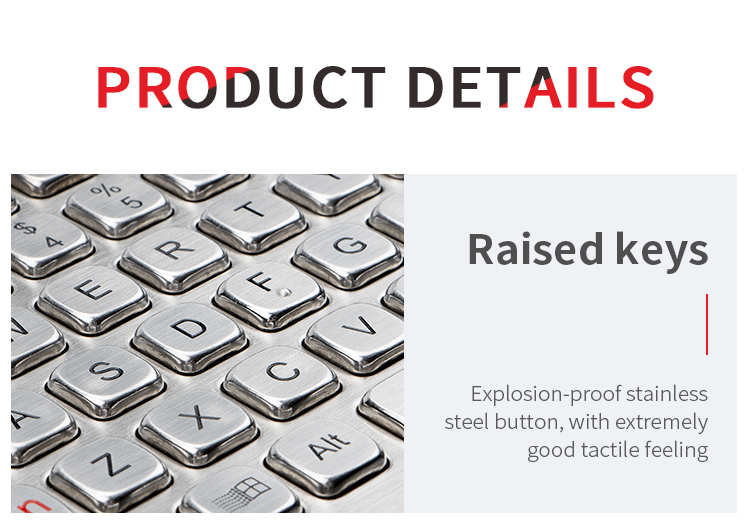

    Key top styleProtuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
    Key travel1.50±0.10mm
    Actuation Force1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point)
    Front Plate1.5mm thickness super quality brushed stainless steel
    Back Plate3.0mm thickness brushed & oxidized aluminium
    Switch lifemore than 5 million of operations
    Tracker ball38.0mm mechanical trackball module
    G.W.2.00KGs
    INDUSTRIAL KEYBOARD ELECTRICAL DATA
    Supply Voltage+5V DC ± 5%
    Current Rating50mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology PCB
    InterfacePS2, USB available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH30-90%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    KEYBPARD RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP65 dynamic (front panel)
    Vandal resistantIK08
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSIndustrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
