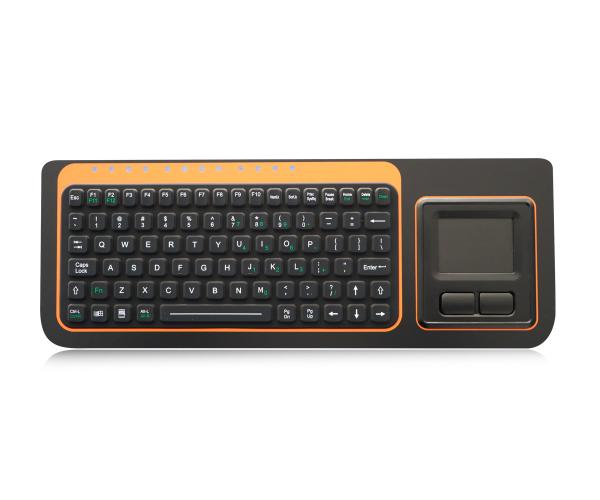

    Ruggedized Tough Industrial Silicone Keyboard With Sealed Touchpad

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M418TP-FN-BL-ML-OEM
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Ruggedized Tough Industrial Silicone Keyboard With Sealed Touchpad

    Ruggedized Tough Industrial Silicone Keyboard With Sealed Touchpad


    Industrial Silicone Keyboard


    DESCRIPTION: 85 keys IP65 dynamic sealed and ruggedized silicone rubber keyboard with sealed & ruggedized tough touchpad,

    12 FN keys (F1, F2...F11, F12) are on top line for easy operation, with carbon-on-gold key switch technology with long stroke (1.50mm±0.1mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN combination key to lock/disable the keyboard for easy cleaning without needing to take away the keyboard from PC, with ruggedized stainless steel plate and surface covered with a black film, top panel mounted with threaded bolts, backlight optional. Military level, meet MIL-STD-810F with wide temperature, shock, salt mist, vibration, fungus, humidity etc.

    INDUSTRIAL KEYBOARD WITH TOUCHPAD DIMENSIONS: 418.0mm x 154.2mm(L x W)


    MECHANICAL DATA
    Keys85 keys (including 2 mouse buttons)
    Key top styleProtuberant rectangular keys with tactile feeling
    Key travel1.50mm±0.10mm
    Actuation Force1.2N±0.2N (pressure point )
    Switch lifemore than 5 million of operations
    Touch padsealed and ruggedized tough touchpad
    Touchpad coverComposite
    More than Lifetime 10 million strokes
    Mutual capacitance sensing
    X/Y axis location detection resolution40 Counts /mm
    X/Y position reportrelative
    Output (self-detectable depending on cable)PS2 or USB
    Tracking speedMaximum 1,016 m/sec
    Power supply voltage5V ± 0.25V
    Current rating (active mode)< 10 mA
    G.W.1.80KGs
    RUBBER KEYBOARD ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating50mA when backlight is off, 300mA with backlight on
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-gold key switch technology
    InterfacePS2, USB available
    Cable lengthStandard 1.5m, other customized length available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-40℃ to +75℃
    Storage temperature-45℃ to +85℃
    Operating RH100%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    MILITARY KEYBOARD RELIABILITY
    RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
    Protection LevelIP65 dynamic (front panel)
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

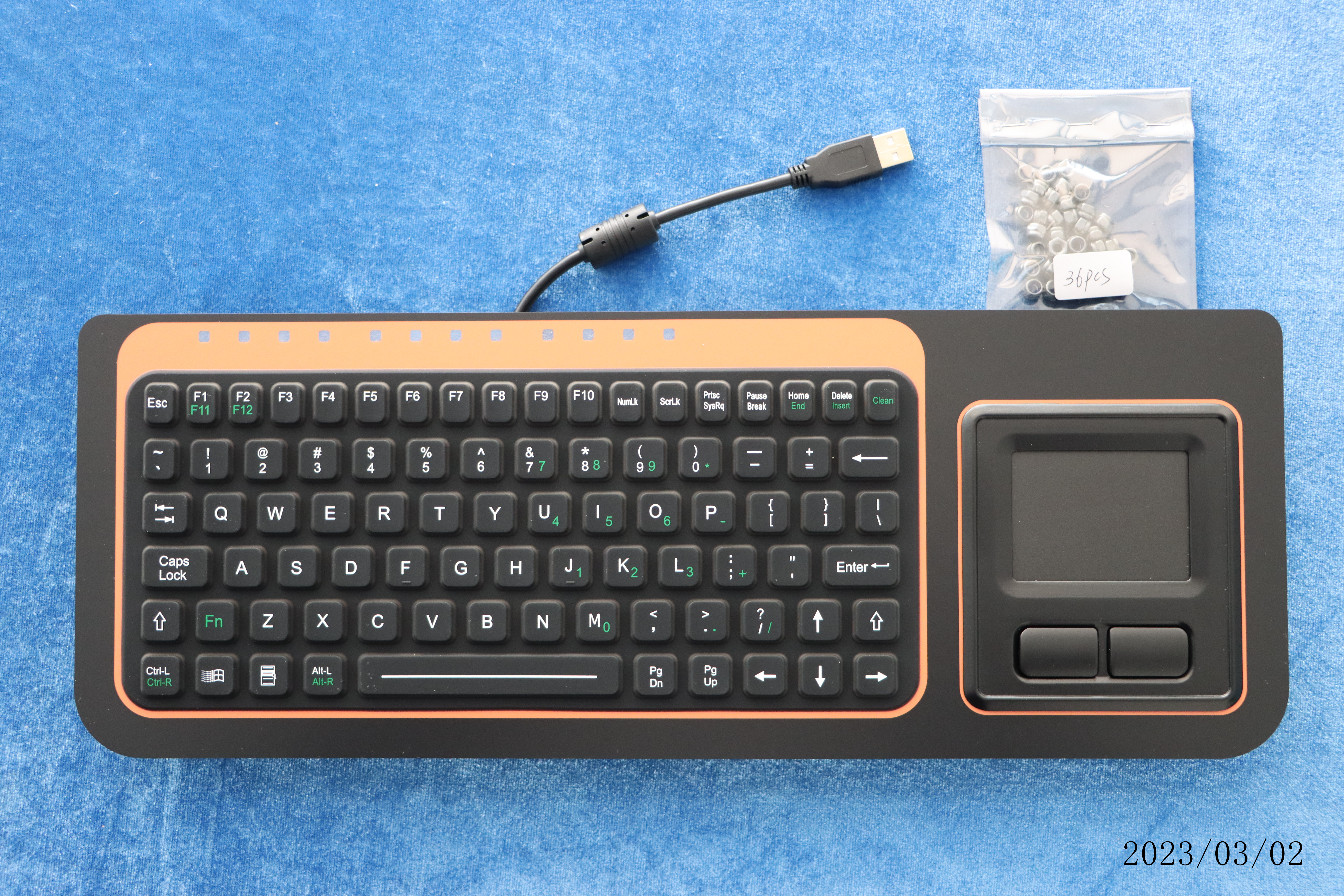

    ACTUAL PHOTOS
