    IP65 Compact Industrial Keyboard With Trackball Silicone Keys

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M405-38-MTB-60-FN-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

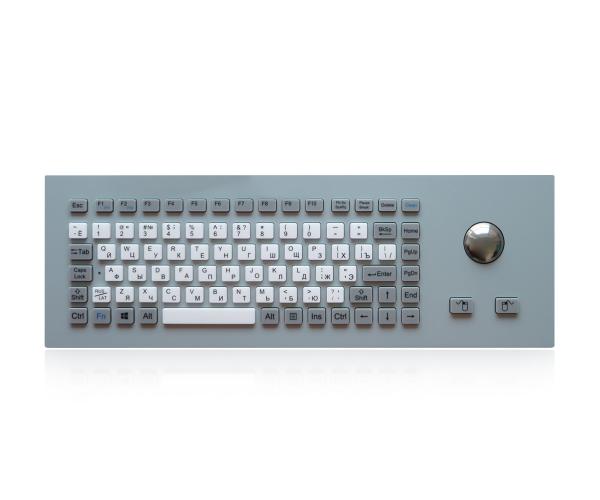

    IP65 Compact Industrial Keyboard With Trackball Silicone Keys

    IP65 Compact Industrial Keyboard With Trackball Silicone Keys


    Wired Keyboard With Trackball

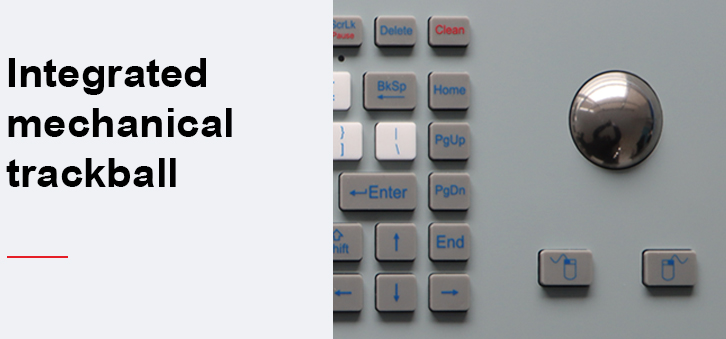

    DESCRIPTION: 88 keys compact format IP65 dynamic water proof vandal proof stainless steel industrial keyboard with silicone keys(white/grey color) for comfortable and quiet typing, with integrated IP65 static 38.0mm stainless steel mechanical trackball module in 400 DPI resolutions for fast and accurate cursor position(black hardened resin mechanical trackball module optional), 12 function keys (F1, F2, ...F12) are on the top line for easy operation, sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke (1.40mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise. One complete waterproof silicon rubber along stainless steel plate for easy mounting & sealing tightly with cabinet, top panel with threaded bolts for top panel mounted. High quality durable elegant grey spray-paint on the SUS304 front plate surface to withstand the corrosion from water/salt mist etc. 3 LEDs for CapsLock/Num Lock/Scroll Lock to indicate on/off, with brushed SUS304 stainless steel back plate and shielding boxes to protect electronics, FN + Clean keys to lock/disable the keyboard for easy cleaning without taking away the keyboard from PC, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc., MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) and MIL-STD-461G (EMC, EMI, EMS, ESD) optional.

    Dimensions: 405.0mm x 135.0mm (front panel)


    MECHANICAL DATA
    Keys88 keys (Including 2 mouse buttons)
    Key top styleProtuberant rectangular keys with tactile feeling
    Key Size12.5mm x 14.0mm
    Key travel1.40mm±0.10mm
    Actuation Force1.6 N±0.2N (pressure point )
    Switch lifemore than 5 million of operations
    Track ball:IP65 static 38.0mm mechanical trackball module with 400 DPI resolutions
    Front Plate:1.50mm thickness super quality brushed stainless steel with special elegant grey color
    Back Plate:1.50mm thickness super quality brushed stainless steel
    G.W.1.60KG
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating50mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialCarbon-on-Gold key switch technology with gold PCB
    InterfacePS2, USB available
    Cable lenghStandard 2.0m, customized length available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH100%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY

    RoHS Compliant, CE and FCC, ESD;

    MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) , MIL-STD-461G (EMC, EMI, EMS, ESD) optional.

    Protection LevelIP65 dynamic
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
    FAQ
    www.rugged-key.com
    www.key-tek.cn
    www.ruggedized-keyboard.com

    Q: Are you trading company or manufacturer ?

    A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.

    Q: How long is your delivery time?

    A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.

    Q: Do you provide samples ?

    A: Yes, we could offer the sample of one quantity first before large quantity orders.

    Q: What is your terms of payment ?

    A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
