Brand Name : | IKB-MKB |
Model Number : | K-TEK-HTP65-USB+Key board+Key cap |
Certification : | CE, FCC, ROHS, IP65, IP68, ISO 9001-2015 |
Price : | to be quoted |
Payment Terms : | Full payment in advance, Western Union, T/T, Paypal |
Supply Ability : | 3000psc/month |
Delivery Time : | ASAP Within 2 weeks upon payment confirmed |
Humanize Designed USB Industrial Touchpad Module With Buttons
industrial touchpad module
Description: K-TEK-HTP65-USB+Key board+Key cap is a high performance humanize designed touchpad module especially for Laptops, Notebooks and EPC products. Utilizing capacitive sensing technology to provide accurate cursor motion at X, Y directions through fingers. Function as complete computer mouse via USB interface. Plug-and-play. With multi-touch functionality included in difference with conventional mouse. USB interface, with 2 external mouse buttons.
DIMENSIONS: 65.0mm x 49.0 mm (L x W)
INDUSTRIAL TOUCHPAD TECHNICAL SPECIFICATION:
MECHANICAL DATA | |
Touch pad | 1.3mm thick PCB, containing polyester film |
Touchpad cover | Composite |
G.W. | 0.2KGs |
Dimension | 65.0mm x 49.0 mm (L x W) |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 10mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Interface | USB |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Saline mist | 96h, IEC60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
Humidity | 100% |
RELIABILITY | |
RoHS compliant, CE and FCC certified | |
Protection Level | IP65 (front panel) |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, rugged laptop, notebook, PC, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |

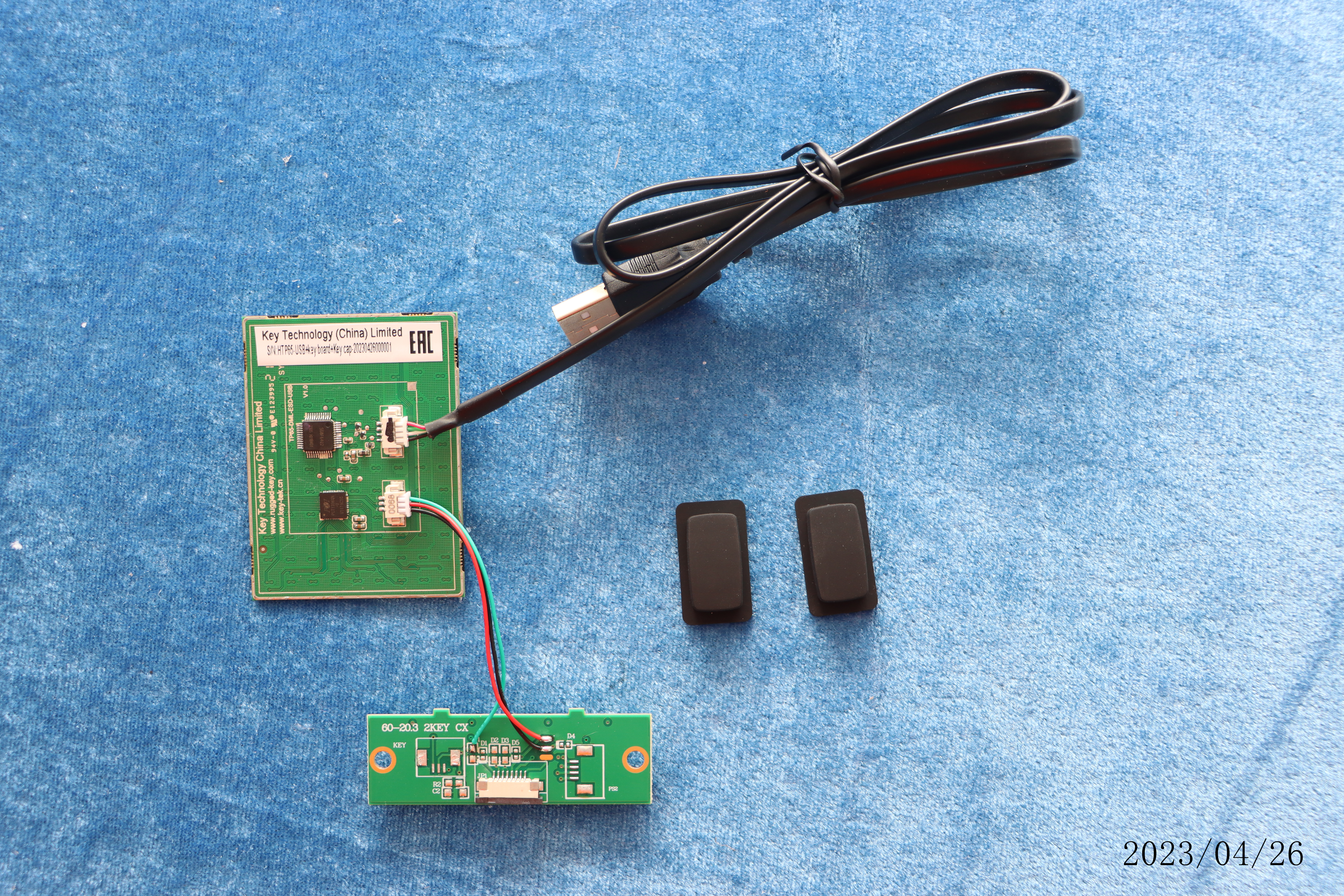

ACTUAL PHOTOS:
