    Force Sensing Resistor Trackball Pointing Device With IP65 Protection Rate

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B100-DHP-BL-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Force Sensing Resistor Trackball Pointing Device With IP65 Protection Rate

    Force Sensing Resistor Trackball Pointing Device With IP65 Protection Rate

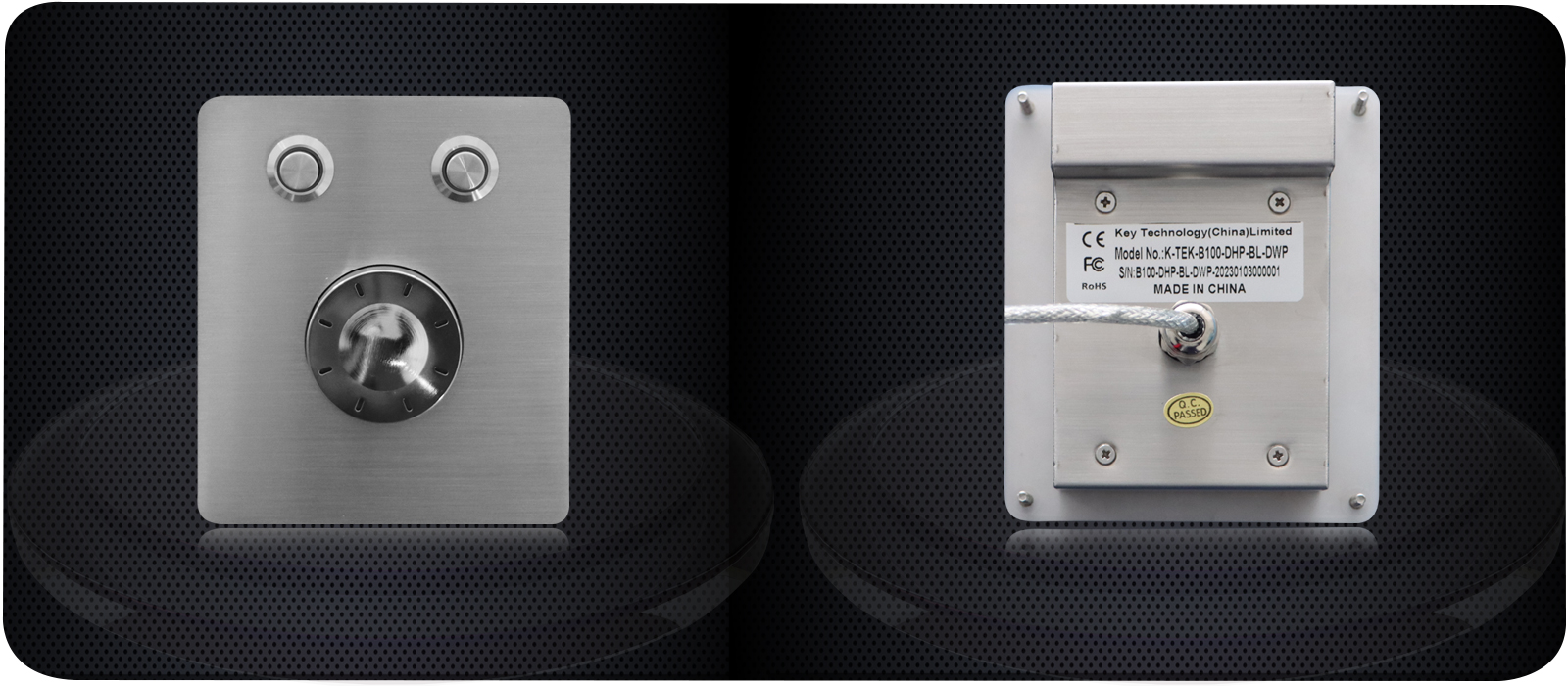

    DESCRIPTION: IP65 dynamic fully sealed and ruggedized force sensing resistor hula pointing device for fast and accurate cursor position, 2 backlighting mouse buttons for right & left clicking, with rubber sealing gasket under top stainless steel plate for easy sealing and tightly mounting with cabinet, stainless steel top plate with threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

    DIMENSIONS: 100.0mm x 116.0mm (L x W)


    MECHANICAL DATA

    Keys

    2 keys

    Key top style

    Sealed round keys

    Key travel

    2.80mm

    Actuation Force

    1.5N

    Switch life

    more than 5 million of operations

    G.W.

    0.50KGs

    ELECTRICAL DATA

    Supply Voltage

    DC +5V±5%

    Current Rating

    ≤30mA when backlight off, ≤50mA when backlight on

    EMC Standard

    EN 55032:2015 EN 55035:2017

    Lifespan

    > 5 years

    Interface

    PS2, USB available

    Cable length

    Standard 2.0m, customized length available

    OS

    All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

    ENVIRONMENTAL ADAPTABILITY

    Operating temperature

    -20℃ to +65℃

    Storage temperature

    -30℃ to +75℃

    Operating RH

    100%

    Atmospheric pressure

    60-106Kpa

    Saline mist

    96 hours, IEC 60512-6

    Damp heat test at +40℃

    21 days, IEC 60512-6

    Dry heat test at +85℃

    10 days, IEC 60512-6

    RELIABILITY

    RoHS, CE, FCC, ESD

    Protection Level

    IP65

    Key Lifespan

    >5 million actuations

    MTBF

    >20000H

    MTTR

    <30min

    APPLICATION

    Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
