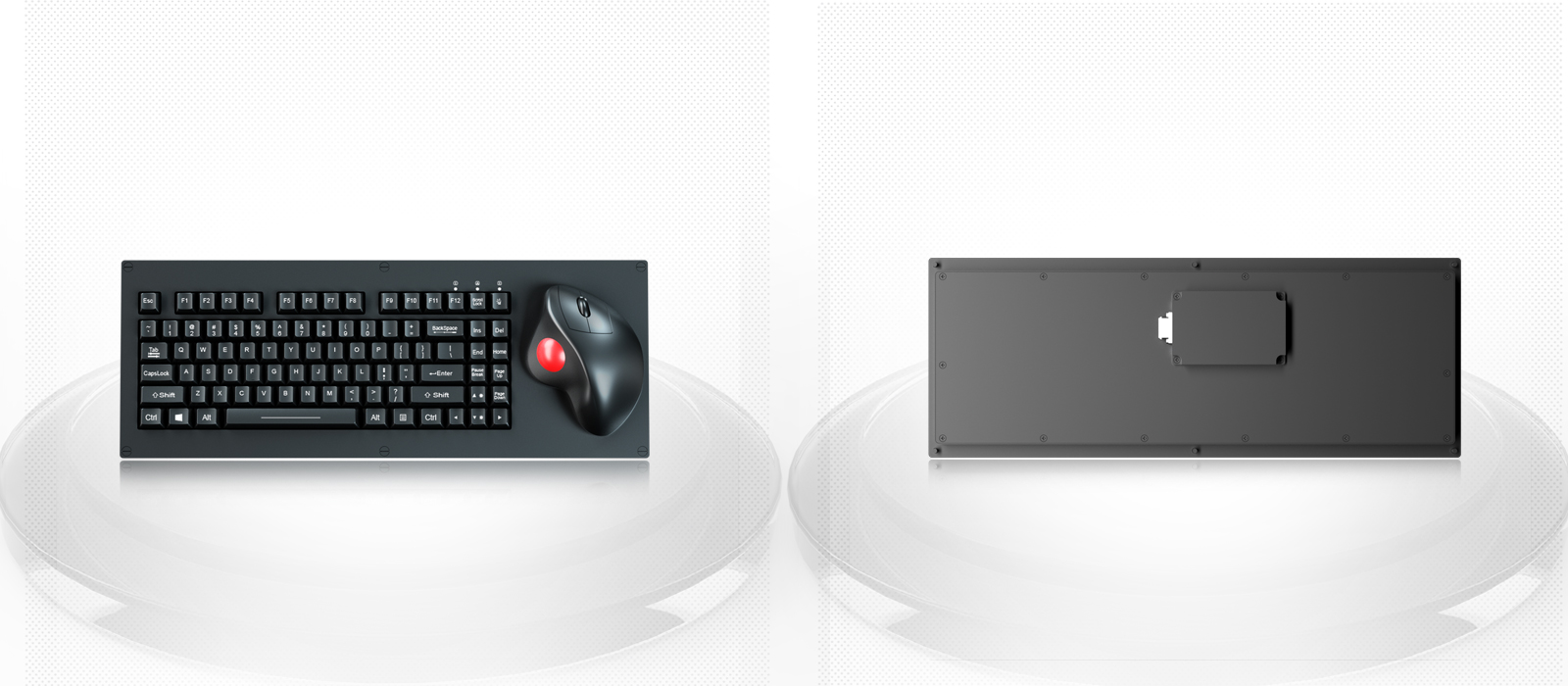

    IP54 Waterproof Mechanical Keyboard With Trackball Mouse

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M458-OTB-FN-MA-BL-NV-151B
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    IP54 Waterproof Mechanical Keyboard With Trackball Mouse


    IP54 Waterproof Mechanical Keyboard With Trackball Mouse

    RUGGED MECHANICAL KEYBOARD


    DESCRIPTION:IP54 static rated waterproof rugged durable embedded military mechanical keyboard with a IPX6 34mm optical thumb ball mouse at 500~1000 DPI resolution for fast cursor moving, with built-in integrated military grade PCB, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation. The high quality ruggedized aluminum alloy panel is processed by CNC, PC material button, with mechanical axis key switch and 4.00mm long stroke with extremely good tactile feeling for fast and accurate data input, with durable coating & antimicrobial surface, it can be used in harsh environments to well withstand bacteria, with six sinking holes for panel mount to user's device. Adjustable white backlight included. J14A-9ZJB aviation plug. Designed to Meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.), which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

    DIMENSION: 458.0mm x 172.0mm (L x W)



    MECHANICAL DATA
    Key86 keys + 2 mouse buttons + 1 middle wheel button + 1 optical trackball
    Key top styleProtuberant rectangular keys with tactile feeling.
    Key travel4.0mm±0.4mm
    Key technologymechanical axis key switch technology
    Actuation Force0.55N±0.15N (pressure point )
    Key Gram Force50±10gf
    G.W.2.50KGs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating≈50mA(with backlight off); ≈300mA(with backlight on)
    Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.:
    1CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
    2CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
    3CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
    4CS106 Conducted Susceptibility, Transients, Power Leads
    5CS112 Electrostatic Discharge Susceptibility
    6CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
    7CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
    8CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
    9RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
    10RE102 10kHz - 18GHz Radiated Emissions, Electric Field
    11RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
    12RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
    MIL-STD-810F (wide temperature, shock, vibration, humidity).
    Lifespan> 5 years
    InterfaceJ14A-9ZJB aviation plug, other interfaces can be customized
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-40℃ to +60℃
    Storage temperature-45℃ to +70℃
    Saline mist96h, IEC60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    Humidity100%
    Atmospheric pressure60-106Kpa
    RELIABILITY
    RoHS compliant, CE and FCC certified, MIL-STD-461G-EMC-EMI-EMS-ESD, and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.)
    Protection LevelIP54
    Key Lifespan>50 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
