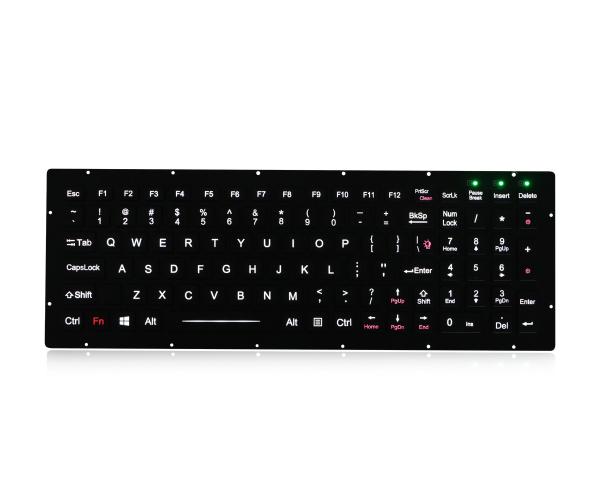

    Military Grade 101 Key Waterproof EMC Keyboard With Backlit Marine

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M334KP-FN-BL-IT-NV-151B-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Military Grade 101 Key Waterproof EMC Keyboard With Backlit Marine


    RUGGED KEYBOARD


    DESCRIPTION: 101 keys IP65 dynamic waterproof sealed and rugged durable embedded military keyboard with polymer keys, with built-in military grade PCB. 12 function keys(F1, F2, ... F12) on the top line, which is made of CNC aluminum alloy front plate + PC

    keycaps + carbon contact as well as military grade PCB, with carbon-on-gold key switch technology with key travel1.20mm with extremely good tactile feeling for fast and accurate data input without any noise, one complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet, top panel mount with sinking holes solution. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mis-typing. Adjustable white backlight included, meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environental adaptability, stability, compatibility, consistency, and continuity.


    Dimensions: 334.0mm x 118.0mm (L x W)

    MECHANICAL DATA
    Key101 keys, durable and robust polymer keys
    Key top styleProtuberant rectangular keys with tactile feeling
    Key technologyMilitary PCB with carbon-on-gold key switch technology
    Key size14.0mm x 10.0mm for FN keys, 14.0mm x 14.0mm for normal keys, 21.8mm x 14.0mm for Tab key, 28.0mm x 14.0mm for Capslock key, 68.0mm x 14.0mm for Space bar
    Key travel1.20mm±0.10mm
    Actuation Force1.0N±0.2N for normal keys and 1.5N±0.2N for Enter/Backspace/Shift/Capslock/Tab etc. keys
    Switch lifemore than 5 million of operations
    G.W.≈0.80kgs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating30mA when backlight is off, 300mA with backlight on
    Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.:
    1CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
    2CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
    3CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
    4CS106 Conducted Susceptibility, Transients, Power Leads
    5CS112 Electrostatic Discharge Susceptibility
    6CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
    7CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
    8CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
    9RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
    10RE102 10kHz - 18GHz Radiated Emissions, Electric Field
    11RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
    12RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
    MIL-STD-810F (wide temperature, shock, vibration, humidity).
    Lifespan> 5 years
    InterfaceUSB/PS2 optional
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-40℃ to +75℃
    Storage temperature-45℃ to +85℃
    Saline mist96h, IEC60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    Humidity100%
    Atmospheric pressure60-106Kpa
    RELIABILITY
    RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
    Protection LevelIP65 dynamic (front panel)
    Vandal resistantIK09
    Key Lifespan>5 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
