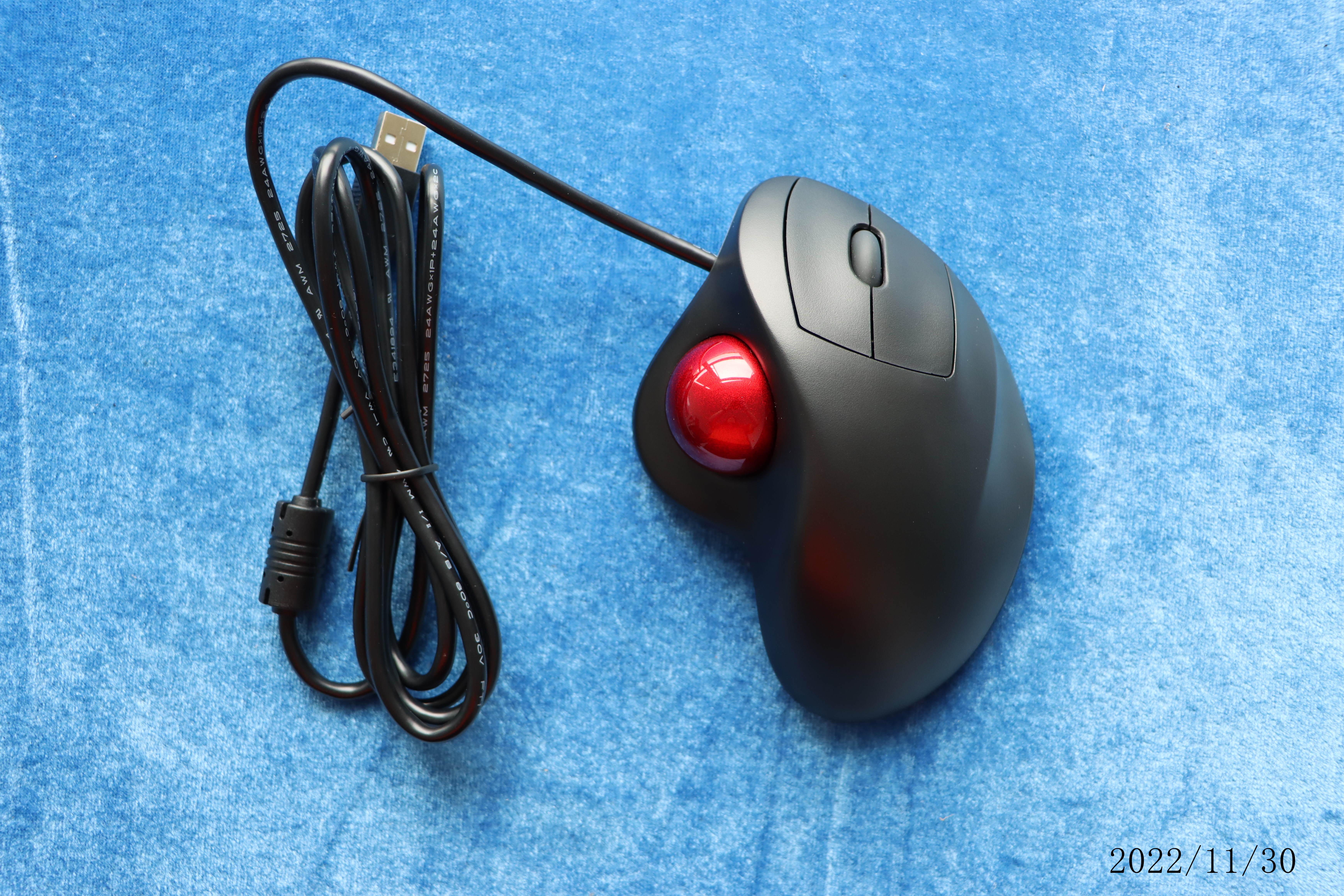

    IPX6 Military Grade Ergonomic Trackball Mouse With 3 Buttons 34mm Optical Trackball Module

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M100-OTB-NV-151B
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    IPX6 Military Grade Ergonomic Trackball Mouse With 3 Buttons 34mm Optical Trackball Module

    Ergonomic Trackball Mouse With 3 Buttons 34mm Optical Trackball Module Of IPX6 Military Grade


    DESCRIPTION: IPX6 rated ergonomic military mouse with 3 mouse buttons for right/left clicking, as well as middle wheel for scrolling function, integrated with a 34mm optical trackball module with 500~1000 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, the DPI can be automatically adjusted and switched by sensing the moving speed of the trackball (resolution of 500, 800, 1000 optional) to meet requirements. Panel mounting solution. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)

    DIMENSIONS: 136.8mm x 100.1mm(L x W)


    MECHANICAL DATA
    Keys3 keys
    Key switchOmron micro key switch technology
    Key travel1.20mm±0.10mm
    Actuation Force2.5N±0.2N
    Trackball34mm ergonomic handheld thumb ball
    Trackball lifespan> 2 millions scrolling
    G.W.≈0.30KGs
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating80mA
    Lifespan> 5 years
    InterfaceUSB/PS2 optional
    Cable lengthStandard 2.0m, customized length available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc:
    CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads
    CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads
    CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads
    CS106 Conducted Susceptibility, Transients, Power Leads
    CS112 Electrostatic Discharge Susceptibility
    CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection
    CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation
    CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads
    RE101 25Hz -100kHz Radiated Emissions, Magnetic Field
    RE102 10kHz - 18GHz Radiated Emissions, Electric Field
    RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field
    RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field
    MIL-STD-810F (wide temperature, shock, salt mist, vibration, salt mist, fungus, humidity).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-40℃ to +75℃
    Storage temperature-45℃ to +85℃
    Operating RH100%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS, CE, FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.)
    Protection LevelIPX6
    Key Lifespan>1 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSVehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
