    81 Keys Ruggedized Touchpad Membrane Keyboard With Gold On Gold Switch

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-D343TP-FN
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Price : to be quoted
    • Product Details
    • Company Profile

    81 Keys Ruggedized Touchpad Membrane Keyboard With Gold On Gold Switch


    DESCRIPTION: 81 keys compact format IP65 dynamic rated membrane industrial keyboard with function keys on the upper line, with sealed and ruggedized tough touchpad for fast and accurate cursor position, industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN+CLEAN key for easy cleaning via lock/disable the entire keyboard without needing to take away the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized aluminum or stainless steel back plate optional, with threaded bolts for top panel mounted solution.

    DIMENSIONS: 343.0mm x 125.0mm (top panel)


    MECHANICAL DATA
    Number of Keys81 keys (including 2 mouse buttons)
    Key switch Technologymetal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys
    Actuation Force3.5N±0.2N (press point)
    Key Travel0.45mm
    Key switch Lifetime1 mil. operations
    Mounting TypeTop panel mounted solution
    Colors2 (white, black)
    G.W.1.30KGs
    Key Dimensions (print area)14.0mm x 14.0mm
    Touch padsealed and ruggedized tough touchpad
    Touchpad coverComposite
    Methodcapacitive
    More than Lifetime 10 million strokes
    Mutual capacitance sensing
    X/Y axis location detection resolution40 Counts /mm
    X/Y position reportrelative
    Output (self-detectable depending on cable)PS2 or USB
    Tracking speedMaximum 1,016 m/sec
    Power supply voltage5VDC ± 0.25V
    Current rating (active mode)< 10 mA
    ELECTRICAL DATA
    Supply VoltageDC +5V±5%
    Current Rating50mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    InterfacePS2, USB available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH100%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS, CE, FCC
    Protection LevelIP65 dynamic
    Key Lifespan>1 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSIndustrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.

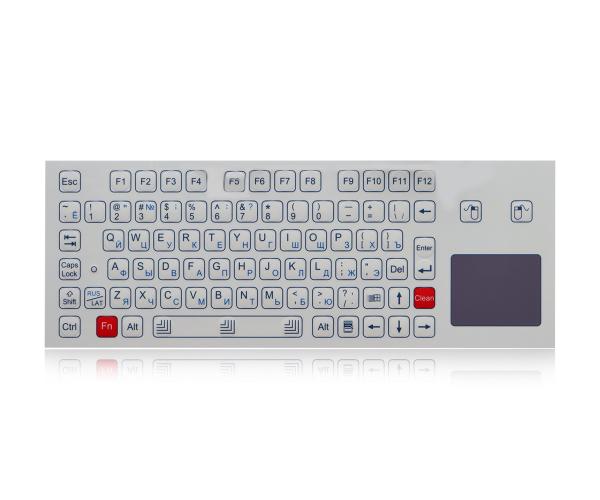

    Actual pictures:
