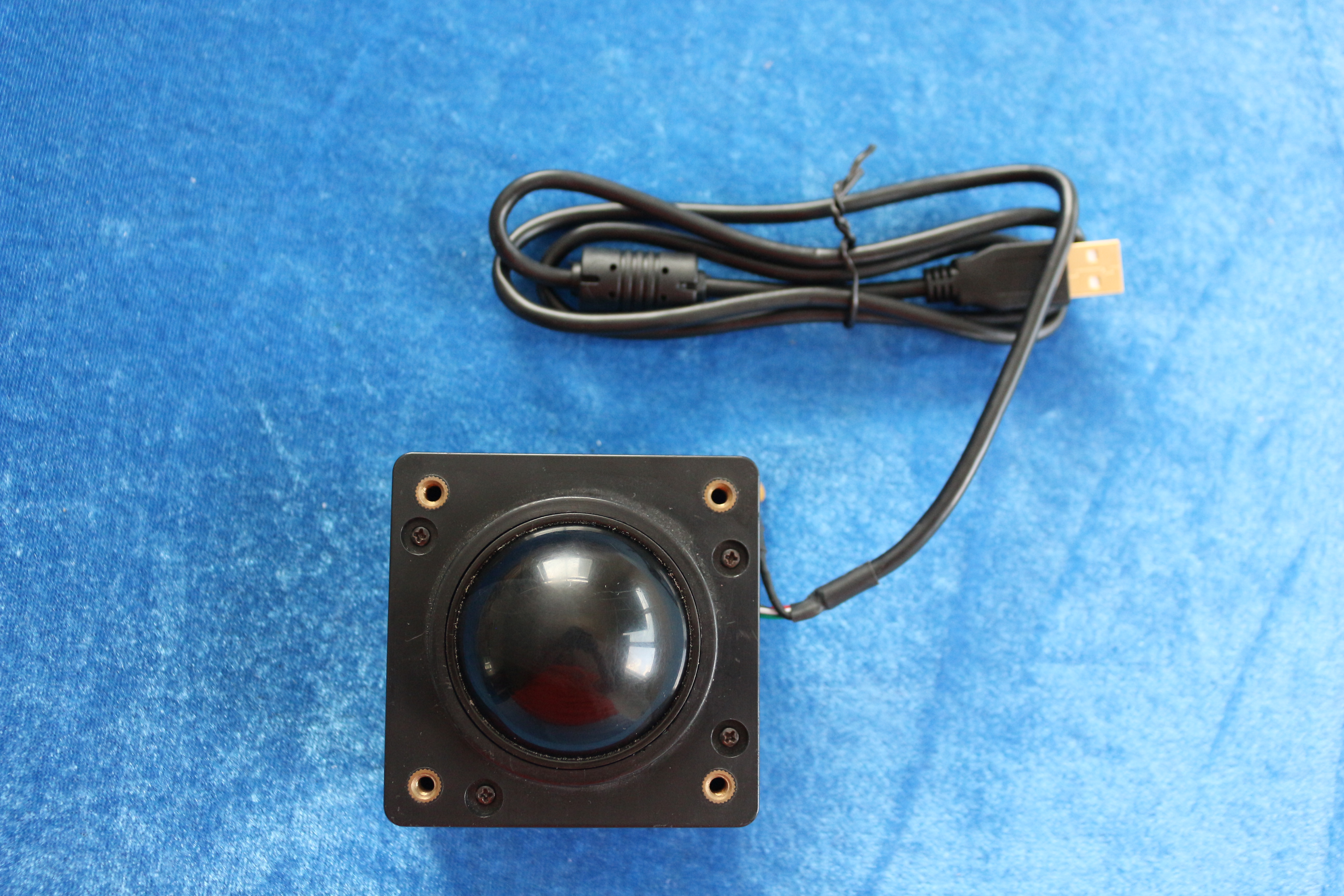

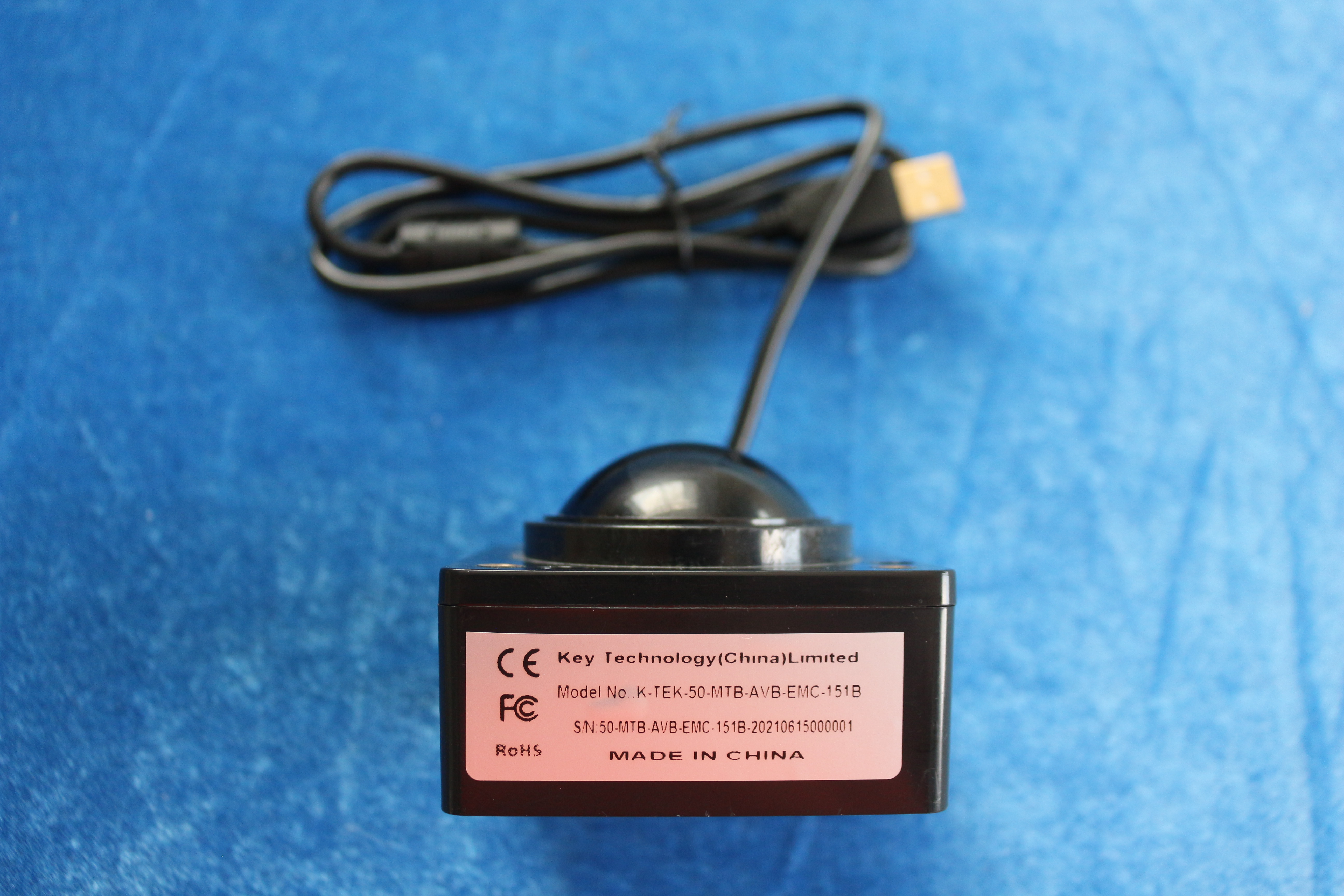

    400DPI Military EMC Trackball Module Rear Panel Mounted USB 2.0

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-50-MTB-AVB-EMC-151B
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    400DPI Military EMC Trackball Module Rear Panel Mounted USB 2.0

    Military Level EMC Trackball Module 400DPI Resolutions Rear Panel Mounted


    DESCRIPTION:

    1:50.0mm (2.0’') vandal proof IP65 mechanical trackball module,

    2:black harden resin ball with 400DPI resolutions

    3:designed to meet MIL-STD-461G and MIL-STD-810F standard, military level,

    4:with strong anti-interference ability, and low radiation etc.,

    5:USB 2.0 interface, with rear panel mounted solution.

    DIMENSIONS: 72.6mm x 72.6mm x 34.5mm


    TECHNICAL SPECIFICATION

    ITEMSPECIFICATION
    Mechanical DataBall diameter50mm/2.0’'
    Track ball lifespan> 5 years
    Dimension50.0 mm diameter for ball, 72.6mm x 72.6mm x 34.5mm
    InterfaceUSB2.0
    Weight0.3KGs
    ElectricalPower supply+5V DC +/-5%
    Protection levelIP65 (static)
    EMC StandardEN 55032:2015, EN 55035:2017
    Power consuming≤1.00W(dynamic)
    ≤0.2W(static)
    EnvironmentalOperating temperature-40ºC~+ 60º C
    Storage temperature-45ºC~+ 70ºC
    Operating RH30~90%
    Atmospheric pressure60~106Kpa.
    ReliableCertificatesRoHS compliant, CE and FCC certified
    MTBF>20000h
    MTTR< 30min
    OSAll Windows, Linux
    Packing DetailsEach unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

    APPLICATIONS

    MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;

    MILITARY: Army, Navy, Air force



    MAIN FEATURE

    Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.

    Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
