    SUS304 IP68 Wall Mounted Metal Keyboard With Mechanicall Trackball

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A343-MTB-MDT-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

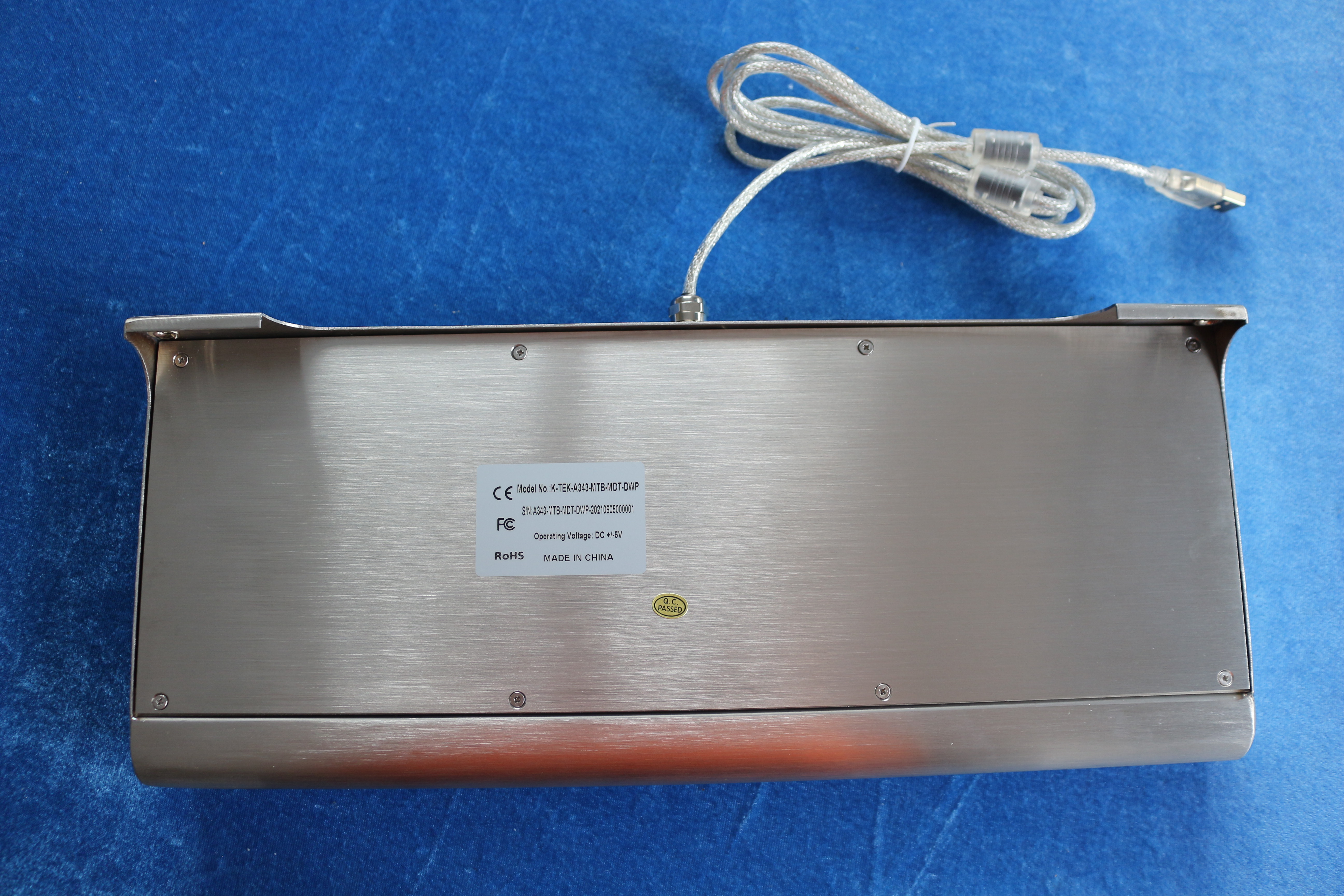

    SUS304 IP68 Wall Mounted Metal Keyboard With Mechanicall Trackball

    Wall Mounted Metal Keyboard IP68 Stainless Steel With Mechanicall Trackball


    DESCRIPTION:71 Keys Compact Format IP68 dynamic sealed and ruggedized Vandal Proof Stainless steel industrial keyboard , with IP65 rated 38.0mm mechanical trackball module with 400 DPI resolutions for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, wall mountable desktop version, flat desktop version optional. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.



    MECHANICAL DATA

    Actuator/keys:

    71 keys, super quality SUS304 brushed stainless steel

    Key top style:

    Protuberant rectangular keys,raised braille on keys are available
    Key Size:

    14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar

    Key travel:

    2.0mm long stroke.

    Actuation Force:

    1.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2N+/-0.1Nfor key 14.0mm x 28.0mm (pressure point)

    Switch life:

    More than 5 million of operations

    Stainless Steel Housing:

    super quality brushed stainless steel.

    G.W.:

    3.00KGs

    Dimensions:

    403.0mm x 165.0mm x 60.0mm (L x W x H)


    ELECTRICAL DATA :
    Supply Voltage:
    +5V DC +/-5%
    Current Rating:

    appr. 100mA

    EMC Standard:
    EN 55032:2015 EN 55035:2017
    Lifespan

    > 5 years

    Switch Contact Material:

    Carbon-on-Gold key switch technology PCB.

    Interface:

    PS2, USB available

    OS:

    Windows, Linux, Unix, Mac OSX, Vxworks, Android


    ENVIRONMENTAL ADAPTABILITY :
    Operating temperature:

    -20 to +60

    Storage temperature:
    -30 to +70
    Operating RH:
    30-90%
    Atmospheric pressure:
    60-106Kpa
    Saline mist:
    96 hours, IEC 60512-6
    Damp heat test at + 40oC:
    21 days, IEC 60512-6
    Dry heat test at + 85oC:
    10 days, IEC 60512-6

    RELIABILITY :
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP68(keyboard) +IP65(trackball)
    Vandal resistant IK08
    Key Lifespan >5 million actuations
    MTBF >20000H
    MTTR <30min

    MAIN FEATURE :
    - The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without taking the keyboard away from PC.
    - Imposing stainless steel design, specially designed keyboards meet the highest demands.
    - Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
    - An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise.
    - Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
    - Ease of customizing with multiple languages to accommodate foreign or custom variants.
    - Complete electronic modules including controller in close consultation with our customers are available.
    - PS/2, USB connection plug and play with PC via PC existing OS driver, no need to install separate driver.


    DIMENSIONS: 403.0mm x 165.0mm x 60.0mm (L x W x H)





    pls feel free to contact us.
