    USB Harden Resin Military Mechanical Trackball 400DPI Panel Mount Trackball

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M120-50-MTB-AVB-NV-151B
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    USB Harden Resin Military Mechanical Trackball 400DPI Panel Mount Trackball

    MODEL NO. : K-TEK-B120-50-MTB-AVB-151B

    DESCRIPTION:IP54 Vandal proof mechanical trackball with 50mm black hardened resin ball module with 400 DPI resolutions and 3 IP66 sealed and ruggedized mouse buttons for right/left clicking and scrolling up and down with ball rolling. High quality durable black titanium electroplated on the aluminum front panel to be scratch proof and withstand salt spray, with 4 sinking holes for top panel mounting solution. Military level, designed to meet MIL-STD-461G and MIL-STD-810F with strong anti-interference and low radiation ability.

    DIMENSIONS: 120.0mm x 141.0mm


    Specifications:

    ITEMSPECIFICATION
    MechanicalKey3 keys
    Key top styleRugged round Keys
    G.W.0.6KGs
    Key Travel1.5mm
    Ball diameter50.0mm
    Key switch lifespanmore than 1 Mio actuations
    Track ball lifespan> 10 Mio revolutions
    Actuation Force3.2N+/-0.1N
    DimensionFront plate : 120 x 141 mm
    InterfaceUSB
    ElectricalPower supply+5V DC +/-5%
    Protection levelIP54(trackball) + IP66( mouse buttons)
    EMC StandardEN 55032:2015, EN 55035:2017
    Power consuming≤1.00W(dynamic)
    ≤0.2W(static)
    EnvironmentalOperating temperature-40ºC~+ 60º C
    Storage temperature-45ºC~+ 70ºC
    Operating RH30~90%
    Atmospheric pressure60~106Kpa.
    ReliableCertificatesRoHS compliant, CE and FCC certified
    MTBF>20000h
    MTTR< 30min
    OSAll Windows, Linux
    Packing DetailsEach unit to a suitable brown box, suitable brown boxes to a standard export carton.

    APPLICATIONS

    MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;

    MILITARY: Army, Navy, Air force, Defense


    MAIN FEATURES:

    1. USB connection cables that plug directly into computer like normal mouse operations.

    2. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.

    3. Can be mounted horizontally, and vertically or any directions.

    4. Available 50mm diameter black hardened resin ball for smooth, quick and durable operation and precise cursor positioning

    5. No metal bearings inside, operation is very smooth, and easy without any noise.

    6. MIL-STD-461G and MIL-STD-810F standard, with strong anti-interference and low radiation ability, electromagnetic compatibility and wide temperature.

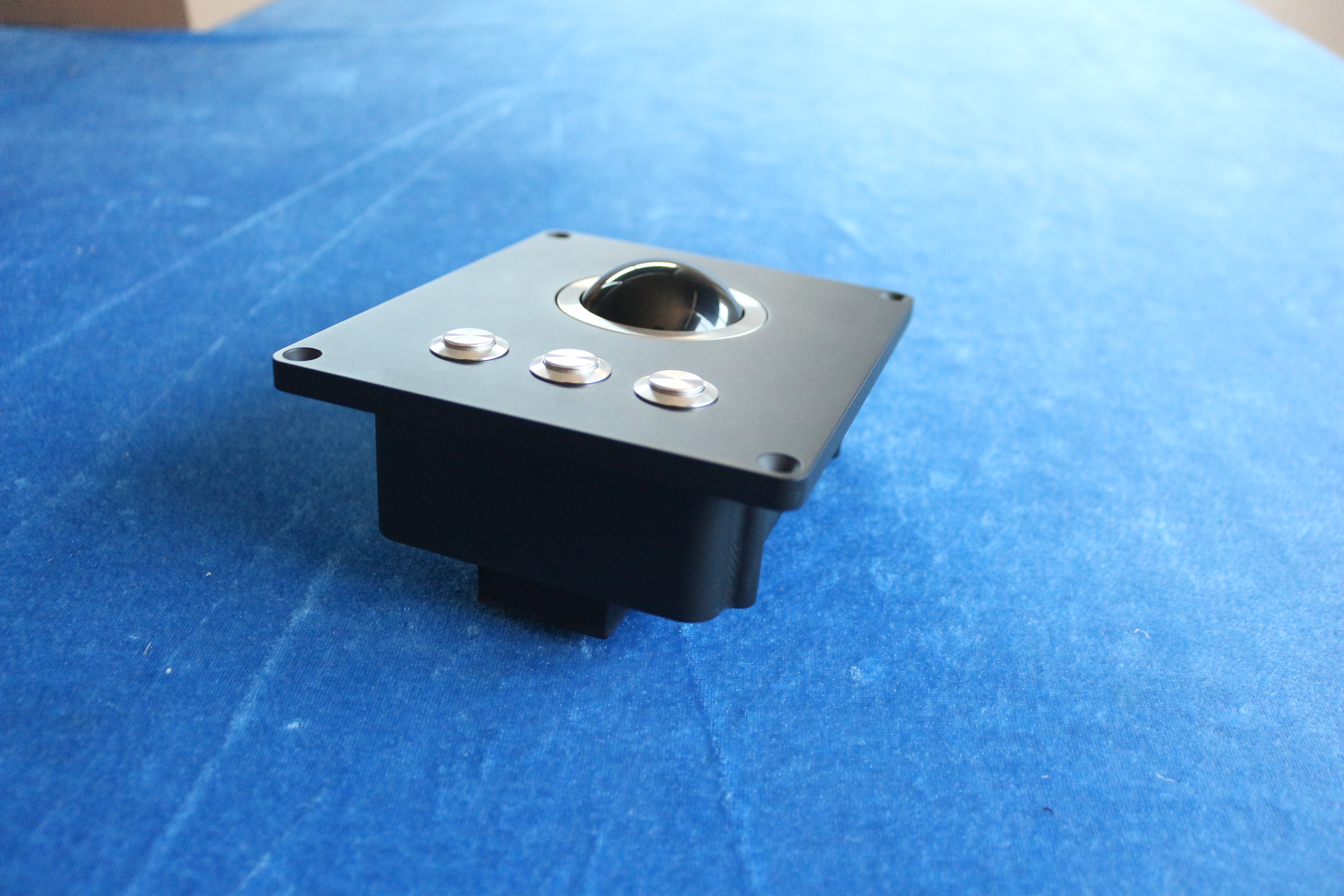

    Product Image




    Company




    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.

    Q: How long is your delivery time?

    A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.

    Q: Do you provide samples ?

    A: Yes, we could offer the sample of one quantity first before large quantity orders.

    Q: What is your terms of payment ?

    A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
    If you have another question, pls feel free to contact us
    .
