0.45mm Travel Metal Numeric Keypad Stainless Steel Dot Matrix With Backlight

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 0.45mm Travel Metal Numeric Keypad Stainless Steel Dot Matrix With Backlight from wholesalers

    Buy cheap 0.45mm Travel Metal Numeric Keypad Stainless Steel Dot Matrix With Backlight from wholesalers
    • Buy cheap 0.45mm Travel Metal Numeric Keypad Stainless Steel Dot Matrix With Backlight from wholesalers
    • Buy cheap 0.45mm Travel Metal Numeric Keypad Stainless Steel Dot Matrix With Backlight from wholesalers
    • Buy cheap 0.45mm Travel Metal Numeric Keypad Stainless Steel Dot Matrix With Backlight from wholesalers

    0.45mm Travel Metal Numeric Keypad Stainless Steel Dot Matrix With Backlight

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B100-90KP-AC-BL-RP-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    0.45mm Travel Metal Numeric Keypad Stainless Steel Dot Matrix With Backlight

    DESCRIPTION:

    16 keys compact format IP67 dynamic vandal proof Stainless Steel industrial dot matrix numeric keypad with fully sealed & ruggedized industrial metal dome PCB with socket on the back panel for connecting electronics controller, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with industrial backlight included (Red/blue/white/green optional), rear panel mounted. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

    APPLICATION:

    This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

    MECHANICAL DATA:

    Front plate

    1.5mm thickness super quality brushed stainless steel

    Back plateSuper quality SUS304 stainless steel
    Actuator/Keys

    16keys, super quality SUS304 brushed stainless steel

    Key top styleprotuberant rectangular keys, with laser engraved and etched legends and raised braille dots available.
    Key size

    14.0mm x 14.0mm for normal key, 14.0mm x 28.0mm for function keys

    Switching material

    Gold-on-Gold key switch technology PCB

    Actuation Force
    3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
    Key Travel

    0.45mm

    Switch life

    more than 1 million of operations

    Dimensions
    100.0mm x 90.0mm.
    G.W.

    0.69KGs


    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-20oC to +60oC
    Storage temperature: -30oC to +70oC
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.
    Saline mist: 96 hours, IEC 60512-6
    Damp heat test at + 40oC: 21 days, IEC 60512-6
    Dry heat test at + 85oC: 10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP67(front panel)
    Vandal resistant IK09
    Key Lifespan > 1 million actuation
    MTBF >20000H
    MTTR <30min

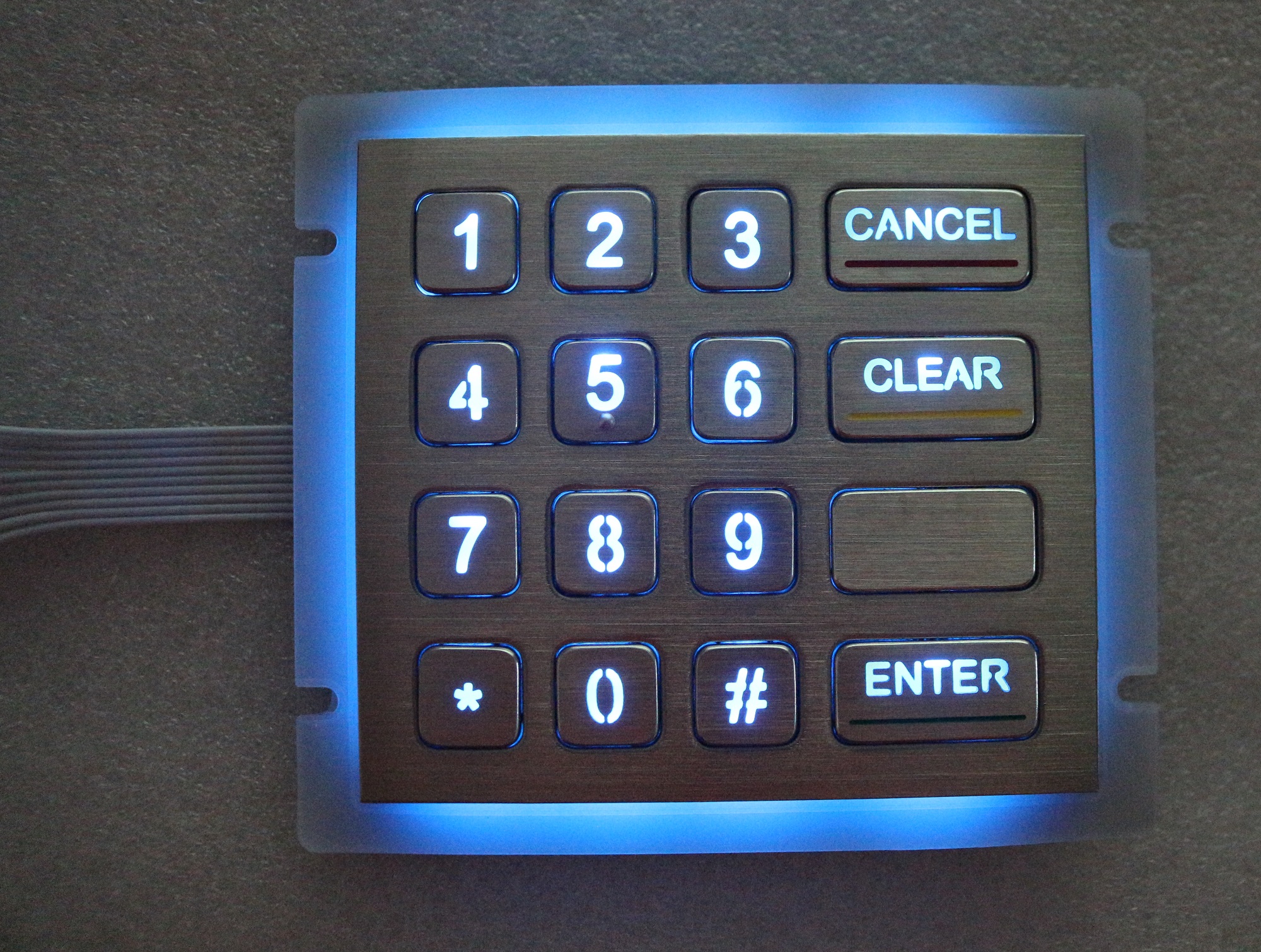

    Actual photos:
