    Compact Format Metal Keyboard With Trackball IP67 Panel Mount PS2 USB

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B255-25-OTB-FN-UT-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

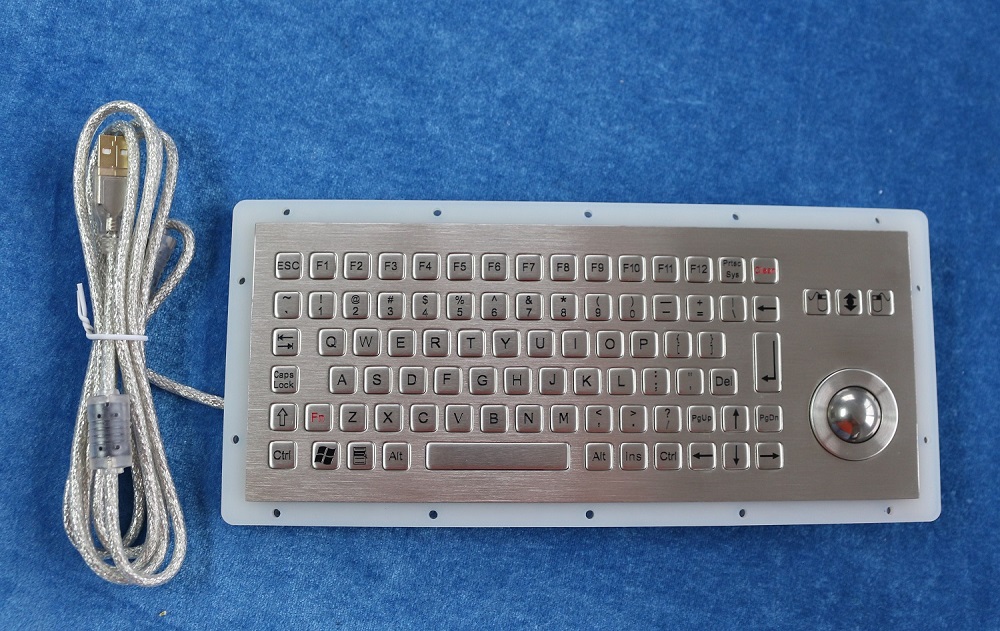

    Compact Format Metal Keyboard With Trackball IP67 Panel Mount PS2 USB

    Compact Format Design Metal Keyboard With Trackball IP67 Panel Mount


    DESCRIPTION: 86 Keys Compact Format IP67 dynamic washable Vandal Proof Stainless Steel industrial Keyboard with with IP68 dynamic rated washable 25mm stainless steel optical trackball module with 800DPI resolutions for fast and accurate position with extremely smooth operation, industrial metal PCB with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for stable and accurate input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation, stainless steel rear plate with mounting holes for rear panel mounting solution, one-piece water tight gasket for easy mounting & sealing tightly with cabinet. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

    DIMENSIONS: 255.0mm x 105.0mm (front panel)


    MAIN FEATURE

    The keyboard can be dynamic washable with water and other liquids, it can work well even under direct water pouring on the keyboard.
    Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
    Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
    Waterproof execution according to IP67 protection from top panel, rear stainless steel plate with mounting holes for easy tightly mounting to enclosure or panel.
    An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input without any noise. With firm tactile perception for comfortable operation.
    Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
    Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
    Ease of customizing with multiple languages, to accommodate foreign or custom variants.
    Complete electronic modules including controller in close consultation with our customers are available.
    PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.

    MECHANICAL DATA
    ELECTRICAL DATA
    Actuator/keys: 86 keys, 1.5mm thickness super quality SUS304 brushed stainless steel flat key.
    Key Size: 10.0mm x 10.0mm for normal keys, 10.0mm x 28.0mm for enter key, 10.0mm x 70.0mm for space bar.
    Key travel: 0.45mm
    Switch life: more than 1 million of operations.
    Front Plate: 1.2mm thickness super quality brushed stainless steel
    Back Plate: 1.5mm thickness brushed & oxidized aluminium
    Tracker ball: 25.1mm (1.0’) diameter, IP68 dynamic washable optical Trackball module with 800 DPI.
    G.W. 1.60KGs
    Dimensions: 255.0mm x 105.0mm (front panel) , 273.0mm x 123.0mm (back panel)
    Supply Voltage: +5V DC +/-5%
    Current Rating: appr. 100mA
    EMC Standard: EN 55032:2015, EN 55035:2017
    Lifespan > 5 years
    Switch Contact Material: metal dome PCB with Gold-on-Gold key switch technology
    Interface: PS2, USB available.
    OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-20to +60
    Storage temperature: -30to +70
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.
    Saline mist: 96 hours, IEC 60512-6
    Damp heat test at + 40
    : 21 days, IEC 60512-6
    Dry heat test at + 85
    : 10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP67 (front panel)
    Vandal resistant IK09
    Key Lifespan >1 million actuations
    MTBF >20000H
    MTTR <30min
