    Numeric Keys Stainless Steel Keyboard USB PS2 With 25.0mm Trackball

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B312-MTB-KP-FN-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

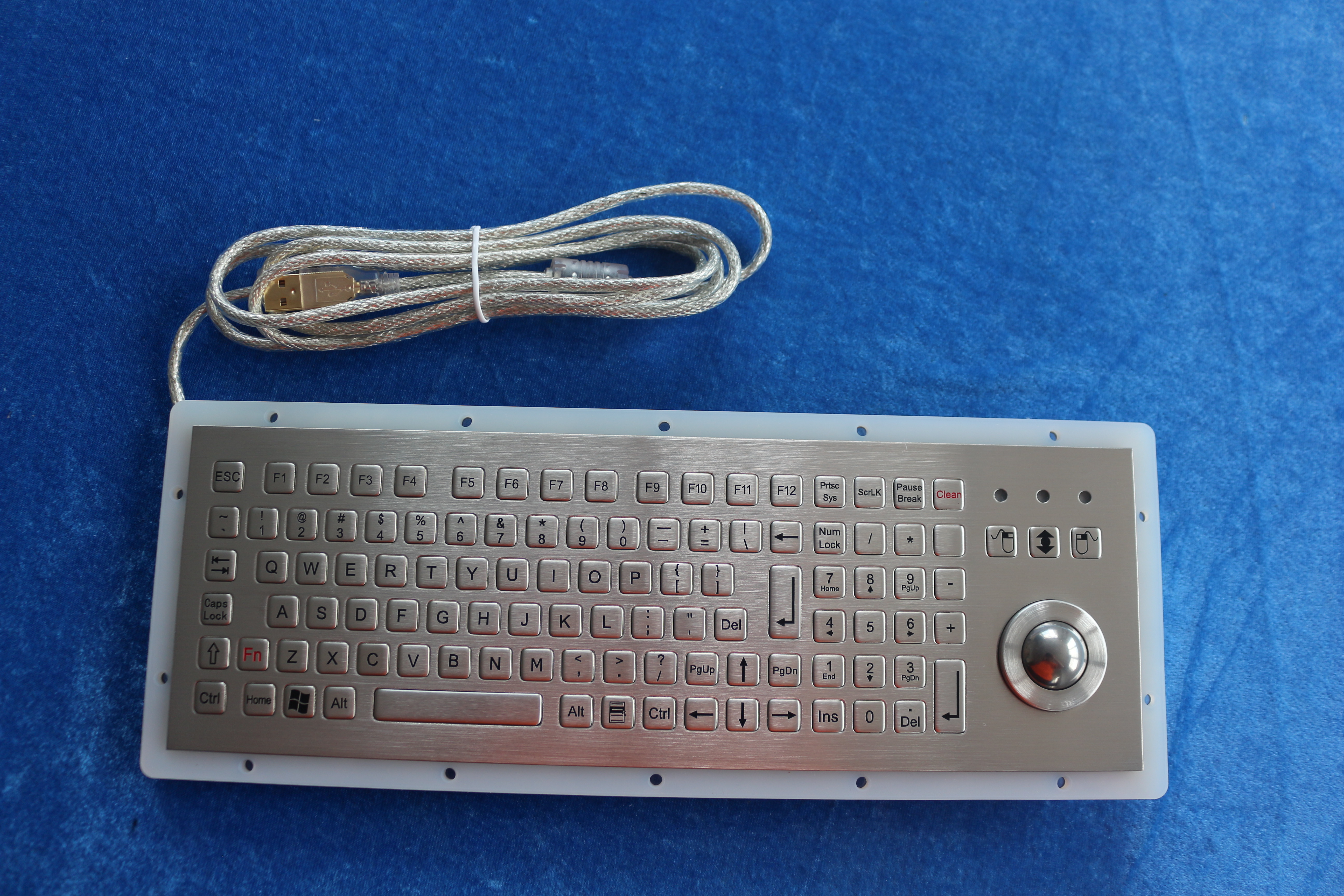

    Numeric Keys Stainless Steel Keyboard USB PS2 With 25.0mm Trackball

    DESCRIPTION:

    107 keys MINI ultra thin compact format horizontal IP67 dynamic water proof rated vandal proof stainless steel industrial keyboard with full functionalities, with IP65 dynamic rated 25.0mm stainless steel Mechanical trackball module with 400 DPI resolutions for fast and accurateposition with extremely smooth operation, industrial metal dome PCB electronics controller module with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with numeric keypad included and 12 function keys (F1, F2..F10, F11, F12) on the top line for easy operation. IP68 washable optical trackball module without metal parts inside, no rust risk and with anti-salt spray corrosion function, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, FN + CLEAN combination key to lock/disable the entire keyboard for easy cleaning and washing without needing to take away the keyboard from PC,rear stainless steel plate with water-tight sealing gasket for easy sealing and tightening with cabinet or panel, rear panel mounting
    solution.Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
    DIMENSIONS: 312.0mm x 105.0mm (front panel)

    MECHANICAL DATA
    ELECTRICAL DATA
    Actuator/keys: 107 keys, super quality SUS304 brushed stainless steel
    Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size: 10.0mm x 10.0mm for normal keys, 10.0mm x 28.0mm for enter key, 10.0mm x 70.0mm for space bar.
    Key travel: 0.45mm
    Actuation Force: 3.2N+/-0.1N for key 10.0mm x 10.0mm (pressure point) 4.0N+/-0.1N for key 1..0mm x 28.0mm (pressure point)
    Switch life: more than 1 million of operations.
    Front Plate: 1.5mm thickness super quality brushed stainless steel
    Back Plate: 1.5mm thickness brushed & oxidized aluminium
    G.W.: 1.60KGs
    Dimensions: 312.0mm x 105.0mm (front panel) , 330.0mm x 123.0mm (back panel)
    Supply Voltage: +5V DC +/-5%
    Current Rating: 300mA
    EMC Standard: EN 55032:2015, EN 55035:2017

    Lifespan > 5 years
    Switch Contact Material: Gold-on-Gold key switch technology PCB.
    Interface: PS2, USB available.
    OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-20℃ to +60℃
    Storage temperature: -30℃ to +70℃
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.
    Saline mist: 96 hours, IEC 60512-6
    Damp heat test at + 40℃: 21 days, IEC 60512-6
    Dry heat test at + 85℃: 10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP67 (front panel)
    Vandal resistant IK09
    Key Lifespan >1 million actuations
    MTBF >20000H
    MTTR <30min

    APPLICATION
    This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
