IK09 Panel Mounted Keyboard IP67 SUS304 With Optical Trackball

    Buy cheap IK09 Panel Mounted Keyboard IP67 SUS304 With Optical Trackball from wholesalers

    Buy cheap IK09 Panel Mounted Keyboard IP67 SUS304 With Optical Trackball from wholesalers
    • Buy cheap IK09 Panel Mounted Keyboard IP67 SUS304 With Optical Trackball from wholesalers
    • Buy cheap IK09 Panel Mounted Keyboard IP67 SUS304 With Optical Trackball from wholesalers

    IK09 Panel Mounted Keyboard IP67 SUS304 With Optical Trackball

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B312-OTB-KP-FN-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

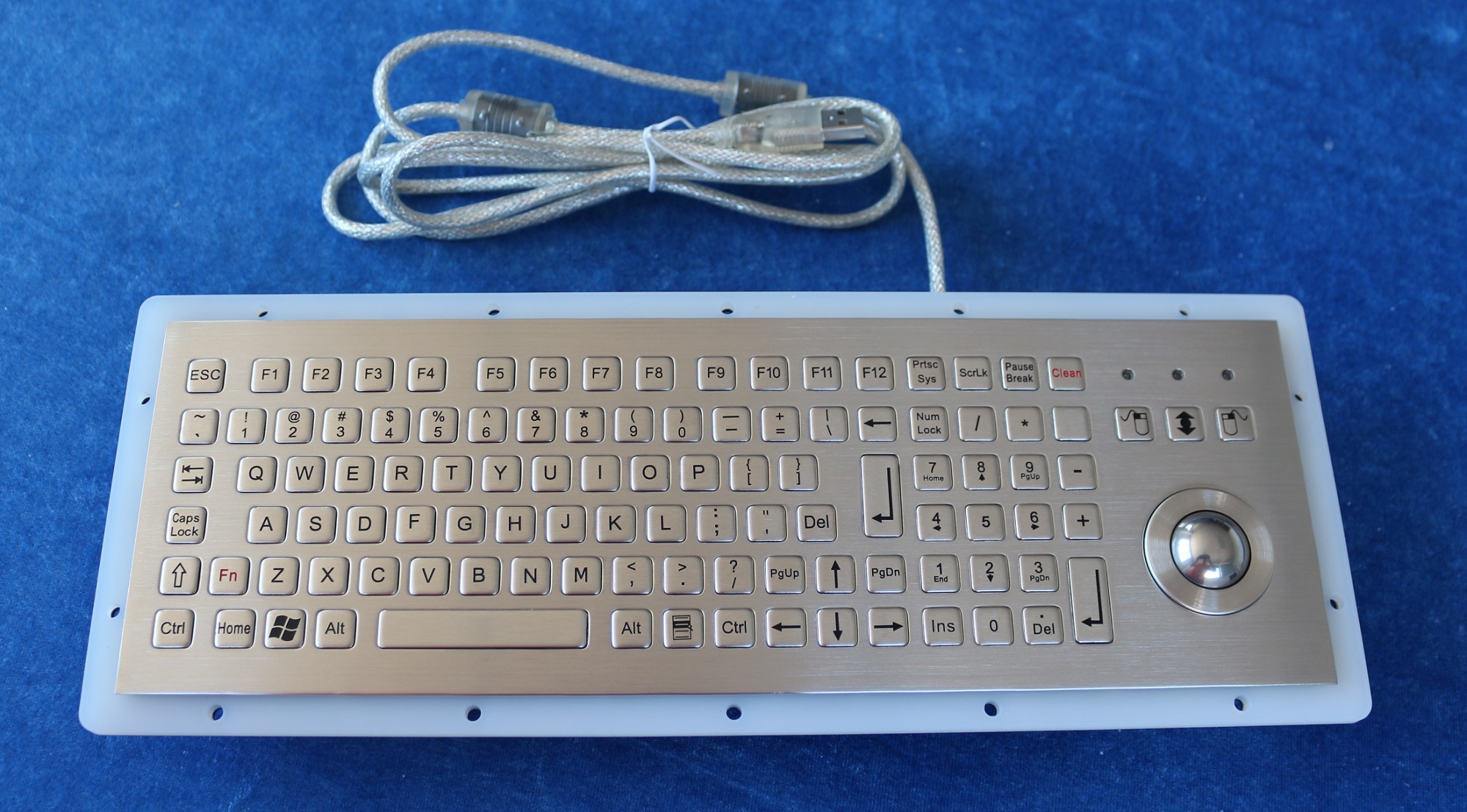

    IK09 Panel Mounted Keyboard IP67 SUS304 With Optical Trackball



    DIMENSIONS: 312.0mm x 105.0mm (top panel)

    MECHANICAL DATA
    ELECTRICAL DATA
    Actuator/keys: 107 keys, super quality SUS304 brushed stainless steel
    Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size: 10.0mm x 10.0mm for normal keys, 10.0mm x 28.0mm for enter key, 10.0mm x 70.0mm for space bar.
    Key travel: 0.45mm
    Actuation Force: 3.2N+/-0.1N for key 10.0mm x 10.0mm (pressure point) 4.0N+/-0.1N for key 1..0mm x 28.0mm (pressure point)
    Switch life: more than 1 million of operations.
    Front Plate: 1.5mm thickness super quality brushed stainless steel
    Back Plate: 1.5mm thickness brushed & oxidized aluminium
    G.W.: 1.60KGs
    Dimensions: 312.0mm x 105.0mm (front panel) , 330.0mm x 123.0mm (back panel)
    Supply Voltage: +5V DC +/-5%
    Current Rating: 300mA
    EMC Standard: EN 55032:2015, EN 55035:2017

    Lifespan > 5 years
    Switch Contact Material: Gold-on-Gold key switch technology PCB.
    Interface: PS2, USB available.
    OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-20℃ to +60℃
    Storage temperature: -30℃ to +70℃
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.
    Saline mist: 96 hours, IEC 60512-6
    Damp heat test at + 40℃: 21 days, IEC 60512-6
    Dry heat test at + 85℃: 10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP67 (front panel)
    Vandal resistant IK09
    Key Lifespan >1 million actuations
    MTBF >20000H
    MTTR <30min

    APPLICATION
    This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
