    Metal Sealed Stainless Steel Keyboard Dynamic Washable SUS304 Brushed

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B320KP-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Metal Sealed Stainless Steel Keyboard Dynamic Washable SUS304 Brushed

    DESCRIPTION:

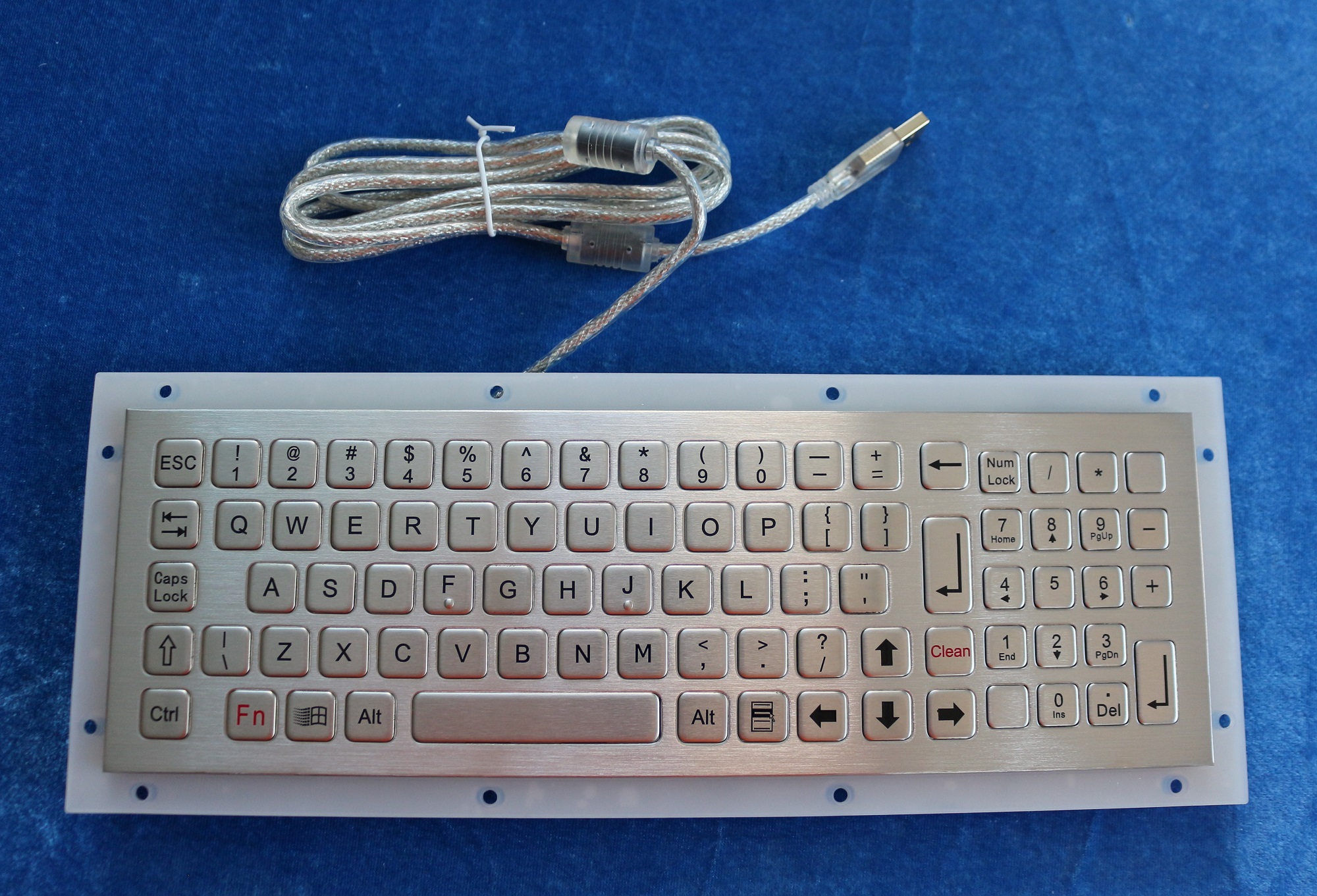

    83 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard with industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with integrated numeric keypad, rear panel mount with mounting holes. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion

    DIMENSIONS: 320.0mm x 105.0mm (front panel)

    MECHANICAL DATAELECTRICAL DATA
    Actuator/keys:83 keys, super quality SUS304 brushed stainless steel
    Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
    Key travel: 0.45mm short stroke.
    Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point) ,4N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
    Switch life: more than 1 million of operations.
    Stainless Steel Housing: super quality brushed stainless steel.
    G.W.: 1.40KGs
    Supply Voltage: +5VDC +/-5%
    Current Rating: appr. 30mA
    EMC Standard: EN 55032:2015 ; EN 55035:2017
    Lifespan > 5 years
    Switch Contact Material: Carbon-on-Gold key switch technology PCB.
    Interface: PS2, USB available
    OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-20oC to +60oC
    Storage temperature: -30oC to +70oC
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.
    Saline mist: 96 hours, IEC 60512-6
    Damp heat test at + 40oC: 21 days, IEC 60512-6
    Dry heat test at + 85oC: 10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP67(front panel)
    Vandal resistant IK09
    Key Lifespan >1 million actuations
    MTBF >20000H
    MTTR <30min


    MAIN FEATURE
    The keyboard can be dynamic washable with water and other liquids, it can work well even with direct water pouring.
    The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the keyboard away from PC.
    Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
    Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

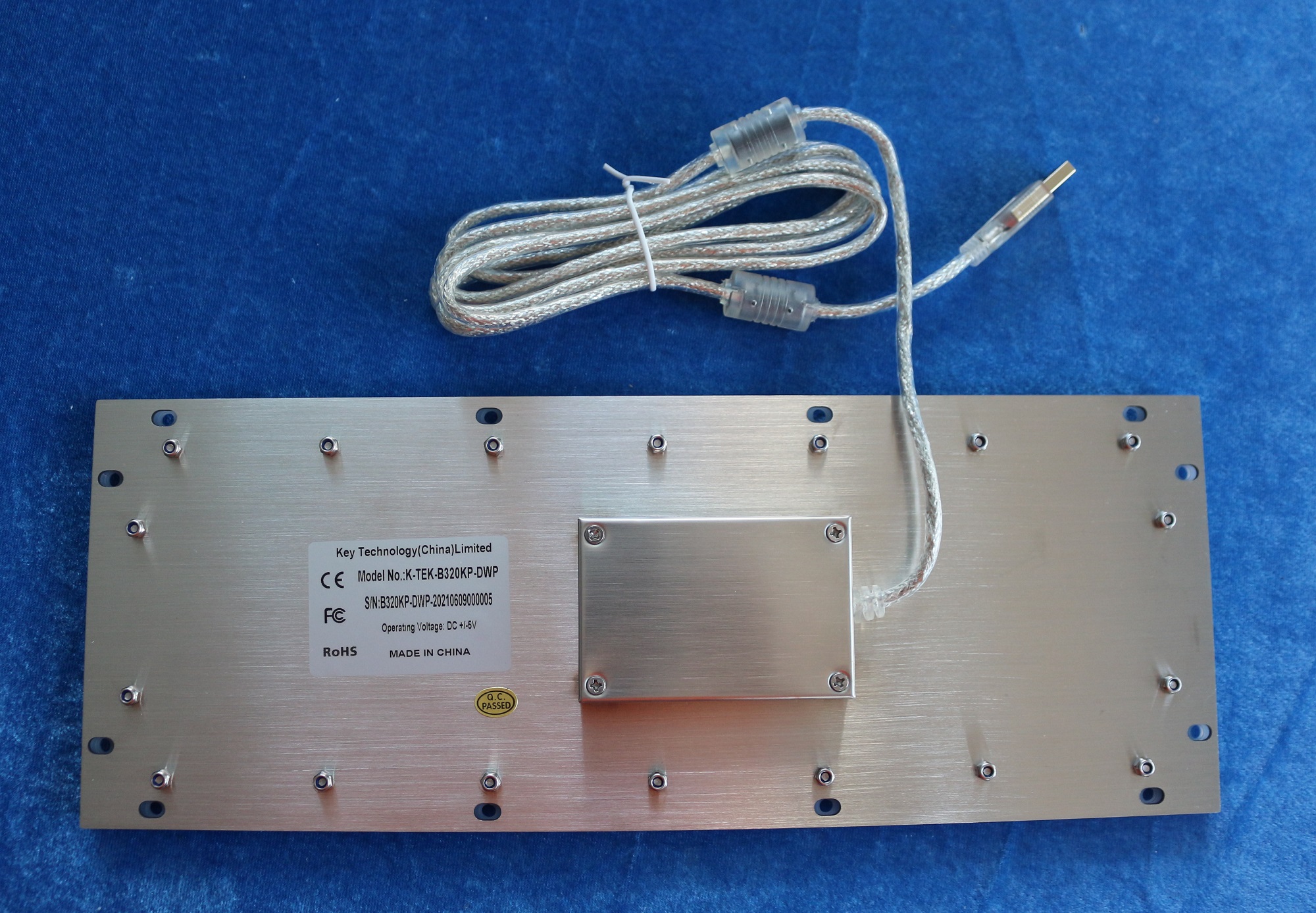

    Waterproof execution according to IP67 protection from top panel, top stainless steel plate with flat keyboard surface for easy cleaning & threaded bolts for easy tightly mounting to enclosure or panel.
    An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation
    Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
