    108 keys Industrial Membrane Keyboard Desktop Version IP68 washable

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-D399TP-KP-FN-DT
    Certification : CE, FCC, ROHS
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

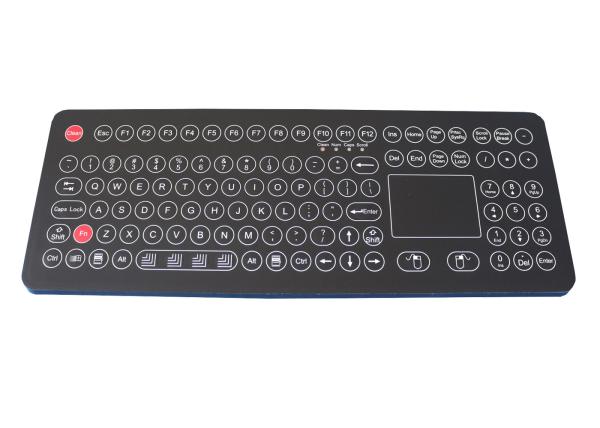

    108 keys Industrial Membrane Keyboard Desktop Version IP68 washable

    IP68 Industrial Membrane Keyboard Desktop Version With Touchpad

    DESCRIPTION:

    108 keys IP68 dynamic rated washable industrial membrane keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with excellent good tactile feeling for reliable data input, with Clean key for easy cleaning via lock/disable the entire keyboard without needing to take keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized and backed with 3.0mm aluminum plate with sand blasting & oxygenation treatment, stand alone movable desk top version with robust polycarbonate case.


    MECHANICAL DATA

    Key

    108

    Key switch Technology

    metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys

    Actuation Force:

    2.8+/-0.1N for key 13.0mm x 13.0mm (press point)

    Key travel

    0.45mm

    Key switch Lifetime

    1 mil. operations

    Protection Level

    IP68(front panel)

    Mounting Type

    stand alone desk top

    Operating Temperature

    -20 °C to +60 °C

    Colors

    White,black color optional

    G.W.

    1.30KGs

    Key Dimensions
    (print area)

    13.0mm x 13.0mm

    Dimensions

    399.0mm x 150.0mm x 19.3mm (L x W x H)

    TOUCHPAD

    Touchpad cover

    Composite

    Motion Detection

    Method

    capacitive

    Resolution

    40 counts / mm

    More than Lifetime 10 million strokes

    Mutual Capacitance sensing

    X/Y position
    sensing resolution

    40 counts/mm

    X/Y position reporting

    Relative

    Output
    (self-detectable depending on cable)

    PS2 or USB

    Tracking speed

    Maximum 1,016 m/sec

    Power supply voltage

    5 V DC ±0.25V

    Current rating
    (active mode)

    17 mA


    ELECTRICAL DATA:
    Supply Voltage: +5V DC +/- 5%
    Current Rating: appr. 50mA
    EMC Standard: EN 55032:2015; EN 55035:2017
    Lifespan> 5 years
    Interface: PS2, USB available.
    OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).


    RELIABILITY
    RoHS , CE, FCC
    Protection Level: IP68(front panel)
    Key Lifespan >1 million actuations
    Touchpad lifespan > 10 million of times
    MTBF >20000H
    MTTR <30min
