    Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-D343TP-FN-DT
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad

    DESCRIPTION:

    81 keys compact format IP68 dynamic rated membrane industrial keyboard with function keys on the upper line and IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN and CLEAN key for easy cleaning via lock/disable the entire keyboard without needing to take away the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, back side sealed with ruggedized and vandal proof stainless steel plate for stand alone DESK TOP VERSION.

    MECHANICAL DATA:
    Number of Keys81
    Key switch Technologymetal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys
    Actuation Force2.8N for key 11.0mm x 11.0mm (press point)
    Key Travel0.45mm
    Key switch Lifetime3 mil. operations
    Protection LevelIP68
    Mounting TypeTop panel mounting or Desk Top.
    Operating Temperature-20 °C to +50 °C;
    Colors2 (White or Black)
    G.W.2.0KGs
    Key Dimensions11.0mm x 11.0mm
    Dimensions368.0mm x 150.0mm x 20.2mm (L x W x H)
    ELECTRICAL DATA:
    Supply Voltage:+5V DC +/- 5%
    Current Rating:appr. 50mA
    EMC Standard:EN 55032:2015; EN 55035:2017
    Lifespan> 3 years
    Interface:PS2, USB available.
    OS:All Windows, Linux, Unix, Mac OSX, Vxworks, Android
    RELIABILITY
    RoHS , CE, FCC
    Protection Level:IP68
    Key Lifespan>1 million actuations
    Touchpad lifespan> 5 million of times
    MTBF>20000H
    MTTR<30min

    More Views:

    Front View (Black Membrane)

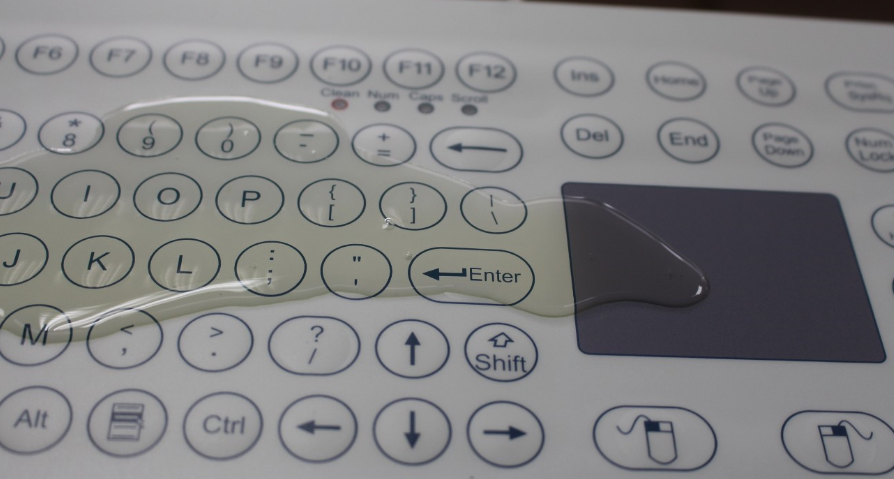

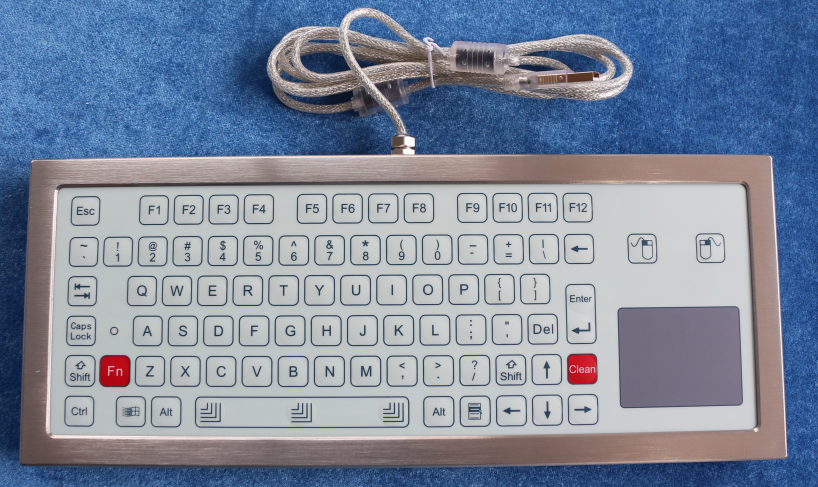

    Front View (White Membrane)

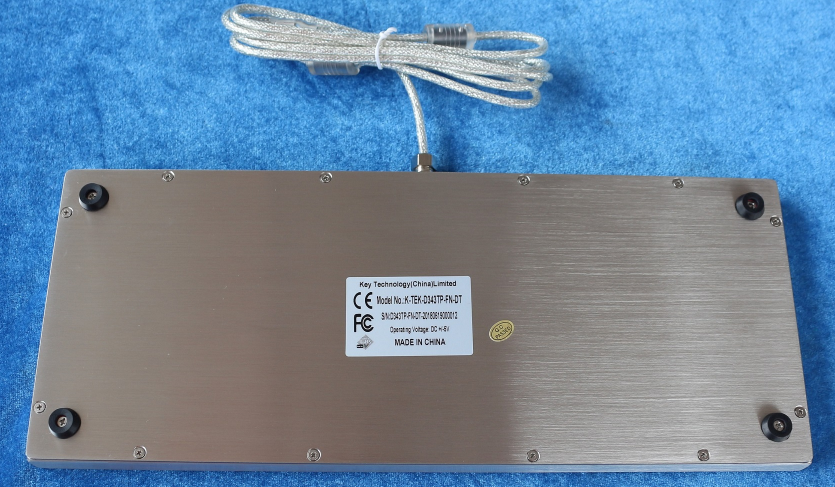

    Back View
