    Silicone Waterproof Touchpad Keyboard 89 Keys IP67 Dynamic Sealed

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-M276TP-FN-BL-ML-OEM
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Silicone Waterproof Touchpad Keyboard 89 Keys IP67 Dynamic Sealed

    Silicone Waterproof Touchpad Keyboard Military Level With Adjustable Backlight

    Special Features:

    1: 89 keys IP67 dynamic sealed and ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities with sealed and ruggedized tough touchpad for fast and accurate cursor position
    2: Special industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise
    3: FN + Clean key to lock/disable the keyboard for easy cleaning without taking the keyboard from PC

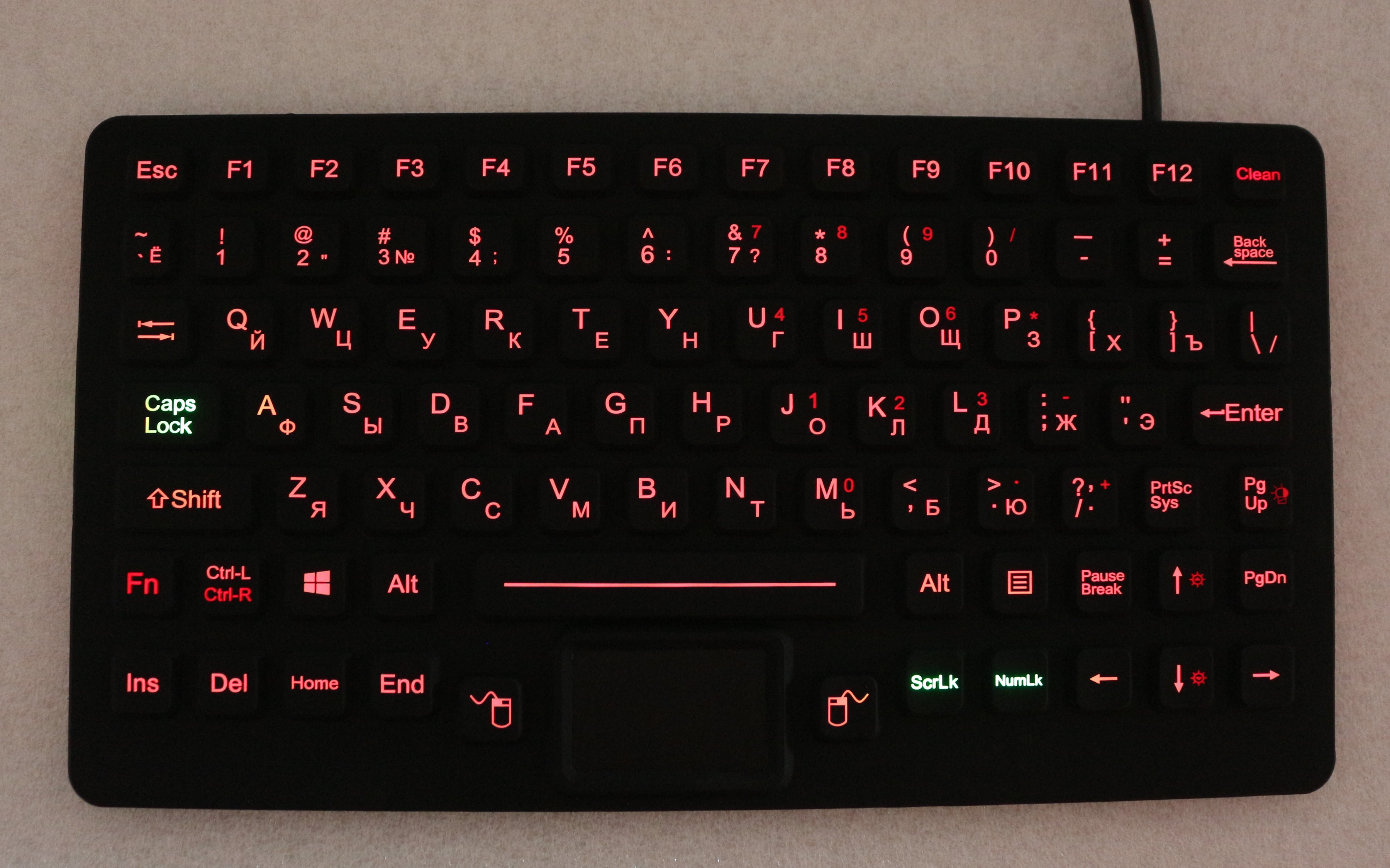

    4: Top panel mounted. Adjustable industrial backlight included, military level
    5: Durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment
    MECHANICAL DATA
    Key: 89 keys
    Key top style: Protuberant rectangular keys with tactile feeling.
    Touchpad cover: Composite
    More than Lifetime 10 million strokes
    Mutual Capacitance sensing
    X/Y position sensing resolution: 40 counts/mm
    X/Y position reporting: Relative
    Output (self-detectable depending on cable): PS2 or USB
    Tracking speed: Maximum 1,016 m/sec
    Power supply voltage: 5 VDC ± 0.25V
    Current rating (active mode): 17 mA
    Key Size: 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key
    G.W.: 0.80KGs
    ELECTRICAL DATA
    Supply Voltage: +5V DC +/-5%
    Current Rating: 50mA (non-backlight) , 300mA (with backlight on)
    EMC Standard: EN 55032:2015
    EN 55035:2017
    MIL-STD-810F (wide temperature, shock, vibration, humidity)
    Lifespan> 5 years
    Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
    Interface: PS2, USB available.
    Cable length: Standard 2.0m, customized length available.
    OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature:-40℃ to +85℃
    Storage temperature: :-45℃ to +90℃
    Saline mist:96h, IEC60512-6
    Damp heat test at +40℃: 21 days, IEC 60512-6
    Dry heat test at +85℃: 10 days, IEC 60512-6
    Operating RH: 100%
    Atmospheric pressure: 60-106Kpa
    Shock: 3x11 ms pulses of 50g on each of 3 axes
    Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
    Flammability
    PRINTED CIRCUIT BOARD: 94 V-0 SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 HB
    RELIABILITY
    RoHS , CE, FCC
    Protection Level: IP67
    Key Lifespan >5 million actuations
    MTBF >20000H
    MTTR <30min

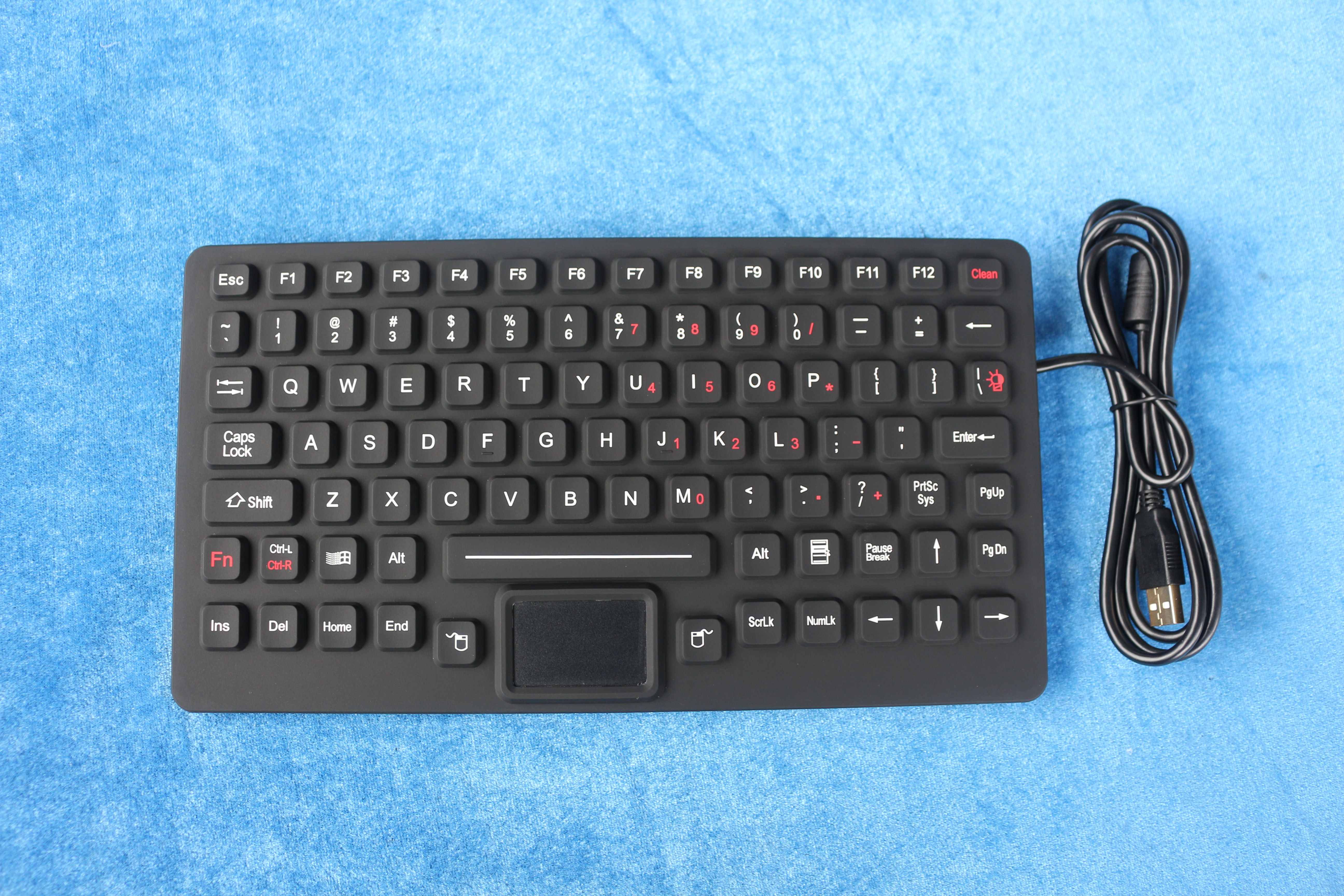

    More Photo:
