    IP65 Military Trackball Module Three Round Keys USB Trackball Mouse Anti Vibration

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B110-50-MTB-AVB-ML-BT
    Certification : CE, FCC, ROHS, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2-3 weeks upon payment confirmed
    • Product Details
    • Company Profile

    IP65 Military Trackball Module Three Round Keys USB Trackball Mouse Anti Vibration

    Quick Details:

    1. IP65 static vandal proof stainless steel military mechanical trackball

    2. 50.8mm mechanical hardened resin trackball

    3. IP65 static mechanical trackball module with 200~2000 DPI

    4. Military level with wide temperature of -40°C to 60°C

    5. With strong Anti-vibration

    6. Front panel mounted solution with threaded bolts

    7. 110.0mm x 126.0mm (front panel)


    Descriptions:

    1. IP65 vandal proof stainless steel trackball with 50.8mm black hardened resin ball

    2. IP65 rated 50.8mm mechanical trackball module with adjustable resolutions functionalities from low to high to meet different application requirements

    3. Sealed stainless steel 3 mouse buttons for right/left clicking and scrolling up and down, with front panel mounting solutions.

    4. With durable high quality black titanium electroplated on the stainless steel surface

    5. Military level.


    TECHNICAL SPECIFICATION

    ITEMSPECIFICATION
    MechanicalKey3 keys, quality brushed stainless steel
    Key top styleRugged round Keys
    Front PlateBlack titanium electroplated on the stainless steel surface
    Key Travel1.4mm
    Ball diameter50.8mm
    Key switch lifespanmore than 1 Mio actuations
    Track ball lifespan> 10 Mio revolutions

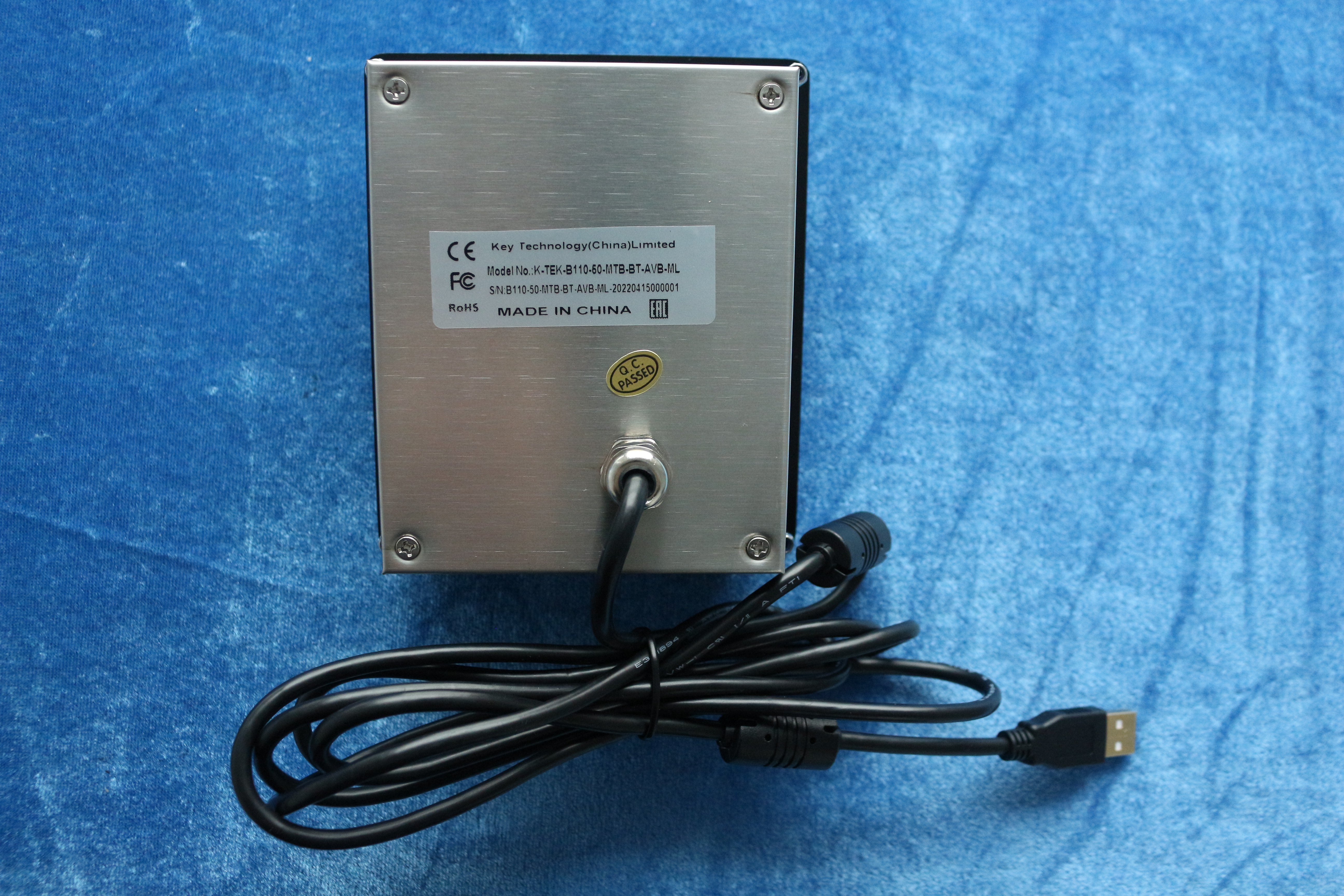

    Back Metal CoverRear side integrated electronics protected by a metal cover
    Actuation Force3.2N+/-0.1N
    Dimension

    Dimensions with 50.8mm track ball,

    Front plate (L x Wx H): 110.0 x 126.0 x 45.0 mm

    InterfaceUSB 1.1
    ElectricalPower supply+5V DC +/-5%
    Protection levelIP65 (front panel), IK09
    EMC StandardEN 55032:2015, EN 55035:2017
    Power consuming≤1.00W(dynamic)
    ≤0.2W(static)
    EnvironmentalOperating temperature-40ºC~+ 60º C
    Storage temperature-45ºC~+ 70ºC
    Operating RH30~90%
    Atmospheric pressure60~106Kpa.
    ReliableCertificatesRoHS compliant, CE and FCC certified, ESD
    MTBF>20000h
    MTTR< 30min
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
    Packing DetailsEach unit to a suitable brown box, suitable brown boxes to a standard export carton.


    APPLICATIONS:

    MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;

    MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc

    MILITARY: Army, Navy, Air force

    INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing

    environments, warehouses

    MARINE: ship, boat, navigation consoles etc.

    OTHER INDUSTRIES


    Main Features:

    1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.

    2. All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.

    3. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast

    4. Retaining one-pixel positioning accuracy when the ball is moved slowly.

    5. Can be mounted horizontally, and vertically or any directions.

    6. No metal bearings inside, operation is very smooth, and easy without any noise.
